10. CHECK AND ADJUSTMENTS

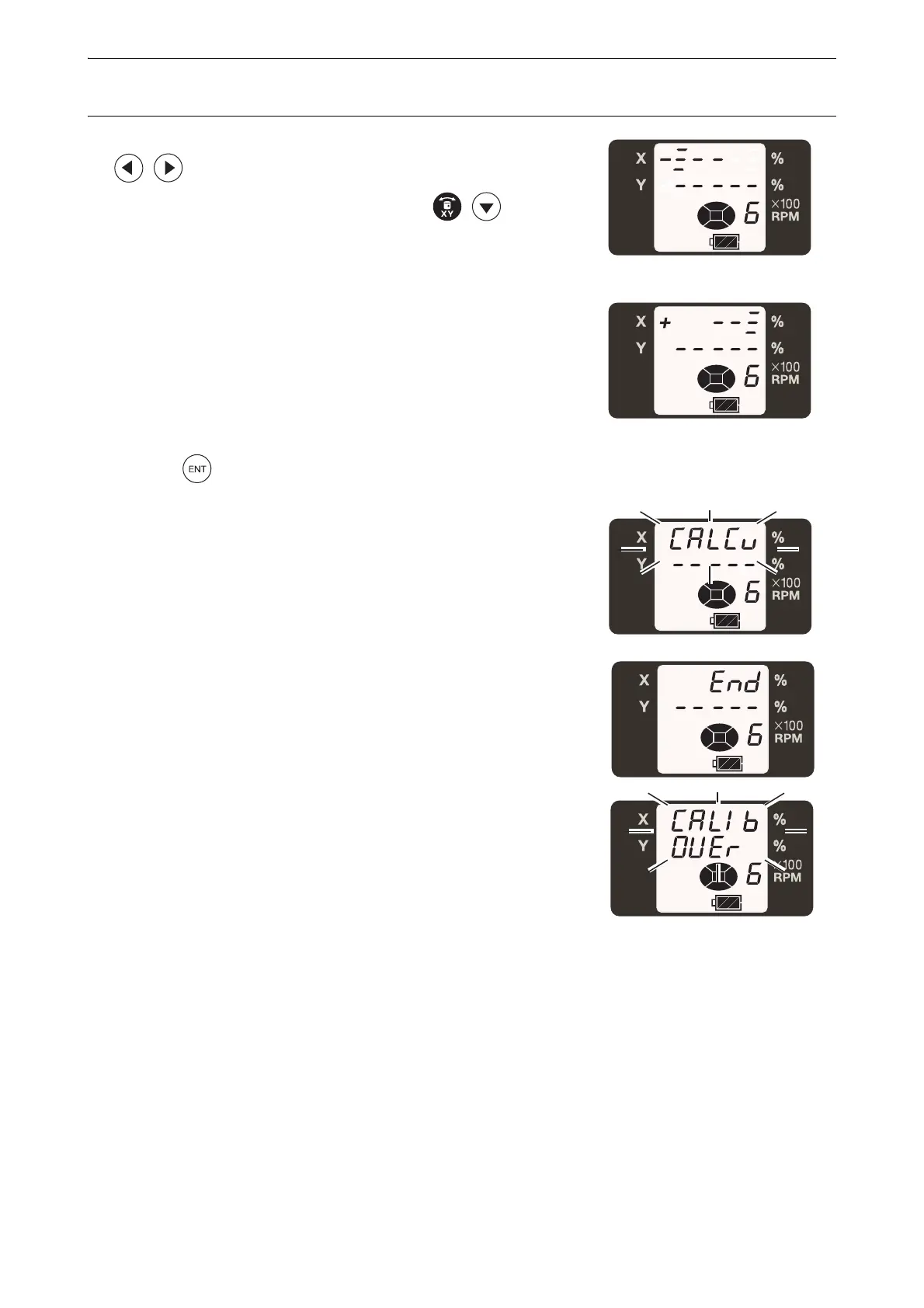

PROCEDURE Adjusting
1. According to step 8 of the horizontal rotation check, press the
keys* to move the laser beam between X1 and X2.
When adjusting the Y axis direction, press the keys.
 *Display during arrow key operation
2. Press the key.
RL-HV is calculating the correction value. Do not touch the RL-HV
until [End] is displayed. (If you touch it, you will need to readjust.)
• Adjustment for X axis is complete.
Turn off the power.
• Exceeding the range of adjustment.
"9. ERROR DISPLAYS"
OR
