Topcon RM-8800 - On-Line Data Communication

41
PREPARATIONS
ON-LINE (DATA COMMUNICATION)
In the “ON-LINE” screen, computer lensmeter data receiving format, communication format
and communication speed can be changed.
1 In the “INITIAL MENU SCREEN”, press the and move the cursor
to “ON-LINE”.
2 Press the , and the monitor screen is changed to the “ON-LINE SCREEN”.

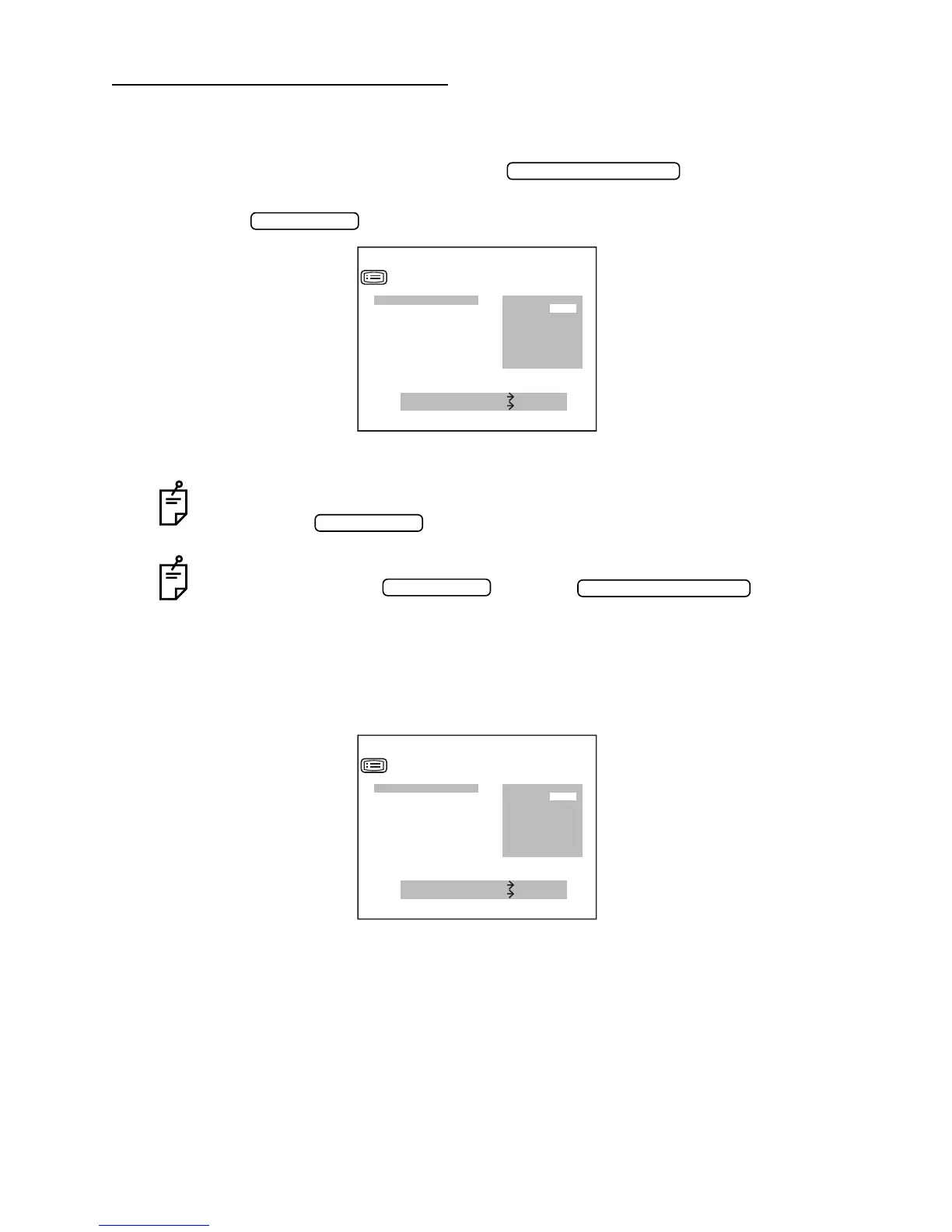

COMPUTER LENSMETER DATA RECEIVING FORMAT
The RS232C format for receiving computer lensmeter data can be set. Before shipment, it is
set to “NO” (no receiving).
1 In the “INITIAL MENU SCREEN”, choose “ON-LINE” and get the “ON-LINE SCREEN”.
• Close the “ON-LINE SCREEN” and call the “INITIAL MENU SCREEN”.
• Move the cursor to “EXIT”.
• Press the .
To return to the previous item in the screen:
• While pressing the , press the .
MEASUREMENT SWITCH
PRINT SWITCH
MEASURE SWITCH ITEM
PRINT SWITCH SELECT
CL INPUT
DATA FORMAT
BAUD-RATE
OUTPUT DATA TYPE
EXIT
ON-LINE
NO
OLD
NEW
STD1
R-ID
W-ID
PRINT SWITCH
PRINT SWITCH
MEASUREMENT SWITCH
MEASURE SWITCH ITEM
PRINT SWITCH SELECT
CL INPUT
DATA FORMAT
BAUD-RATE
OUTPUT DATA TYPE
EXIT
ON-LINE
NO
OLD
NEW
STD1
R-ID
W-ID
