ASSEMBLY PROCEDURE
ASSEMBLY PROCEDURE

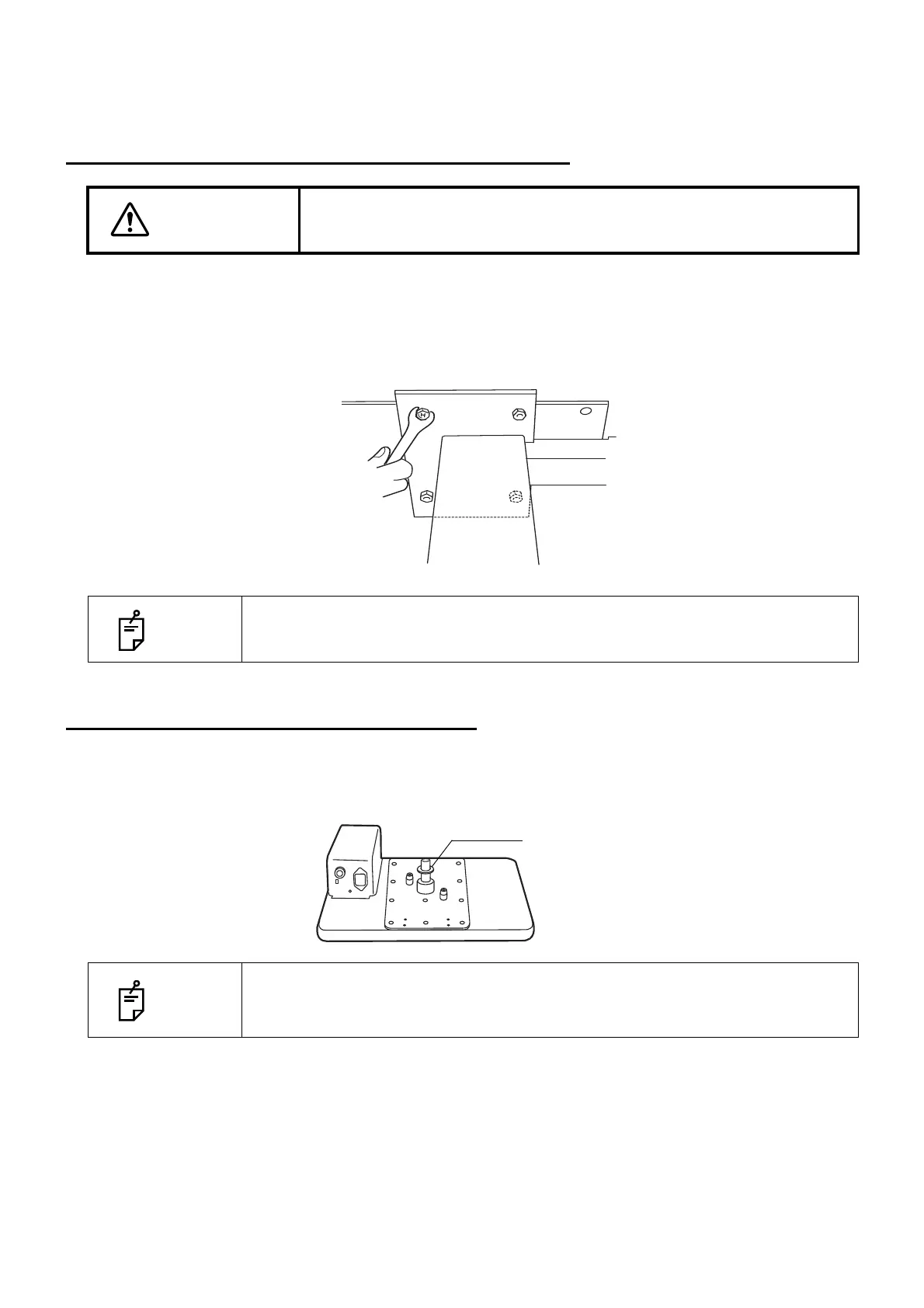

SECURING THE INSTRUMENT TYPE TABLE TOP
FITTING TO AUTOMATIC INSTRUMENT TABLE AIT-15/AIT-16
1 Place the tabletop on the instrument table, and secure it with the 4 bolts attached to the instru-
ment table. To reverse the direction of the instrument table, remove the power supply from the
bottom of the table top and secure it on the opposite side.
SECURING THE UNIT TYPE TABLE TOP
1 Remove the plastic washer from the unit type table top, which is taped to the shaft assembly.
2 Insert the plastic washer, together with the shaft, into the cavity for the ophthalmic unit arm.
CAUTION
To prevent falling during use and movement, secure each unit.
NOTE
Connect the power cable to the table outlet and power supply of the instrument table.
Place the excess cable inside the cover, and attach the cover.
NOTE
In the unit type table top, the power supply is fitted to attach the ophthalmic unit on the
right hand side. When attaching the ophthalmic unit on the left-hand side, remove the
power supply and reattach it to the right hand side (with 4 screws).
Washer
