ASSEMBLY PROCEDURE
SECURING THE TONOMETER MOUNT SO-TM1 (OPTIONAL ACCESSORY)
Depending on specification, SO-TM1 may be included in standard accessories.

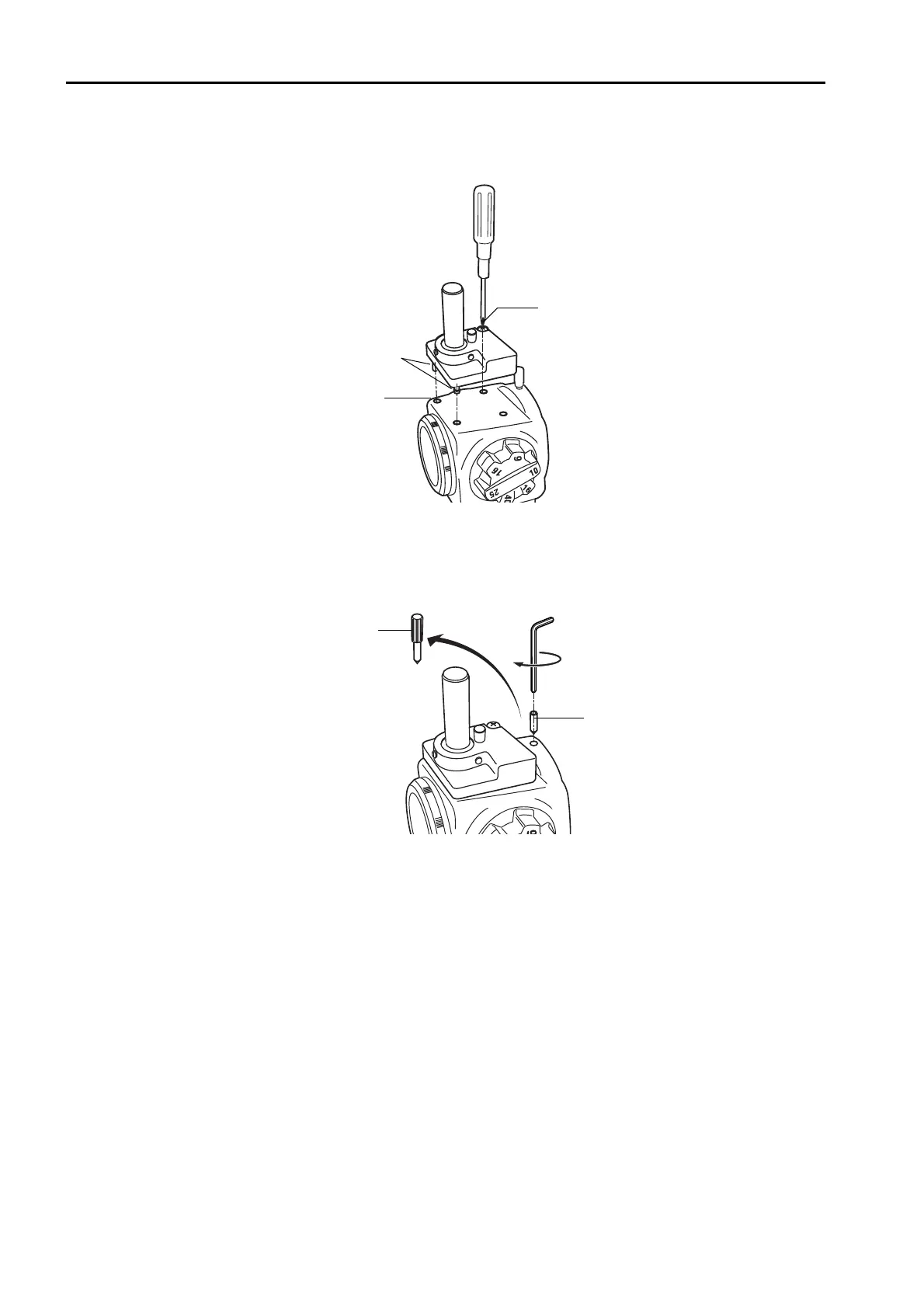

1 Align the locating pin of SO-TM1 into the holes of the microscope, and fasten the screw.
2 Remove the fixing knob of the microscope, and secure the eyepieceunit, etc with the packaged
screw.
3 Applanation tonometer R900 type, Photokeratoscope attachment, etc could be mounted on SO-
TM1.
Screw
Locating Pin
The holes
