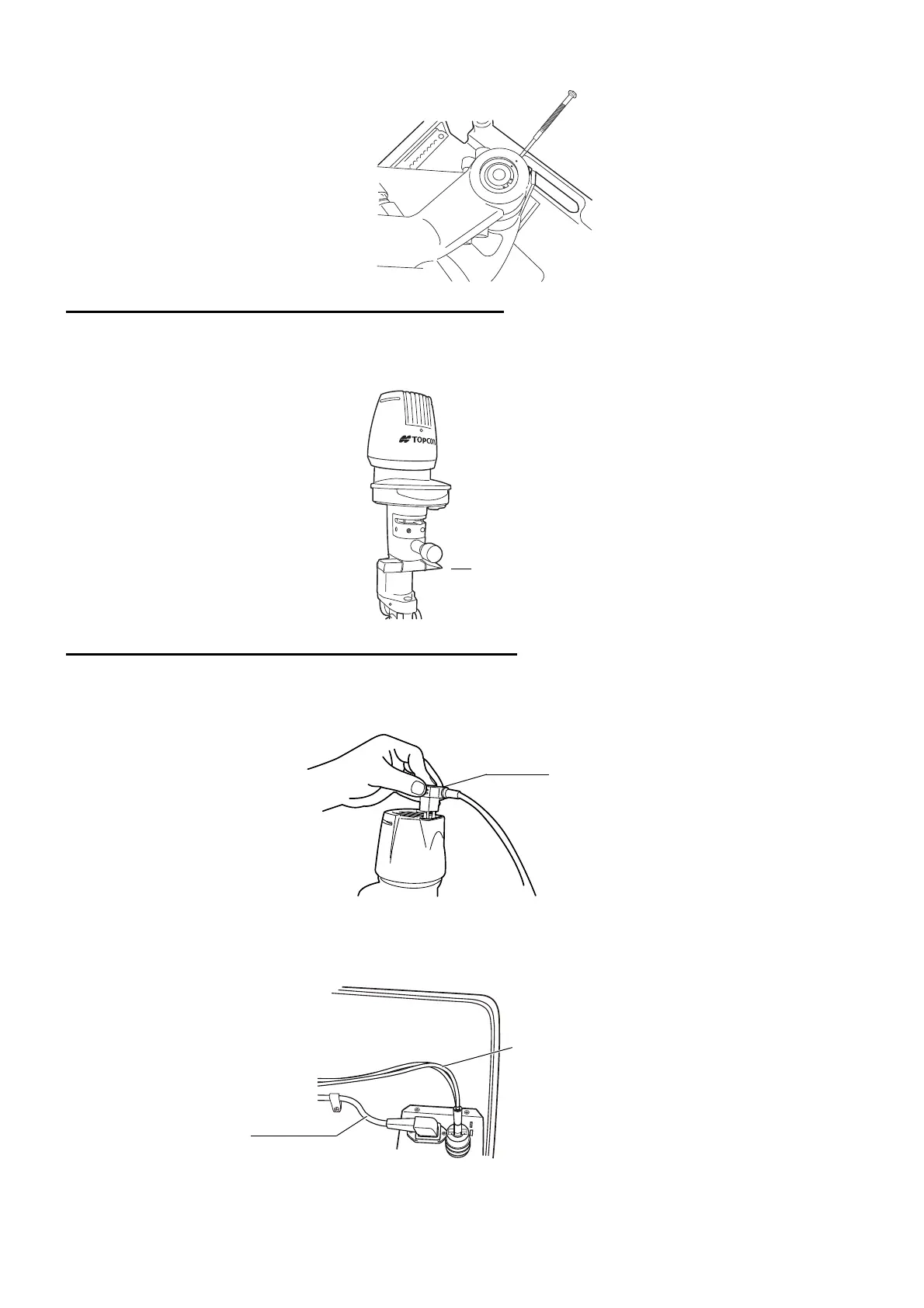

ASSEMBLY PROCEDURE
3 Firmly tighten the fixing screw with a screwdriver.
REMOVING THE ILLUMINATION UNIT PAD
1 Remove the rubber band and slowly withdraw the protection pad from the slit operation mecha-
nism of the illumination unit.
CONNECTING AND SECURING OF CABLES
1 Remove the tape from the lamp house cover of the illumination unit. Plug the cable from the
upper part of the chinrest into the illumination unit.
2 Connect the cable from the lower part of the chinrest unit and the power cable to the power sup-
ply.
Protection pad (for transportation)
Illumination cable
Power cable
