18

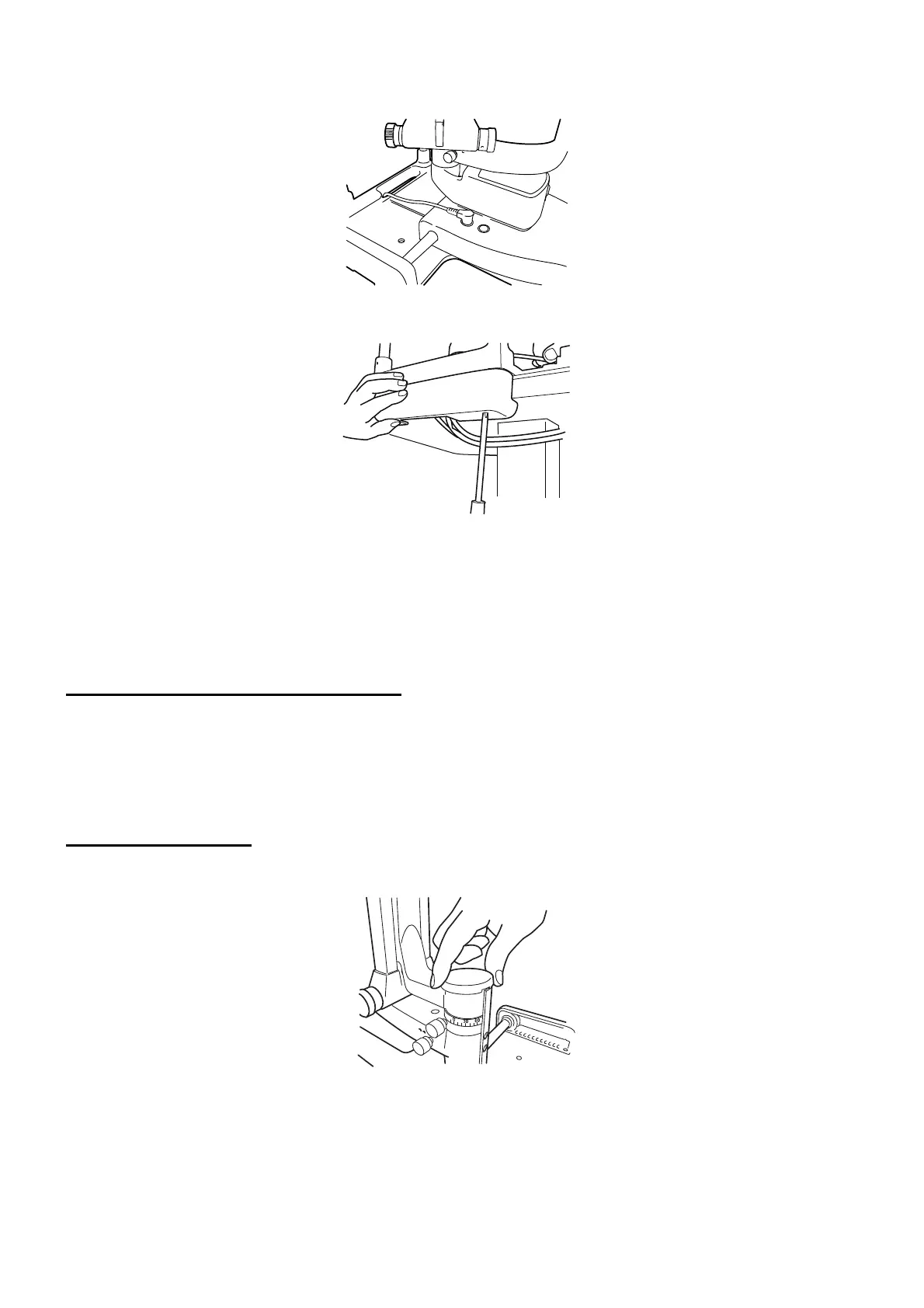

ASSEMBLY PROCEDURE
3 Pass the 8 pin connector from the metal plug connected to the power supply through the hole of
the chinrest and connect to the base unit.
4 Fit the cable cover with 2 screws (11).
5 Pull the base unit toward the side of the operator, then lock.
Attach the cables to the back of the table with the cable clip (13).
6 Move the base unit and illumination unit, and make sure there is enough cable to allow free
movement of the base unit in all directions.
FITTING THE CHINREST TISSUE
1 Remove the chinrest tissue pins.
2 Take approximately one-fifth of the pad of chinrest tissues and secure this at each end with the
pins.
FITTING THE CAP
1 Fit the cap to the shaft aligning the guide rod with the groove in the cap.
