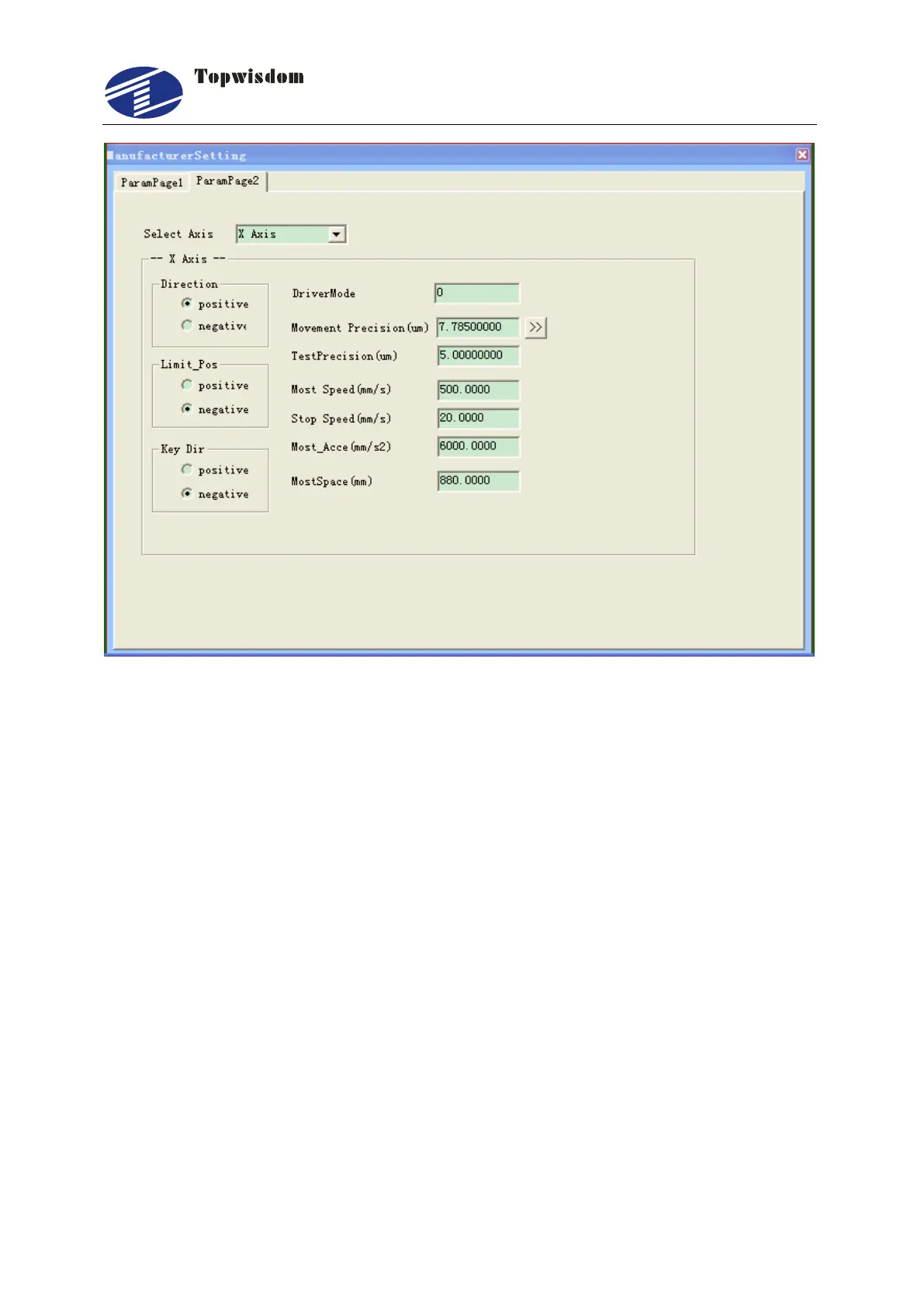

Fig. 4-17
Direction Polarity: Classified into positive and negative, when the motion direction of
the motor disaccords with the direction control buttons on the keyboard, you can
change the direction polarity to make them consistent with each other.
Limit Polarity: Classified into positive and negative, when the motor cannot return to
the original position, you can change the limit polarity to make it normal.
Key Polarity: The buttons on the control panel correspond to directions of the motion
of the axes, if it moves to the right when you press the left, change the polarity.
Note: set the limit polarity first, then direction polarity, and key polarity last.
Movement Precision (µm): The move distance per pulse, the unit is µm. The
resolution of machines may be changed slowly due to different abrasion and other
factors of machines, the user may get the optimal value after multiple times of
debugging and settings.
Calculation of Resolution: Accurate Resolution = Current Resolution × Real Size/
WishSize.
Current Resolution: The resolution set at current operation of the equipment, i.e., the
resolution in the parameter settings of the equipment, which can be read from the
