Toro 07367 - Removing the Hood

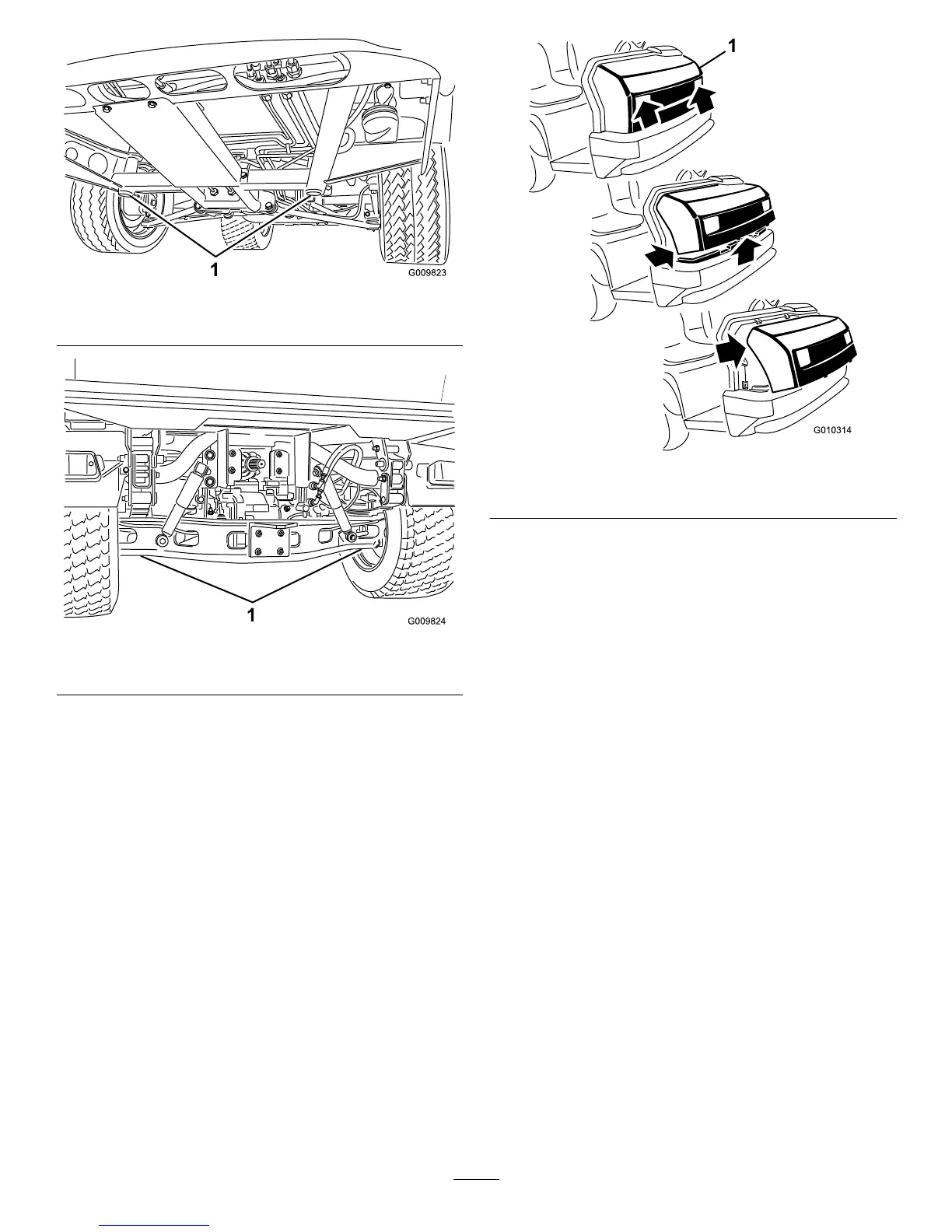

Figure37
1.Frontjackingpoints
Figure38
1.Rearjackingpoints
RemovingtheHood
1.Whilegraspingthehoodintheheadlightopenings,
liftuponthehoodtoreleasethelowermounting
tabsfromtheframeslots(Figure39).
Figure39
1.Hood
2.Pivotthebottomofthehoodupwarduntilthetop
mountingtabscanbepulledfromtheframeslots
(Figure39).
3.Pivotthetopofhoodforwardandunplugthewire
connectorsfromtheheadlights(
Figure39).
4.Removethehood.
Toinstallthehood,completethefollowing:
1.Connectthelights.
2.Insertthetopmountingtabsintotheframeslots.
3.Insertthelowermountingtabsintotheframeslots.
4.Ensurethatthehoodisfullyengagedinthetop,
sidesandbottomgrooves.
