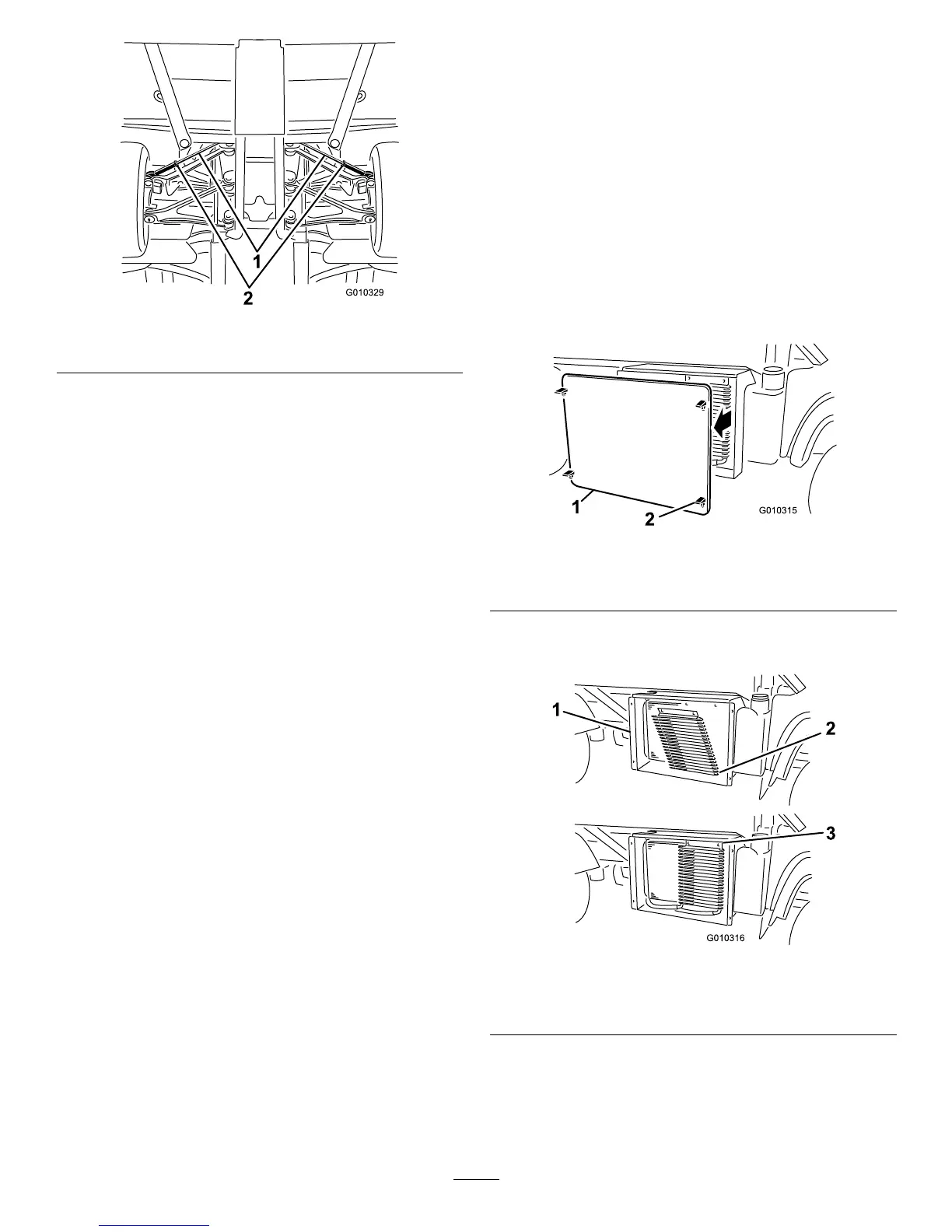

Figure61
1.Tierods2.Jamnuts
B.Rotatethetierodtomovethefrontofthetire
inwardoroutwardtoachievethecentertocenter
distancesfromfronttoback.
C.Tightenthetierodjamnutwhentheadjustment
iscorrect.
D.Checktoensurethatthetiresturnanequal
amounttotherightandtotheleft.Ifthetiresdo
notturnequally,refertotheWorkmanService
Manualfortheadjustmentprocedure
CoolingSystem
Maintenance
RemovingDebrisfromthe
CoolingSystem
ServiceInterval:Beforeeachuseordaily(Cleanmore
frequentlyindirtyconditions.)
1.Turntheengineoff.Cleantheenginearea
thoroughlyofalldebris.
2.Unlatchandremovetheradiatorscreenfromthe
frontoftheradiator(
Figure62).
Figure62
1.Radiatorscreen
2.Latch
3.Ifsoequipped,rotatethelatchesandpivottheoil
coolerawayfromtheradiator(Figure63).
Figure63
1.Radiatorhousing3.Latches
2.Oilcooler
4.Cleantheradiator,oilcooler,andscreenthoroughly
withcompressedair.
Note:Blowdebrisawayfromtheradiator.
5.Installthecoolerandscreentotheradiator.
