HydraulicSystem
Maintenance
ChangingtheHydraulicFluid
andCleaningtheStrainer
ServiceInterval:Every800hours
1.Positionthevehicleonalevelsurface,stopthe
engine,engagetheparkingbrake,andremovethe
keyfromtheignitionswitch.
2.Removethedrainplugfromthesideofthereservoir
andletthehydraulicuidowintoadrainpan
(
Figure77).
Note:Cleanthehydraulicstrainer.Referto
CleaningHydraulicStrainer.

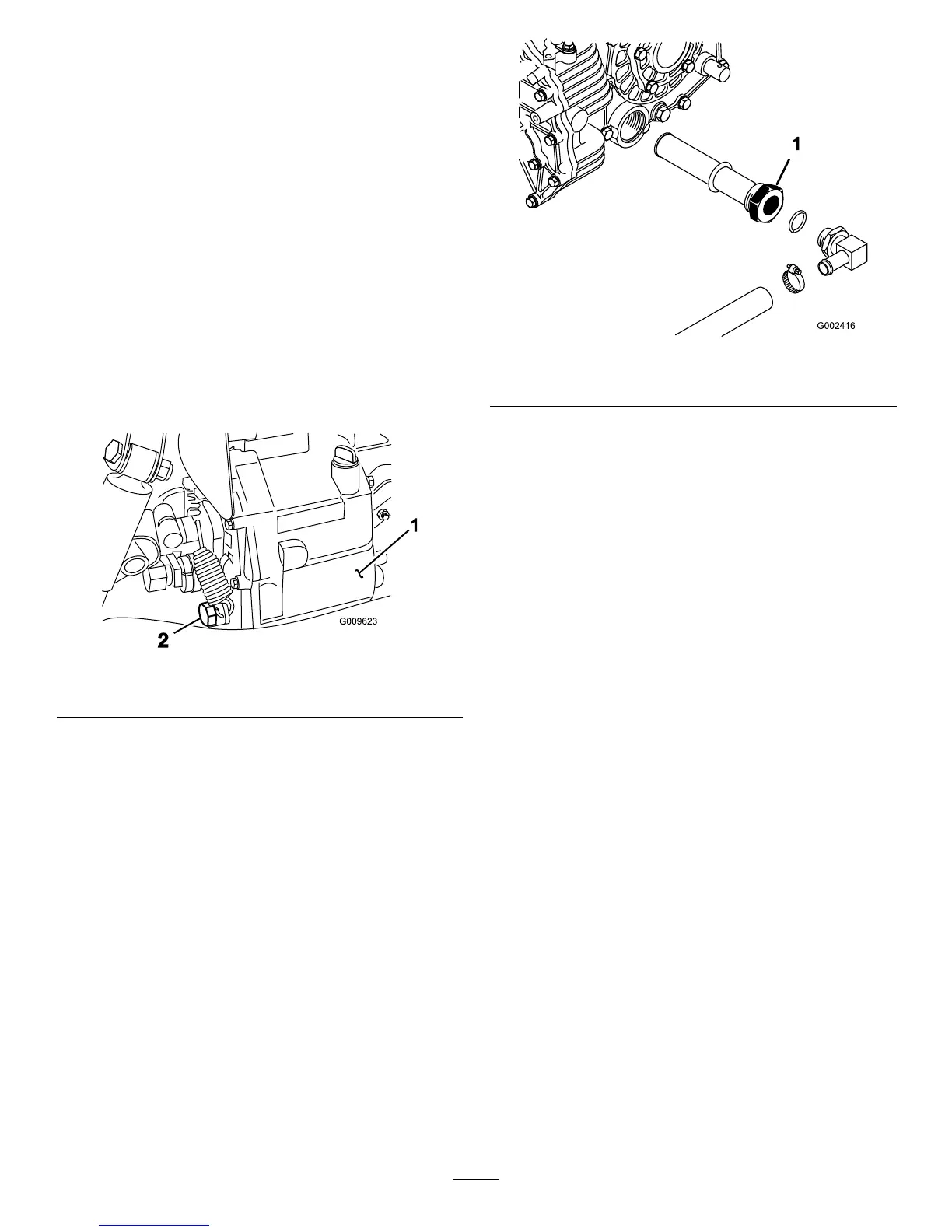

Figure77
1.Hydraulicreservoir2.Drainplug
3.Notetheorientationofthehydraulichoseand90
degreettingconnectedtothestrainerontheside
ofthereservoir(Figure78).Removethehydraulic
hoseand90degreetting.
4.Removethestrainerandcleanitbybackushingit
withacleande-greaser.Allowittoairdrybefore
installing.
Figure78
1.Hydraulicstrainer
5.Installthestrainer.
6.Installthehydraulichoseand90degreettingtothe
strainerinthesameorientation.
7.Installandtightenthedrainplug.
8.Fillthereservoirwithapproximately7.5qt(7l)of
DexronIIIATF.RefertoCheckingtheHydraulic
FluidLevel.
9.Starttheengineandoperatethevehicletollthe
hydraulicsystem.Checkthehydraulicoilleveland
replenishit,ifrequired.
Important:Useonlythehydraulicuidsspecied.
Otheruidscouldcausesystemdamage.
ReplacingtheHydraulicFilter
ServiceInterval:Aftertherst10hours
Every800hours
Important:Useofanyotherltermayvoidthe
warrantyonsomecomponents.
1.Positionthevehicleonalevelsurface,stopthe
engine,engagetheparkingbrake,andremovethe
keyfromignitionswitch.
2.Cleantheareaaroundltermountingarea.Place
adrainpanunderthelterandremovethelter
(Figure79).
