Toro 07367 - Drive System Maintenance; Changing the Front Differential Oil (Four Wheel Drive Models Only); Inspecting the Constant Velocity Boot (Four Wheel Drive Models Only); Adjusting the Shift Cables

DriveSystem
Maintenance
ChangingtheFrontDifferential
Oil(FourWheelDriveModels
Only)
ServiceInterval:Every800hours
1.Positionthevehicleonalevelsurface,stopthe
engine,engagetheparkingbrakeandremovethekey
fromtheignitionswitch.
2.Cleantheareaaroundthedrainplugonthesideof
thedifferential(Figure55).Placeadrainpanunder
thedrainplug.

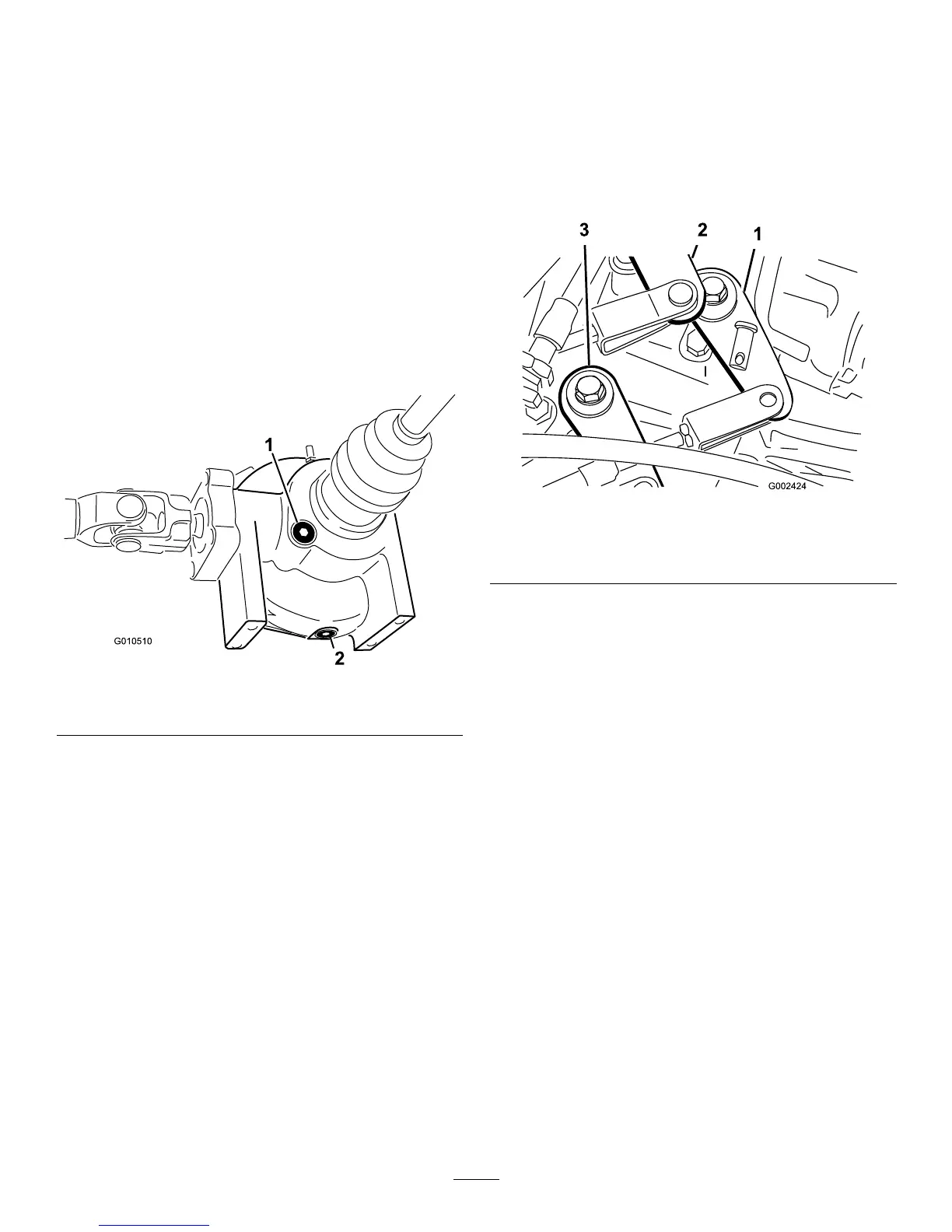

Figure55
1.Fill/checkplug
2.Drainplug
3.Removethedrainplugandlettheoilowintothe
drainpan.Installandtightentheplugwhentheoil
stopsdraining.
4.Cleantheareaaroundthell/checkplugonthe
bottomofthedifferential.
5.Removethell/checkplugandaddMobil424
hydraulicoiluntiltheoilisuptothehole.
6.Installthell/checkplug.
InspectingtheConstant
VelocityBoot(FourWheel
DriveModelsOnly)
ServiceInterval:Every200hours
Inspecttheconstantvelocitybootforcracks,holes,ora
looseclamp.ContactyourAuthorizedToroDistributor
forrepairifyoundanydamage.
AdjustingtheShiftCables
ServiceInterval:Aftertherst10hours
Every200hours
1.MoveshiftlevertotheNeutralposition.
2.Removetheclevispinssecuringtheshiftcablesto
thetransaxleshiftarms(
Figure56).
Figure56
1.Shiftarm(1st—Rev.)3.Shiftarm(High—low)
2.Shiftarm(2nd—3rd)
3.Loosentheclevisjamnutsandadjusteachclevis
socablefreeplayisequalforwardandbackward
relativetotheholeinthetransaxleshiftarm(with
thetransaxleleverfreeplaytakenupinthesame
direction).
4.Installtheclevispinsandtightenthejamnutswhen
nished.
AdjustingtheHigh–LowCable
ServiceInterval:Every200hours
1.RemovetheclevispinsecuringtheHigh–Lowcable
tothetransaxle(
Figure57).
2.Loosentheclevisjamnutandadjusttheclevis
sothattheclevisholealignswiththeholeinthe
transaxlebracket.
3.Installtheclevispinandtightenthejamnutwhen
nished.
AdjustingDifferentialLock
Cable
ServiceInterval:Every200hours
1.MovethedifferentiallocklevertotheOffposition.
