Toro 07367 - Brake Maintenance; Adjusting the Parking Brake; Adjusting the Brake Pedal

BrakeMaintenance
AdjustingtheParkingBrake
ServiceInterval:Aftertherst10hours
Every200hours
1.Removetherubbergripfromtheparkingbrakelever
(Figure67).

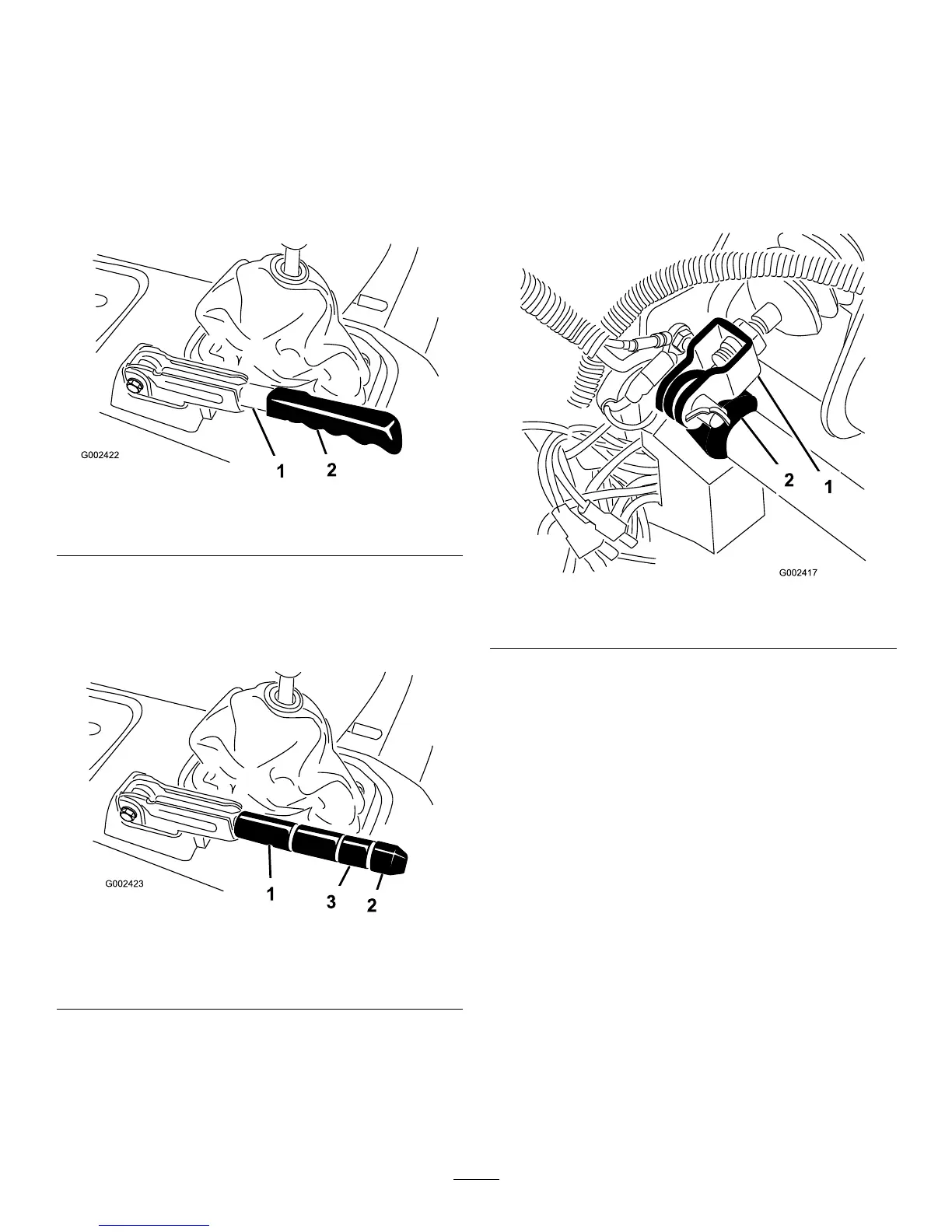

Figure67
1.Parkingbrakelever
2.Grip
2.Loosenthesetscrewsecuringtheknobtothe
parkingbrakelever(Figure68).
3.Rotatetheknobuntilaforceof45to50lb(20to22
kg)isrequiredtoactuatethelever.
Figure68
1.Parkingbrakelever
3.Setscrew
2.Knob
4.Tightenthesetscrewwhennished.
Note:Ifnoadjustmentisleftatthehandle,loosen
thehandletothemiddleoftheadjustmentandadjust
thecableattherear,thenrepeatstep3.
5.Installtherubbergripontotheparkingbrakelever.
AdjustingtheBrakePedal
ServiceInterval:Every200hours
Note:Removethefonthoottoeasetheadjustment
procedure.
1.Removethecotterpinandclevispinsecuring
themastercylinderyoketothebrakepedalpivot
(
Figure69).
Figure69
1.Mastercylinderyoke2.Brakepedalpivot
2.Liftuponthebrakepedal(Figure70)untilitcontacts
theframe.
3.Loosenthejamnutssecuringtheyoketothemaster
cylindershaft(
Figure70).
4.Adjusttheyokeuntilitsholesalignwiththeholein
thebrakepedalpivot.Securetheyoketothepedal
pivotwiththeclevispinandcotterpin.
5.Tightenthejamnutssecuringtheyoketothemaster
cylindershaft.
Note:Thebrakemastercylindermustrelieve
pressurewhenproperlyadjusted.
51
