Toro 07367 - Converting the Speedometer

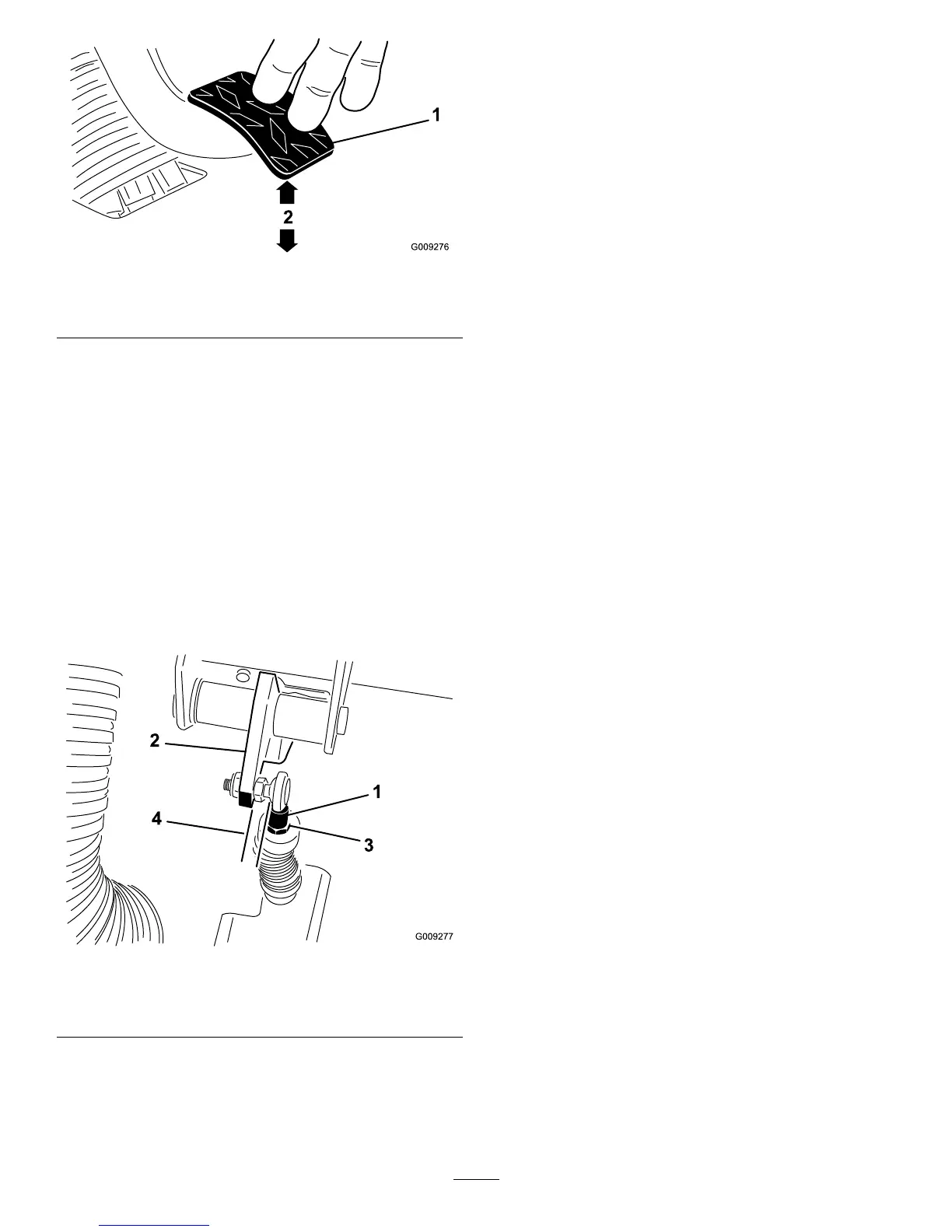

Figure75
1.Clutchpedal2.3.75±0.12inch(9.5±0.3
cm)
Note:Forceisappliedsotheclutchreleasebearing
lightlycontactsthepressureplatengers.
4.Tightenthejamnutsaftertheadjustmenthasbeen
attained.
5.Recheckthe3.75±0.12inch(9.5±0.3cm)
dimensionafterthejamnutshavebeentightenedto
ensureproperadjustment.Readjust,ifnecessary.
6.Connectthereturnspringtotheclutchlever.
Important:Ensurethattherodendis
positionedsquarelyontheball,nottwisted,and
remainsparalleltotheclutchpedalafterthejam
nutistightened(
Figure76).
Figure76
1.Clutchcablerodend
3.Rodendjamnut
2.Clutchpedal
4.Parallel
Note:Theclutchfreeplayshouldneverbelessthan
0.75inch(19mm).
ConvertingtheSpeedometer
YoucanconvertthespeedometerfromMPHtoKPH
orKPHtoMPH.
1.Positionthevehicleonalevelsurface,stopthe
engine,engagetheparkingbrake,andremovethe
keyfromtheignitionswitch.
2.Removethehood.RefertoRemovingtheHoodin
thePre-maintenanceProcedures.
3.Locatethetwoloosewiresnexttothespeedometer.
4.Removetheconnectorplugfromtheharnesswire
andconnectthewirestogether.
ThespeedometerwillswitchtoKPMorMPH.
5.Installthehood.
