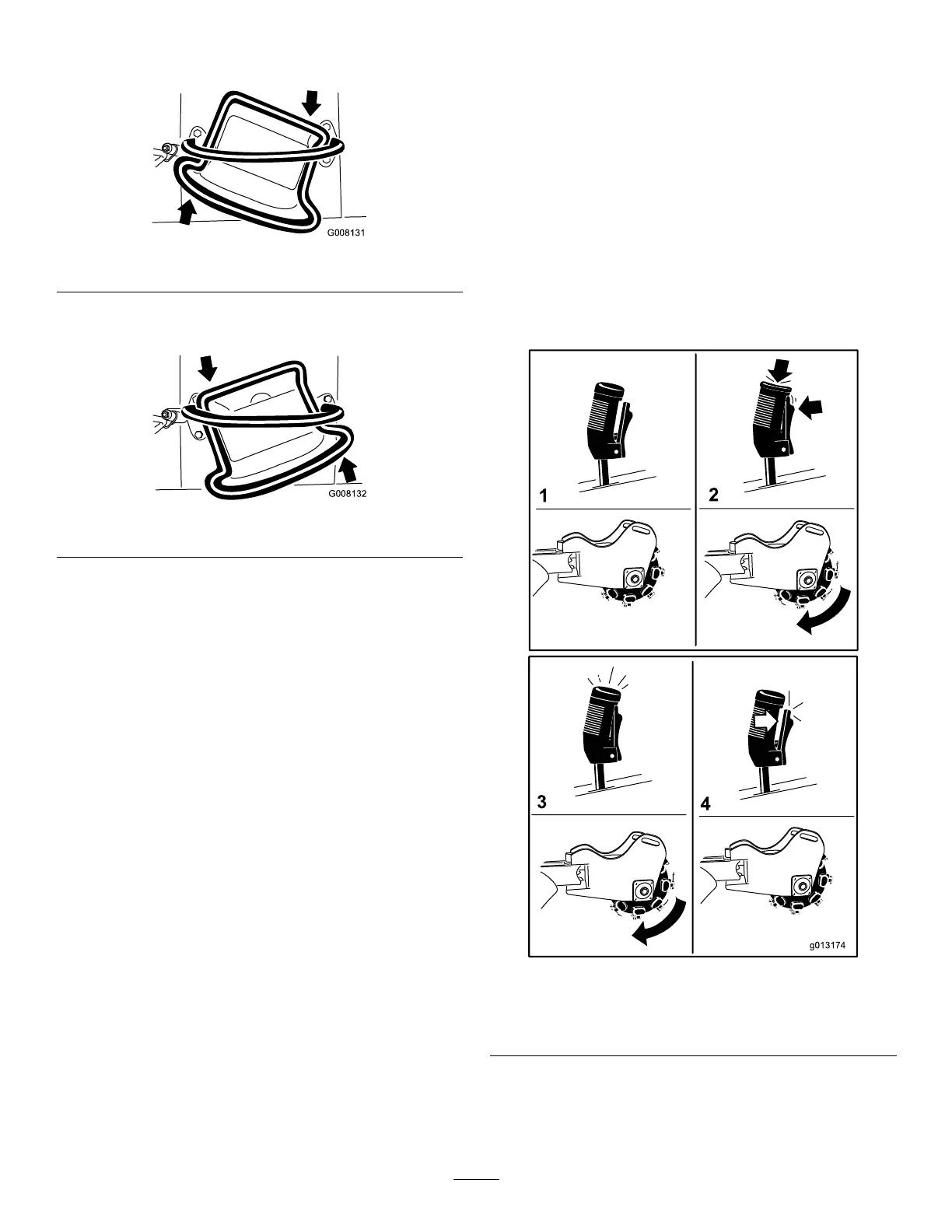

• T o turn right, rotate the traction control clockwise
( Figure 10 ).
g008131
Figure 10
• T o turn left, rotate the traction control
counterclockwise ( Figure 1 1 ).
g008132
Figure 1 1
• T o stop the machine, release the traction control
( Figure 7 ).
Note: The farther you move the traction control in
any direction, the faster the machine moves in that
direction.
Grinder Control/Hydraulic-Lift
Lever
Operate the grinder using the grinder control lever
as follows:
• T o start the grinder ( Figure 12 ), squeeze the
trigger and then press the red button on the top of
the lever . Once the grinder has started, you can
release the red button.
• T o stop the grinder ( Figure 12 ), release the trigger
for more than a half second.
Note: If you are operating the grinder and
momentarily release the trigger (i.e., less than a
half second), the grinder continues to operate.
g013174
Figure 12
1. Neutral 3. Run the grinder
2. Start the grinder 4. Stop the grinder
1 1
