Adjusting the T raction-Control
Neutral Position
If the machine creeps forward or backward when
the traction control is in neutral and the machine is
warm, you may need to adjust the return-to-neutral
mechanism on the pumps; contact your Authorized
Service Dealer .
Adjusting the T raction-Control
Forward Position
If the machine does not drive straight when you hold
the traction control forward against the reference bar ,
complete the following procedure:
1. Drive the machine with the traction control
against the reference bar , noting which direction
the machine veers.
2. Release the traction control.
3. If the machine veers to the left , loosen the right
jam nut and adjust the tracking set screw on the
front of the traction control ( Figure 52 ).
4. If the machine veers to the right , loosen the left
jam nut and adjust the tracking set screw on the
front of the traction control ( Figure 52 ).

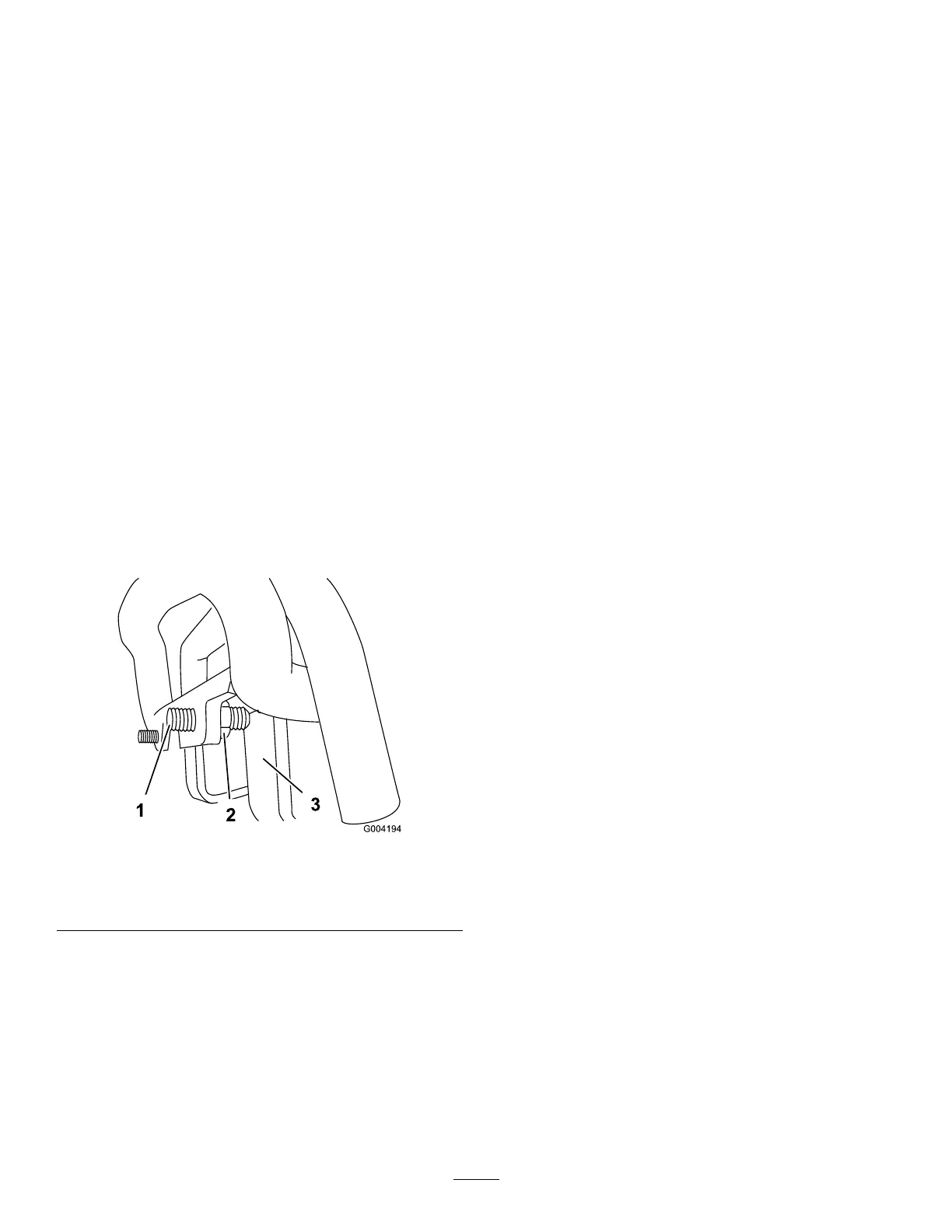

g004194
Figure 52
1. Set screw 3. Stop
2. Jam nut
5. Repeat the procedure until the machine drives
straight in the full forward position.
Important: Ensure that the set screws touch
the stops in the full forward position to avoid
overstroking the hydraulic pumps.
