Thehourmeterdisplaysenginehourswhenthe
hourglasssymbolisashing.
Thedisplayturnsoffafter5minutesafterthe
ignitionkeyisswitchedtotheOFFposition.
TheTineEngagementDisplay
ElectronicDepthControlScreen
Thereare2waystoactivatethetineengagement
display:
Tapthemulti-functionswitcheitherupordownto
displaythetineengagementmeter.
Steponthetinegroundengagementfootswitch.
g211731

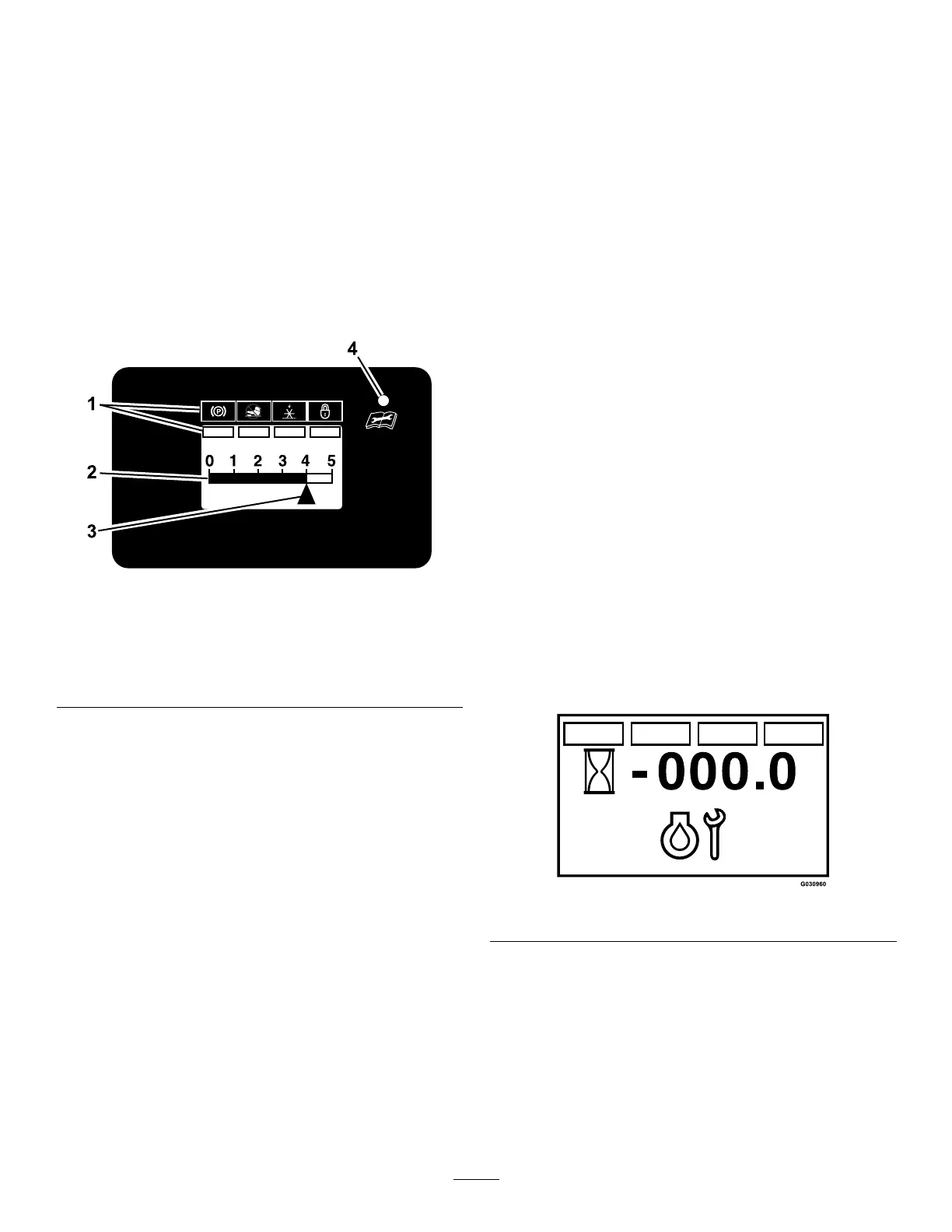

Figure20
1.LCDIndicators/Informationscreen
2.Tinedepthstatusbar
3.Tinedepthsettingindicator
4.LEDstatuslight
Ahighernumberonthestatusbar(Figure20)
increasesthelengthoftheaerationplugandalower
numberdecreasesit.
Note:Ifthepluglengthisnotthedesiredlength,you
mayneedtoadjustthemachinetoaccommodatefor
yourweight;refertoAdjustingtheOperatorWeight
ControlSetting(page24).
LEDStatusLight
TheLEDismulti-coloredlight(Figure19andFigure
20)usedtoindicatethesystemstatus:
SolidGreen—indicatesnormaloperatingactivity
BlinkingRed—indicatesanactivefault
SolidRed—indicatesthatmaintenanceisrequired
MaintenanceReminderScreens
Thehourmeterdisplaysthenumberofengine
hoursuntileithertheengineoilortransmissionoil
maintenanceisdue.Whenmaintenanceisdue,the
smartcontroller/electronicdepthcontroldisplays
ashingiconsforanengineoilmaintenancealertor
atransmissionoilmaintenancealert,andtheLED
statuslightdisplaysasteadyredlight.
Amaintenancealertoccurswhenthemaintenance
counterreacheszero.
Iftheserviceisnotperformed,themaintenance
counterdisplaystimeasnegativehourstoindicate
thenumberofhourspastduefortheservice(up
to-500hours).
Thehourmeterswitchesbetweenthedefault
screenandtheactivealertscreen.
Ifmorethan1alertisactive,thedisplaycycles
betweenthealertsintheorderthattheyoccurred
beforecyclingbacktothedefaultscreen.
Themaintenancealertsonlydisplaywhenthedefault
screenhasbeenactivefor2seconds;however,if
thekeyismovedtotheSTARTposition,thealerts
occurimmediately.Whenthemachineisaerating,
thealertscreendoesnotdisplaybuttheLEDstatus
lightremainsasteadyred.
ServiceEngineReminder
Theengine-oilservicereminder(Figure21)counts
downfromtheinitialbreak-inserviceintervalof5
enginehoursandthencountsdownfrom100hours
foreachserviceintervalthereafter.
g030960
Figure21
22
