twopositionsR(manualreverse)andAuto(normal).Refer
toEngineCoolingFanOperationintheOperationSection
ofmanual.
G01 1547
1
2
3

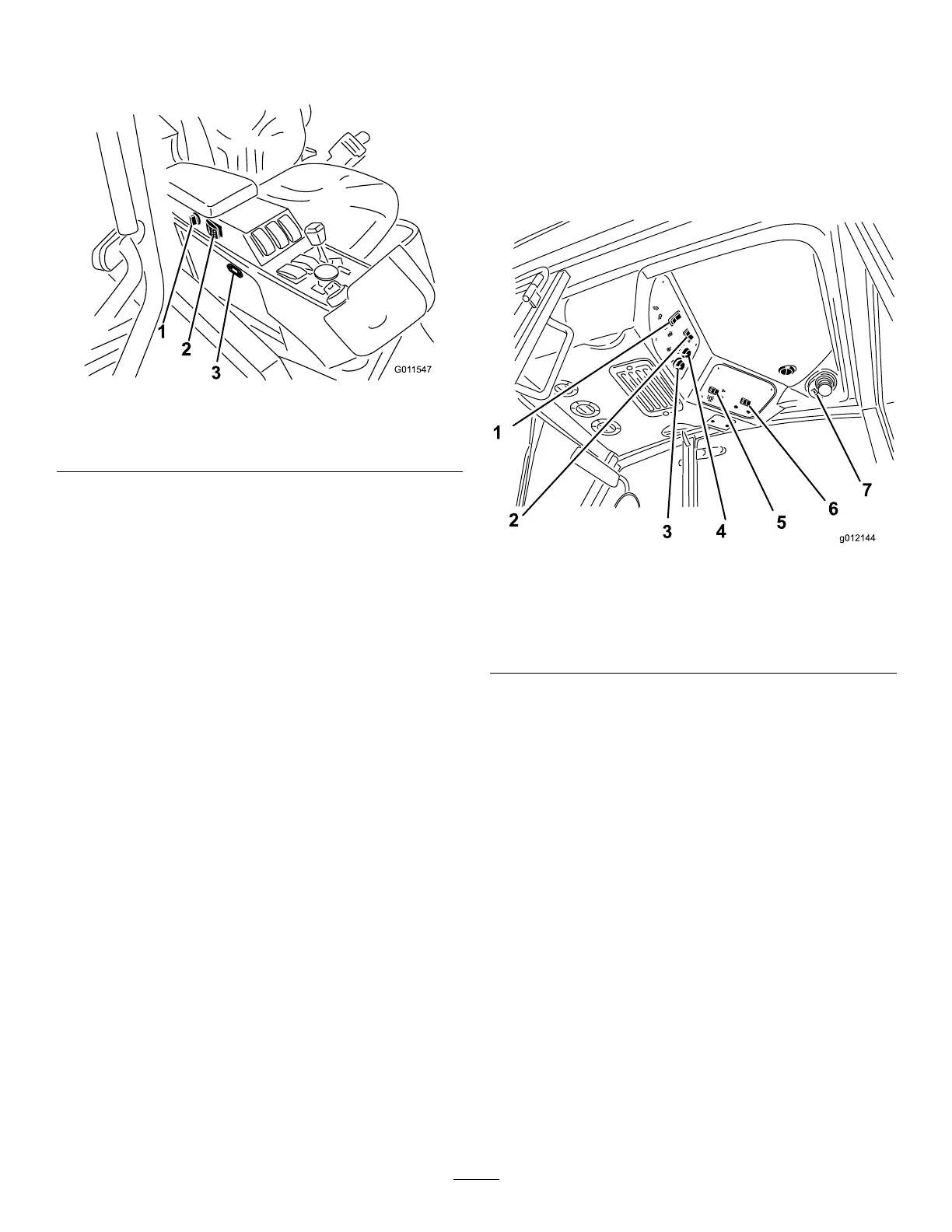

Figure5
1.Powerpoint3.Hourmeter
2.Enginecoolingfanswitch
HourMeter
Thehourmeter(Figure5)showsthetotalhoursthatthe
machinehasbeenoperated.
PowerPoint
Thepowerpoint(Figure5)isusedtopoweroptional
electricalaccessories.
AudibleAlarm
Towarnbystanders,analarmwillsoundifthecuttingdecks
areloweredwiththeengineoff.Thealarmwillquitsounding
oncethedecklowerswitchisreleased.Also,thealarmwill
soundiftheenginecoolanttemperaturereachesaset-point
thatcutsoutthePTOoperation.Thealarmwillcontinue
tosounduntilthecoolanttemperaturedropsbelowthe
set-pointorthePTOswitchisdisengaged.
CabControls
Model30447only
WindShieldWiperSwitch
Pressfrontofswitchtoactivatethewindshieldwipers
(Figure6)andrearofswitchtoturnoffthewipers.
AirConditioningSwitch
Pressfrontofswitchtoactivatetheairconditioning(Figure6)
andrearofswitchtoturnofftheairconditioning.
FanControl
Rotatethefancontrolknobtoregulatethespeedofthefan
(Figure6).
TemperatureControl
Rotatethetemperaturecontrolknobtoregulatetheair
temperatureinthecab(Figure6).
Figure6
1.Windshieldwiperswitch5.Hazardlightswitch
2.Airconditioningswitch6.Turnsignalswitch
3.T emperaturecontrol7.Domelightswitch
4.Fancontrol
HazardLightSwitch
Presstheswitchtoactivatethehazardlights(Figure6).
TurnSignalSwitch
Presstheswitchtoactivatetheturnsignals(Figure6).
DomeLightSwitch
Presstheswitchtoactivatethedomelight(Figure6).
WindShieldLatch
Liftuponlatchestoopenthewindshield(Figure7).Press
inonlatchtolockwindshieldinopenposition.Pulloutand
downonlatchtocloseandsecurewindshield.
