Toro 30447N - Wing Cutting Units

CenterLiftAssemblies

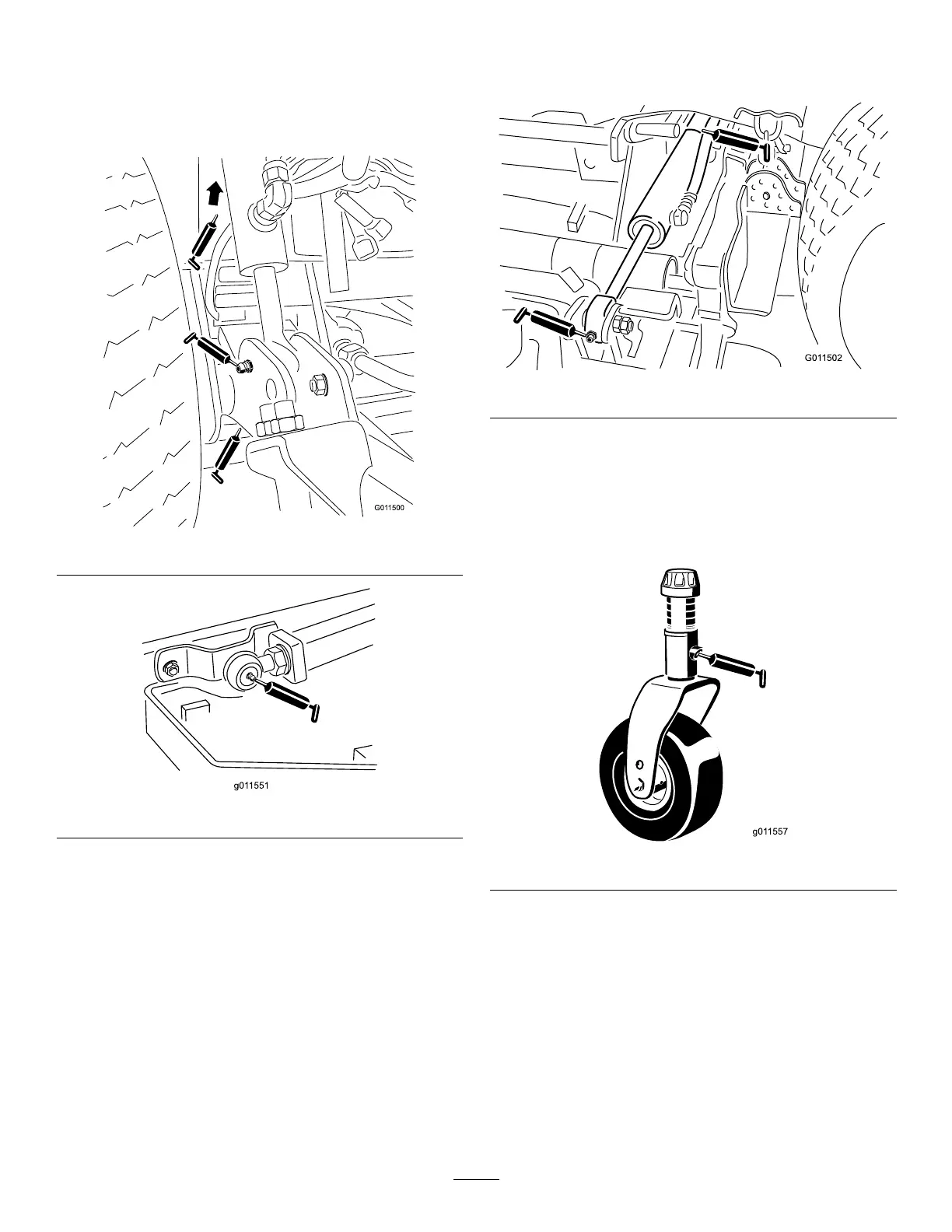

•Liftarmbushings(2)(Figure46)
•Liftcylinderbushings(4)(Figure46)
•Liftarmballjoints(2)(Figure47)
Figure46
Figure47
WingLiftAssemblies
Wingliftcylinder(4)(Figure48)
Figure48
WingCuttingUnits
•Castorforkshaftbushing(1each)(Figure49)
•Spindleshaftbearings(4)
•Idlerarmpivotbushings(1)(locatedontheidlerarm)
Figure49
