amalfunctionintheinterlocksystemthatshouldbe
correctedbeforeresumingoperation.
•Iftheoperatorrisesfromtheseatwiththecuttingunits
engagedand/orthetractionpedaloutofneutral,the
cuttingunitsmuststopinapproximatelyonesecondand
enginemustshutdowninapproximatelytwoseconds.If
thecuttingunitsdonotstopandtheenginedoesnot
shutdown,thereisamalfunctionintheinterlocksystem
thatshouldbecorrectedbeforeresumingoperation.
PushingorTowingthe
Machine
Inanemergency,themachinecanbemovedforwardby
actuatingthebypassvalveinthevariabledisplacement
hydraulicpumpandpushingortowingthemachine.Donot
pushortowthemachineformorethan1/4mile(0.4km).
Important:Donotpushortowthemachinefasterthan
2-3MPH(3-4.8km/h)becauseinternaltransmission
damagemayoccur.Thebypassvalvemustbeopen
wheneverthemachineispushedortowed.
1.Raisetheseatandremovethebatterycover.Thebypass
valveislocatedinfrontofthebattery(Figure31).
2.Rotatethevalve90degrees(1/4turn)ineither
directiontoopenandallowoiltobypassinternally.
Becauseuidisbypassed,themachinecanbeslowly
movedwithoutdamagingthetransmission.
Note:Resistancewillbefeltonthevalvewhenitis
movedtotheopenposition.
3.Rotatethevalve90degrees(1/4turn)backtoclosethe
bypassvalvebeforestartingtheengine.However,do
notexceed5to8ft-lb(7to11N⋅m)torquetoclose
thevalve.

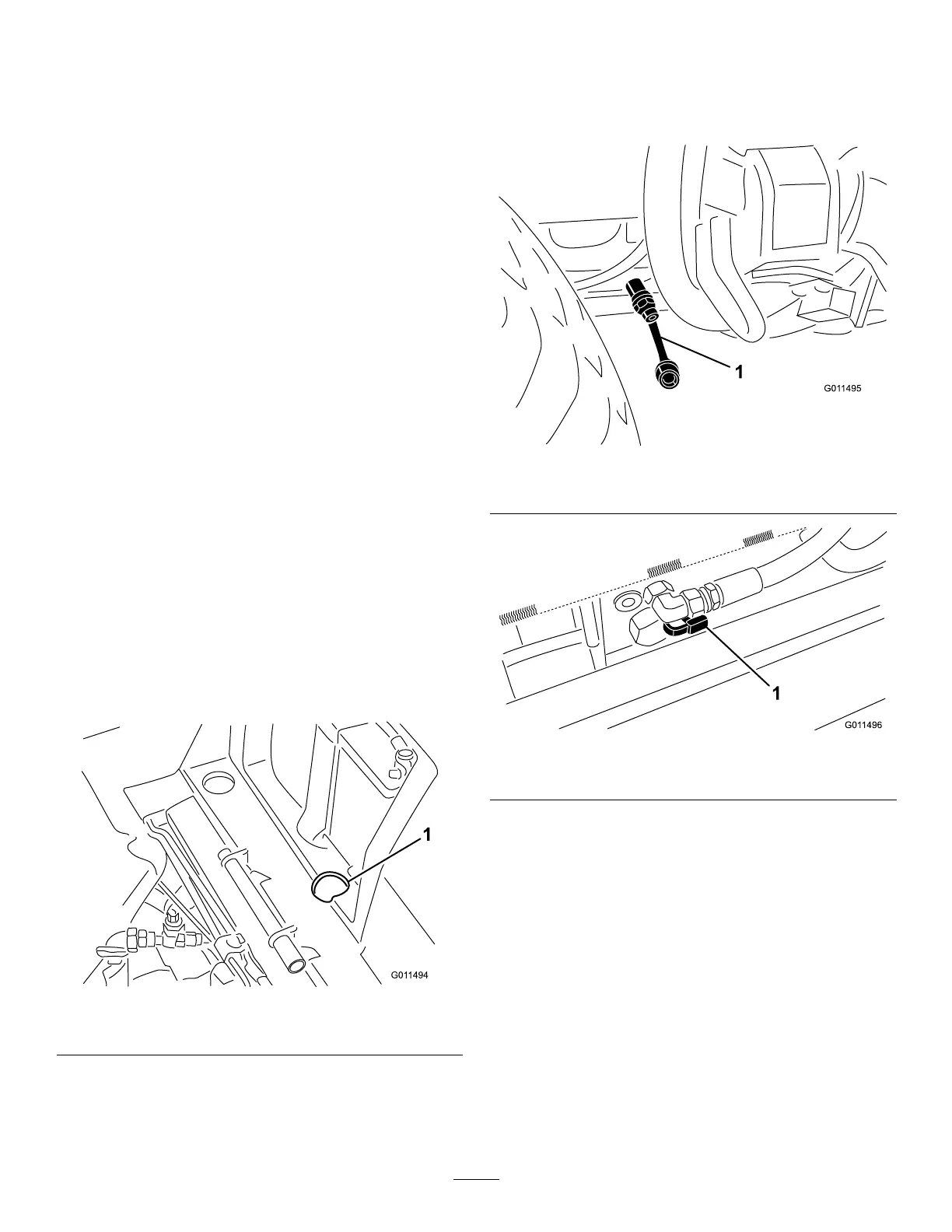

Figure31
1.Bypassvalveaccesshole
Important:Ifthemachinemusttobepushedor
towedinreverse,thecheckvalveinthefour-wheel
drivemanifoldmustalsobebypassed.Tobypass
thecheckvalve,connectahoseassembly(Hose
PartNo.95-8843,CouplerFittingNo.95-0985
[Qty.2],andHydraulicFittingNo.340-77
[Qty.2])tothereversetractionpressuretest
port(
Figure32)andthereversefour-wheeldrive
pressureport(Figure33).
Figure32
1.Reversetractionpressuretestport
Figure33
1.Reversefour-wheeldrivepressuretestport
JackingPoints
Therearejackingpointslocatedatthefrontandrearofthe
machine.
•Ontheframeattheinsideofeachfrontdrivetire
•Atthecenteroftherearaxle
TieDowns
Therearetiedownslocatedatthefront,rearandsidesof
themachine.
•Oneachsideoftheframebythesidecuttingunitliftarms
•Frontcenteroftheoperator'splatform
•Therearbumper
