6.Removethedrainplugfromthegearboxandallowthe
oiltodrainintoapan.Removethellplugtoease
indrainingoftheoil.

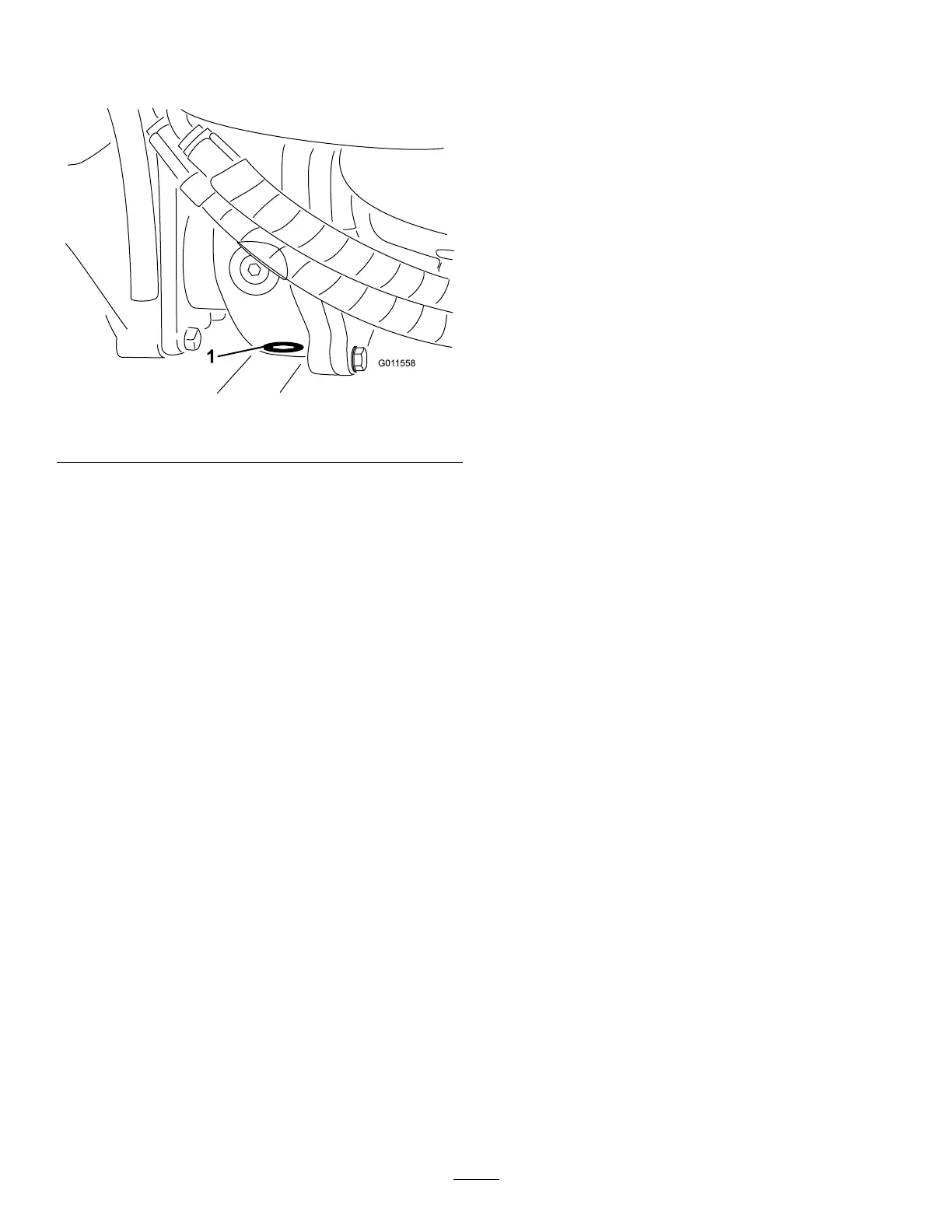

Figure66
1.Drainplug
7.Addenoughoiltobringtheleveluptothebottom
ofthecheckplugholes;refertoCheckingtheRear
AxleLubricant,andCheckingtheRearAxleGearBox
Lubricant.
8.Installtheplugs.
CheckingtheRearWheel
Toe-In
ServiceInterval:Every800hours
Afterevery800operatinghoursorannually,checktherear
wheeltoe-in.
1.Measurethecenter-to-centerdistance(ataxleheight)
atthefrontandrearofthesteeringtires.Thefront
measurementmustbe1/4inch(6mm)lessthanthe
rearmeasurement.
2.Toadjust,loosentheclampsatbothendsofthetie
rods.
3.Rotatethetierodendtomovethefrontofthetire
inwardoroutward.
4.Tightenthetierodclampswhentheadjustmentis
correct.
ChangingtheFrontTires
1.Lowerthewingcuttingunitstotheground.
2.Raisethefrontofthemachineseveralinchesoffthe
groundandsupportw/jackstands.
3.RefertoPivoting(Tilting)theFrontCuttingUnit
UprightinMowerMaintenance.
4.PivotCuttingunitforwardtoallowremovalofthetire
requiringservice.
42
