AdjustingtheElectricClutch
ServiceInterval:Every100hours
Theclutchisadjustabletoensureproperengagementand
properbraking.
1.Inserta0.381to0.533mm(0.015to0.021inch)feeler
gaugethroughoneinspectionslotinthesideofthe
assembly.
Note:Makesureitisbetweenthearmatureandthe
rotorfrictionsurfaces.
2.Tightenthelocknutsuntilthereisslightbindingon
thefeelergaugebutitcanbemovedeasilywithinthe
airgap(Figure47).
3.Repeatthisfortheremainingslots.
4.Checkeachslotagainandmakeslightadjustmentsuntil
thefeelergaugebetweentherotorandarmaturewith
veryslightcontactbetweenthem.

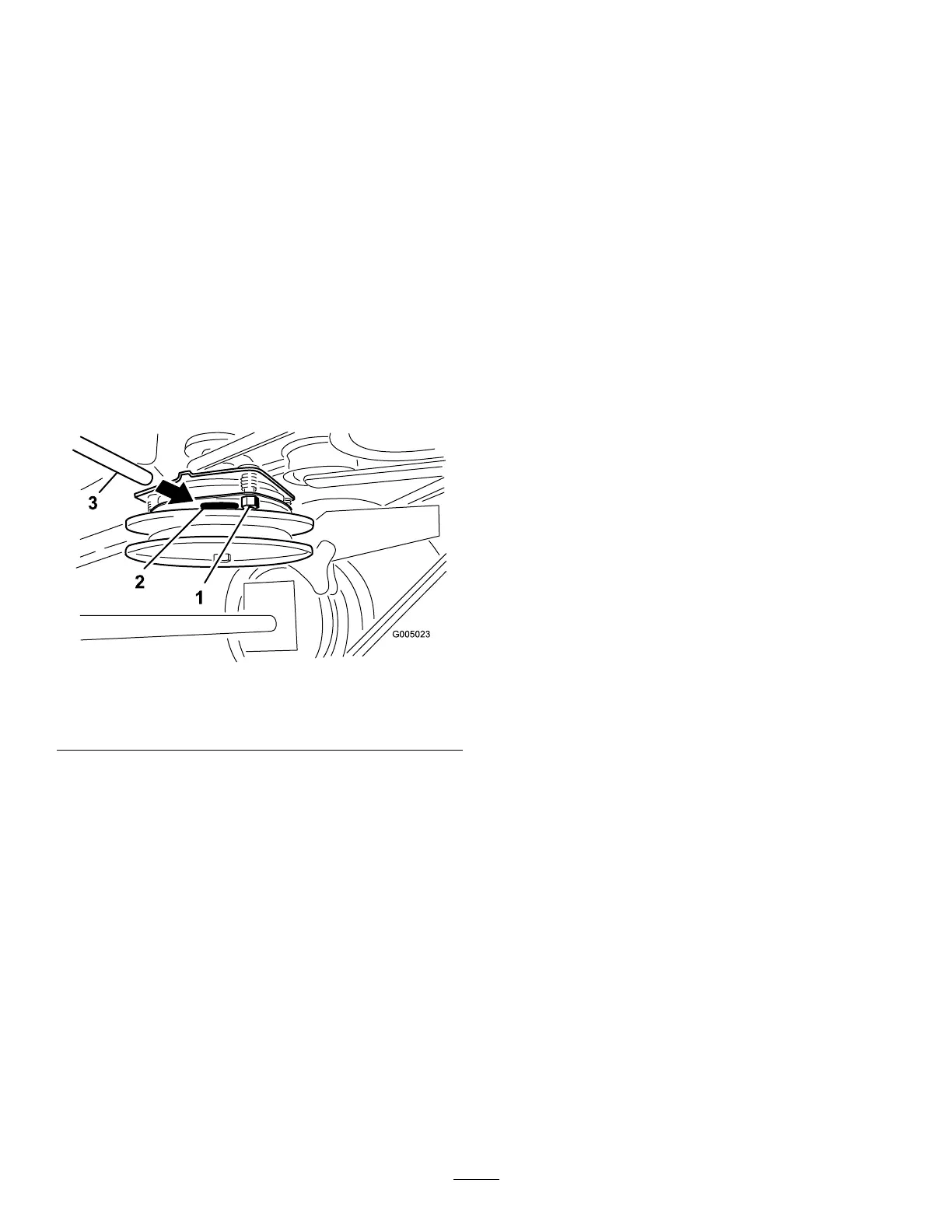

Figure47
1.Adjustingnut3.Feelergauge
2.Slot
CoolingSystem
Maintenance
CleaningtheAir-IntakeScreen
ServiceInterval:Beforeeachuseordaily
Beforeeachuse,removeanybuildupofgrass,dirt,orother
debrisfromthecylinderandcylinderheadcoolingns,
air-intakescreenontheywheelend,andcarburetor-governor
leversandlinkage.Thiswillhelpinsureadequatecooling
andcorrectenginespeedandwillreducethepossibilityof
overheatingandmechanicaldamagetotheengine.
