1. If using a trailer , connect it to the towing vehicle
and connect the safety chains.
2. If applicable, connect the trailer brakes and
lights.
3. Lower the ramp, ensuring that the angle
between the ramp and the ground does not
exceed 15 degrees ( Figure 43 ).
4. Back the machine up the ramp ( Figure 44 ).

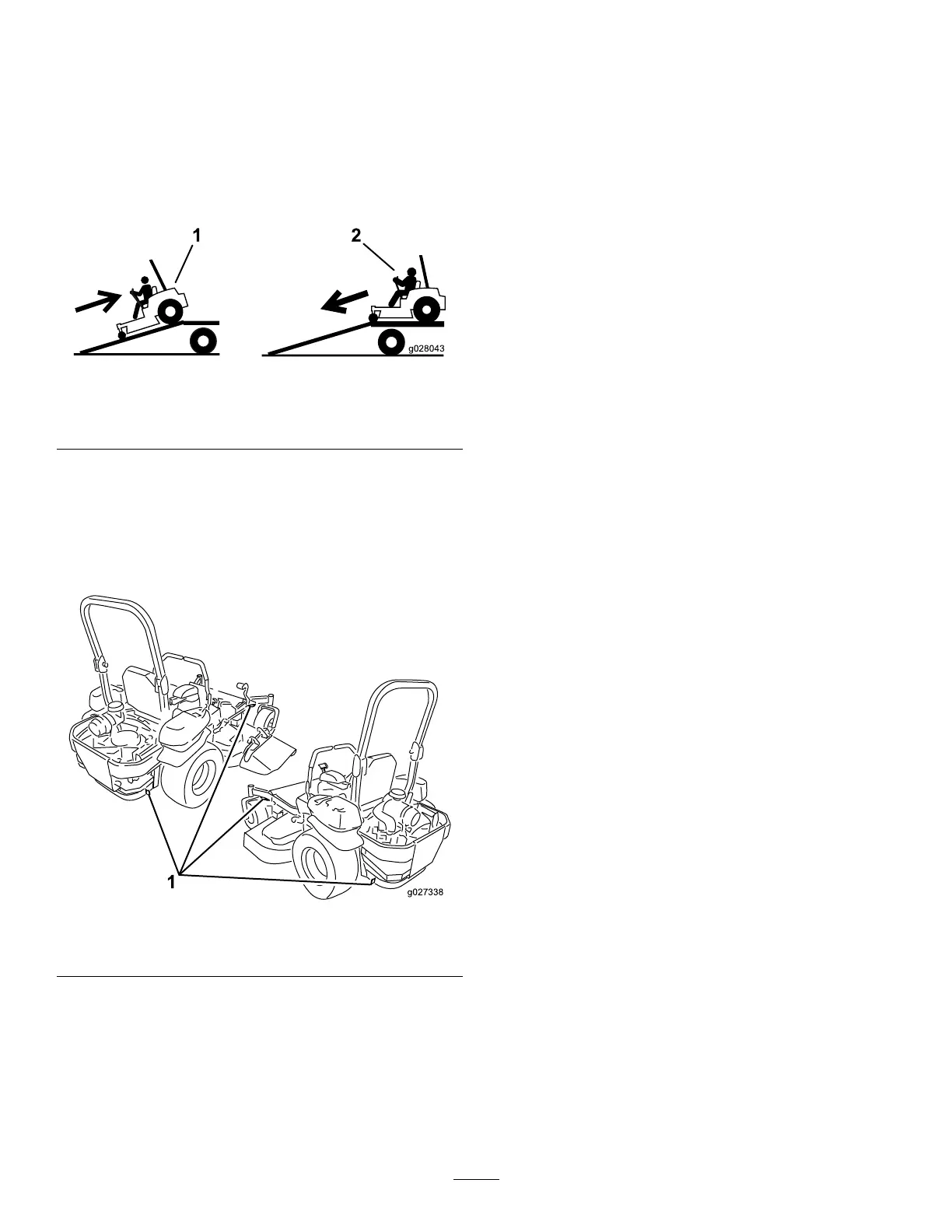

g028043
Figure 44
1. Back the machine up the
ramp.
2. Drive the machine forward
down the ramp.
5. Shut of f the engine, remove the key , and engage
the parking brake.
6. T ie down the machine near the front caster
wheels and the rear frame with straps, chains,
cable, or ropes ( Figure 45 ). Refer to local
regulations for tie-down requirements.
g027338
Figure 45
1. T ie-down points
Unloading the Machine
1. Lower the ramp, ensuring that the angle
between the ramp and the ground does not
exceed 15 degrees ( Figure 43 ).
2. Drive the machine forward down the ramp
( Figure 44 ).
39
