Toro 72907 - Page 43

g192516

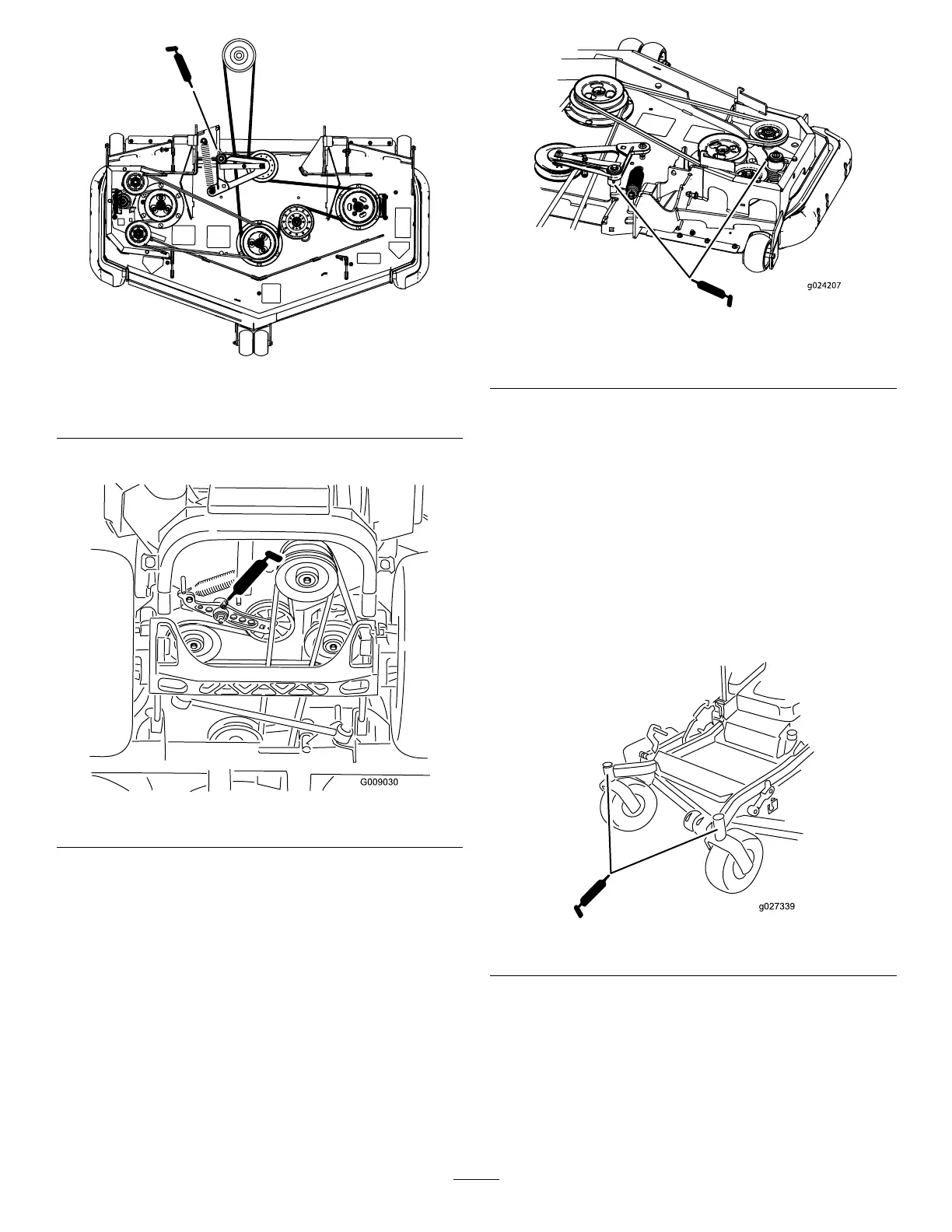

Figure 49
Machine with Rear Discharge Shown
4. Grease the drive-belt idler arms ( Figure 50 ).
g009030
Figure 50
5. Grease the deck-belt idler arms (rear discharge
machines only) as shown in Figure 51 .
g024207
Figure 51
Machines with Rear Discharge Only
6. Remove the dust cap and adjust the caster
pivots.
Note: Keep the dust cap of f until greasing is
done.
7. Remove the hex plug.
8. Thread a grease tting into the hole.
9. Pump grease into the tting until it oozes out
around the top bearing.
10. Remove the grease tting in the hole.
1 1. Install the hex plug and dust cap ( Figure 52 ).
g027339
Figure 52
12. Grease the caster-wheel bearings ( Figure 52 ).
43
