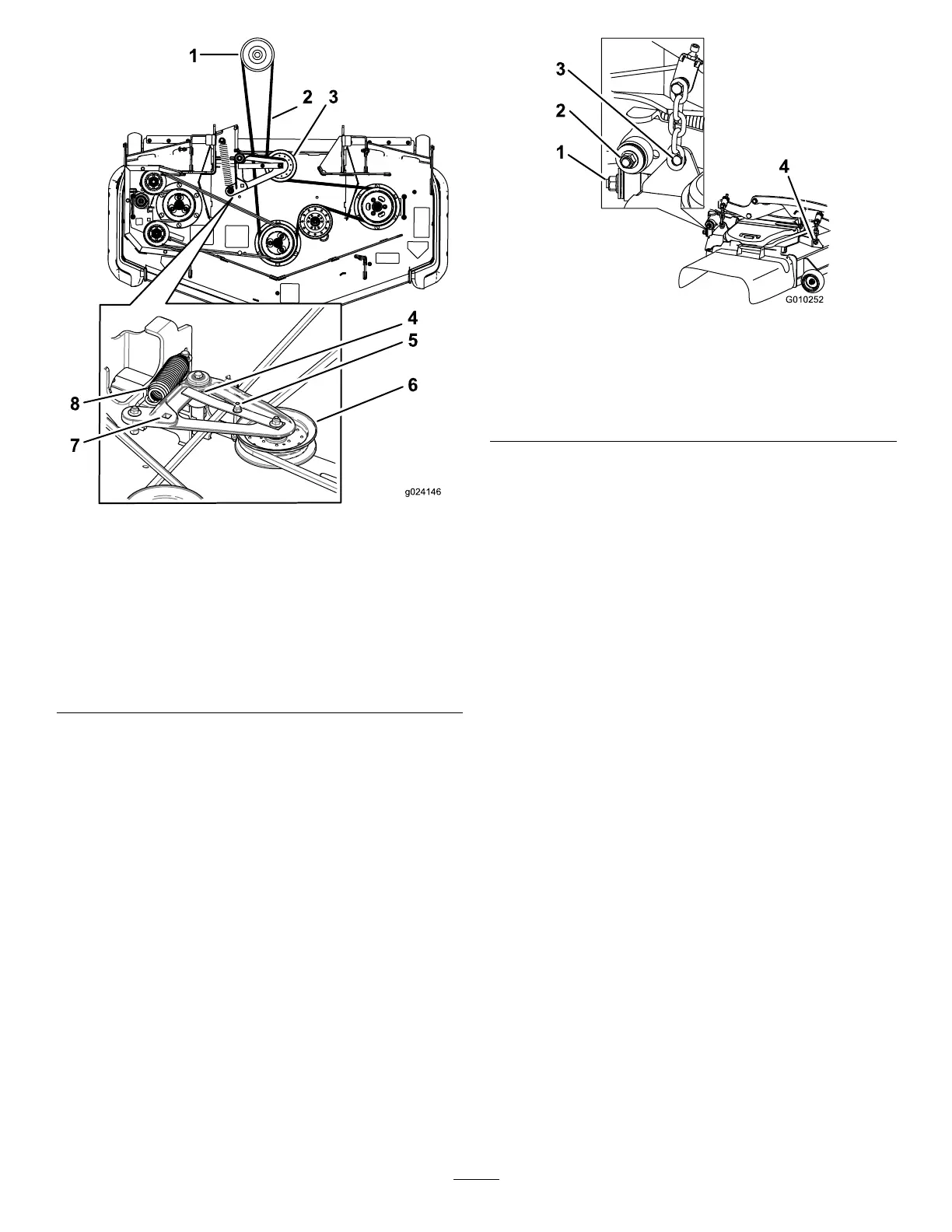

g024146
Figure 131
Rear-Discharge Machines
1. Clutch pulley
5. Belt guide
2. Mower belt
6. Spring-loaded idler pulley
3. Spring-loaded idler pulley 7. Square hole in the idler
arm for the ratchet
4. Ensure that the belt-guide
tab hits against the pivot
hub.
8. Spring
7. Remove and retain the hardware on both sides
of the deck as shown in Figure 132 .
g010252
Figure 132
1. Right stabilizer
2. Deck strut (right side shown)
3. Remove the shoulder bolt and nut.
4. Remove the shoulder bolt and nut.
8. Raise the deck struts and secure them in the
raised position.
9. Slide the deck out to the right side of the
machine.
83
