ProductOverview
G015229

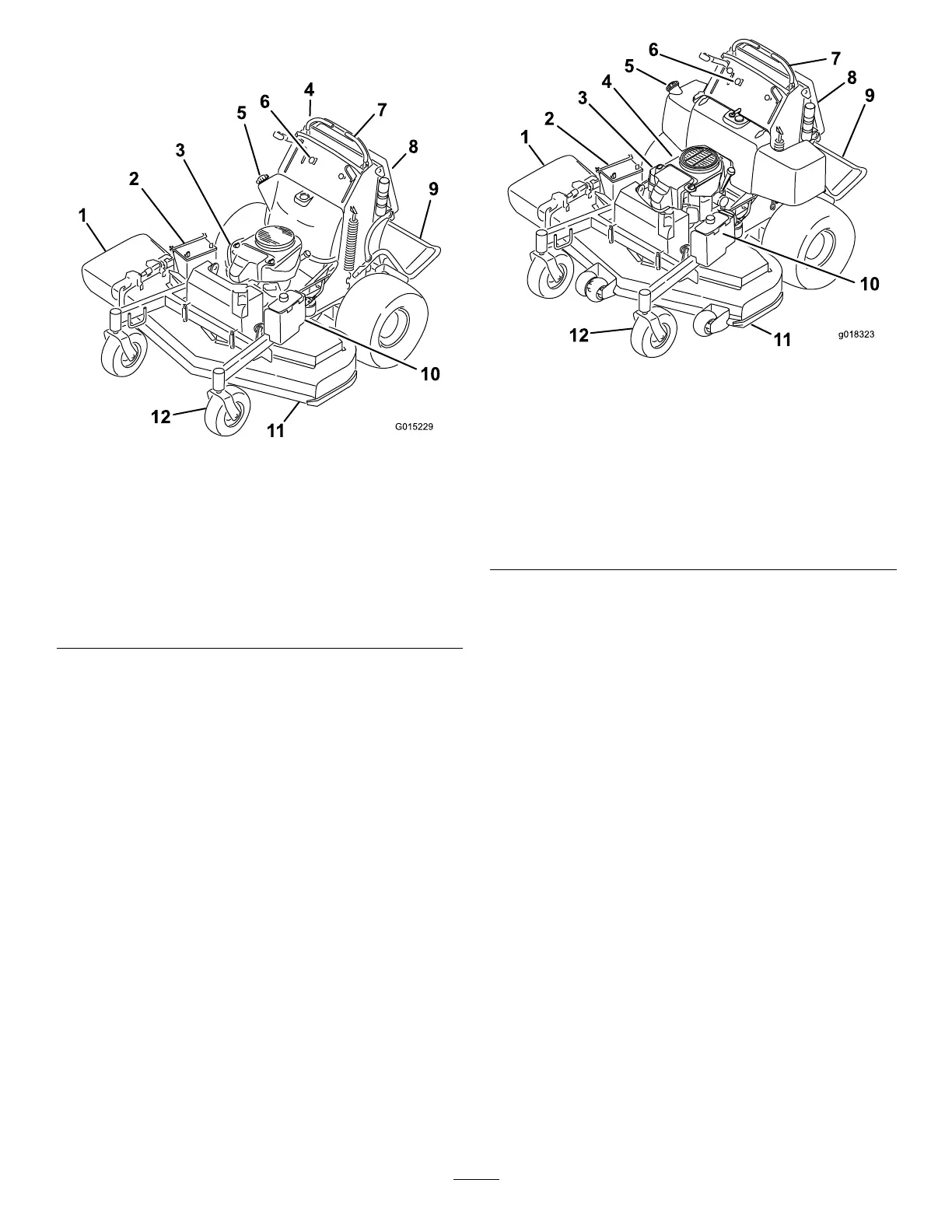

Figure3
48inch(shown)and52inchmachines
1.Sidedischargechute7.Controllevers
2.Battery8.Manualtube
3.Engine
9.Platform(downposition)
4.Fuelshut-offvalve(behind
cushion)
10.Hydraulictank
5.Fueltank11.Mowerdeck
6.Controls
12.Frontcasterwheel
g018323
1
2
3
4
5
6
7
8
9
10
11
12
Figure4
60inchmachine
1.Sidedischargechute7.Controllevers
2.Battery8.Manualtube
3.Engine
9.Platform(downposition)
4.Fuelshut-offvalve(behind
cushion)
10.Hydraulictank
5.Fueltank11.Mowerdeck
6.Controls
12.Frontcasterwheel
