AdjustingtheAnti-Scalp
Rollers(60inchMowerDecks
Only)
Wheneveryouchangetheheight-of-cut,itisrecommended
toadjusttheheightoftheanti-scalprollers.
1.Disengagethebladecontrolswitch(PTO),movethe
motioncontrolleverstotheneutrallockedposition
andsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforallmoving
partstostopbeforeleavingtheoperatingposition.

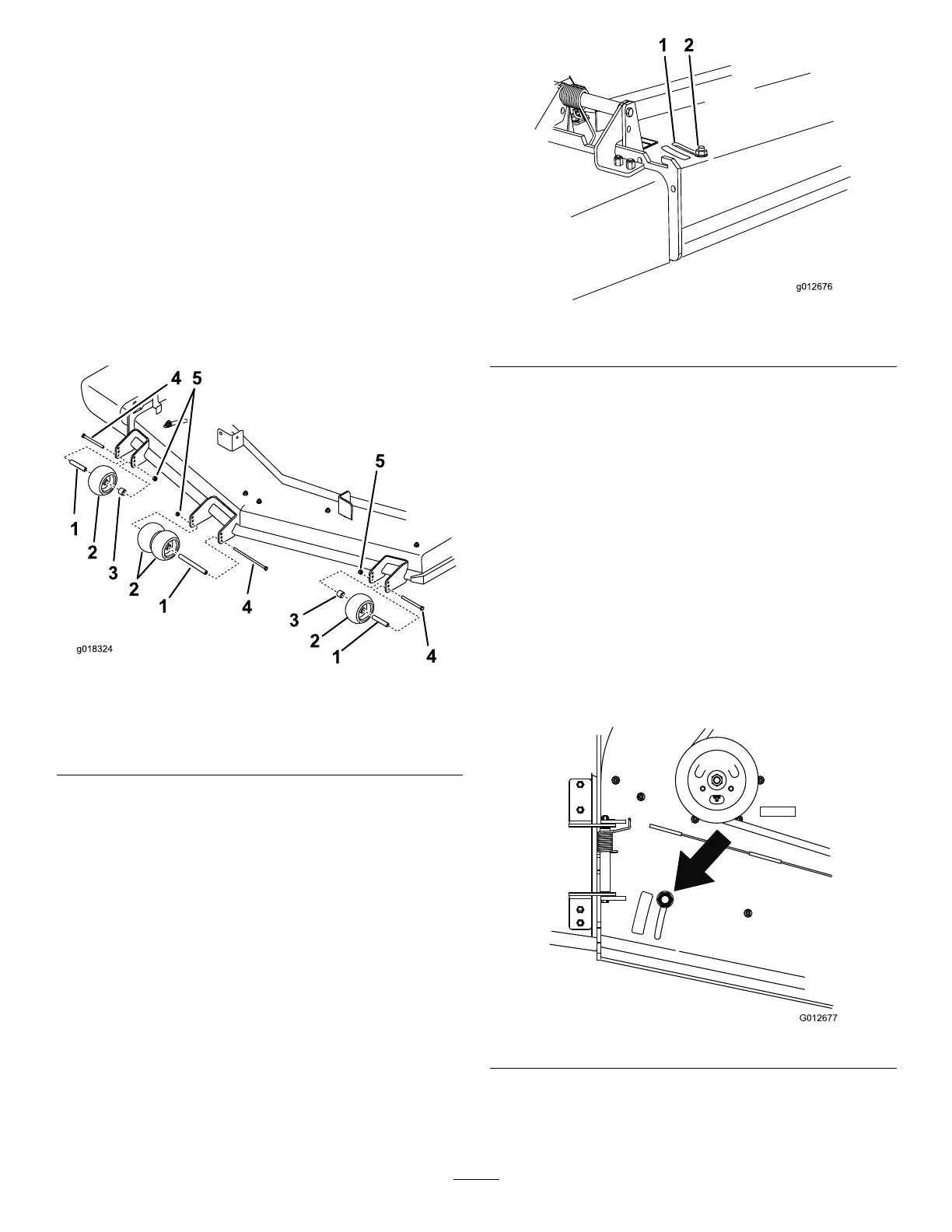

3.Removethenutandboltpositiontheanti-scalprollers
andinstallthenutandbolt.Ensurethespacersand
bushingsareinstalledasshown.
g018324
Figure29
1.Bushing4.Bolt
2.Anti-scalproller5.Nut
3.Spacer
AdjustingtheFlowBafe
Themowerdischargeowcanbeadjustedfordifferenttypes
ofmowingconditions.Positionthecamlockandbafeto
givethebestqualityofcut.
1.DisengagethePTO,movethemotioncontrolleversto
theneutrallockedpositionandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforallmoving
partstostopbeforeleavingtheoperatingposition.
3.Toadjustthebafe,loosenthenut(
Figure30).
4.Adjustthebafeandnutintheslottothedesired
dischargeowandtightenthenut.
g012676
1 2
Figure30
1.Slot
2.Nut
PositioningtheFlowBafe
Thefollowingguresareonlyrecommendationsforuse.
Adjustmentswillvarybygrasstype,moisturecontent,and
heightofgrass.
Note:Iftheenginepowerdrawsdownandthemower
groundspeedisthesame,openupthebafe.
PositionA
Thisisthefullrearposition(seeFigure31).Thesuggested
useforthispositionisafollows.
•Useforshort,lightgrassmowingconditions.
•Useindryconditions.
•Forsmallergrassclippings.
•Propelsgrassclippingsfartherawayfromthemower.
G012677
Figure31
PositionB
Usethispositionwhenbagging(Figure32).
25
