Toro 74549 - Cushion Access for Maintenance

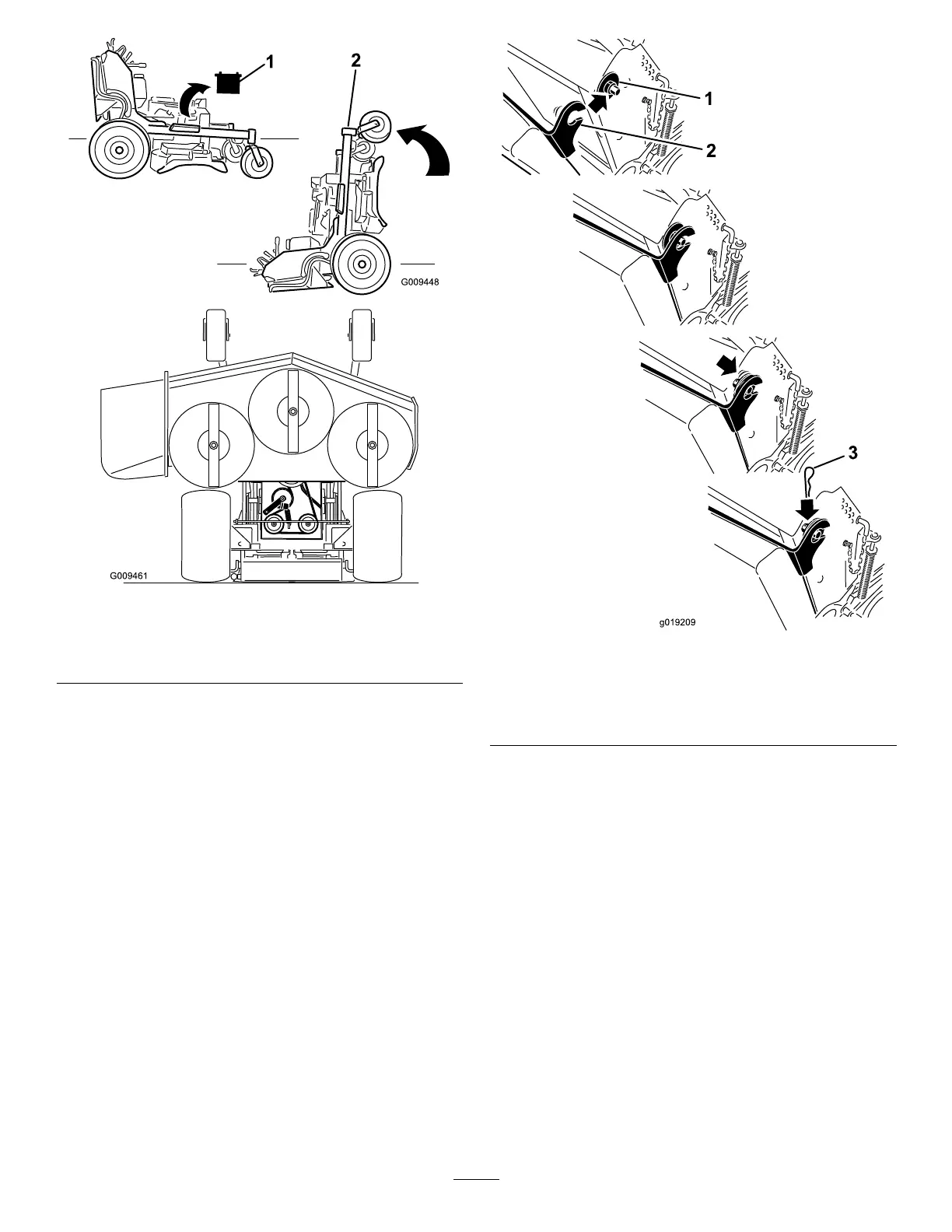

Figure36
1.Removebattery
2.Withtwopeople,liftthe
frontendofthemower
(ensuretheplatformisup)
ReleasetheCushionforRear
Access
Thecushioncanbereleasedforrearaccesstothemachine
formaintenanceoradjustment.
1.Lowertheplatform.
2.Removethehairpincotterpinsoneachsideofthe
cushion.
3.Slidethelargewasherswithplasticbushingstothe
inside.
4.Removethecushionandlowerittotheplatform.
5.Performanymaintenanceoradjustmentonthe
machine.
6.Raisethecushionandslideitontothepinsonboth
sidesofthemachine(
Figure37).
7.Slidethelargewashersplasticbushingsintothe
cushionbracketandsecurethemwithahairpincotter
pin(
Figure37).
g019209
Figure37
1.Plasticbushingwithlarge
washer
3.Hairpincotterpin
2.Cushionbracketwithkey
hole
29
