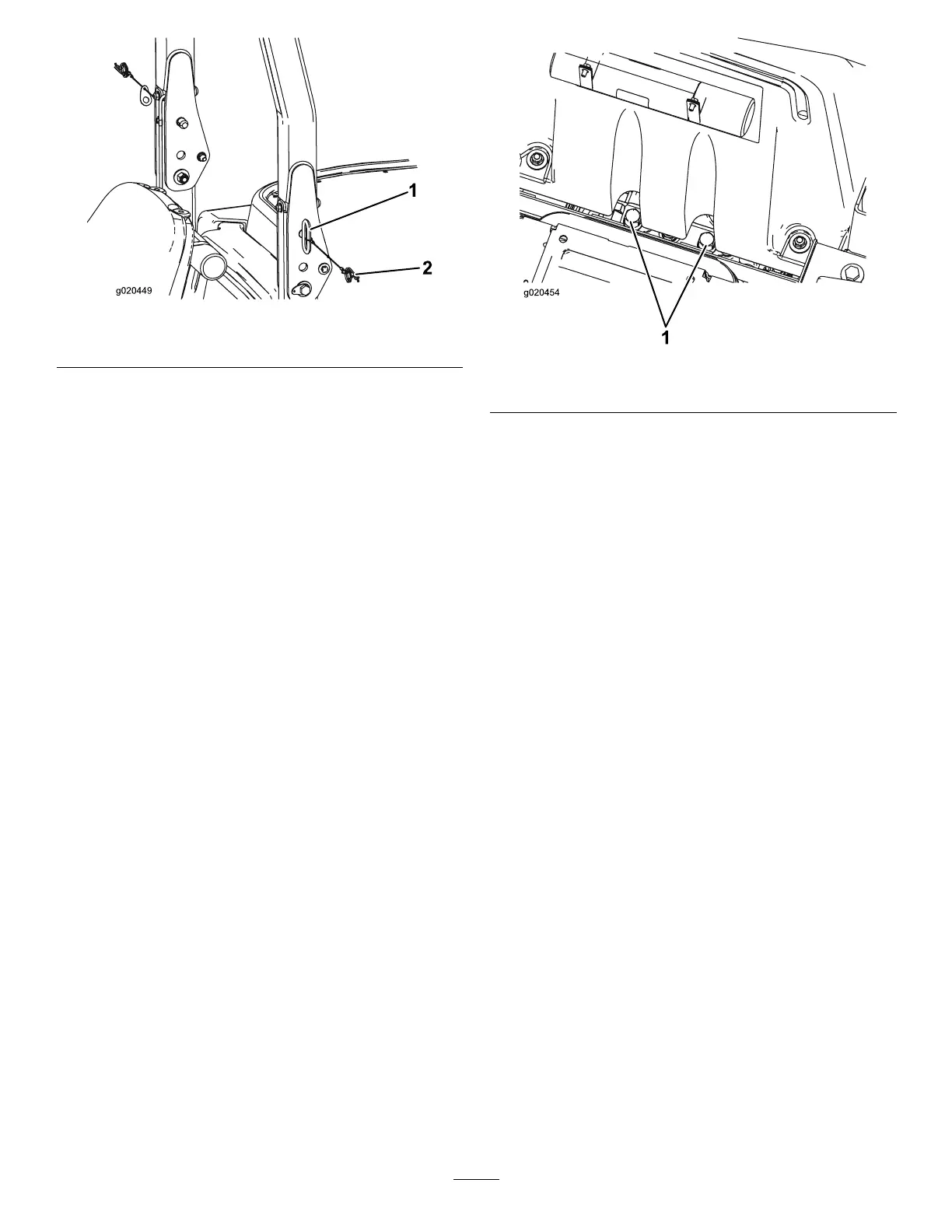

Figure32
1.Pin(2)2.Hairpincotter(2)
2.Lowertherollbartothedownposition.
3.Installthetwopinsandsecurethemwiththehairpin
cotterpins.
Important:Ensurethattheseatissecuredwith
theseatlatch.
4.Toraisetherollbar,removethehairpincotterpins
andremovethetwopins.
5.Raisetherollbartotheuprightpositionandinstallthe
twopinsandsecurethemwiththehairpincotterpins
Important:Alwaysusetheseatbeltwhentherollbar
isintheraisedandlockedposition.Donotusetheseat
beltwhentherollbarisintheloweredposition.
PushingorTowingthe
Machine
Inanemergency,themachinecanbemovedforwardby
actuatingthebypassvalveinthevariabledisplacement
hydraulicpumpandpushingortowingthemachine.
Important:Donotpushortowthemachinefasterthan
3-4.8km/h(2-3MPH)becauseinternaltransmission
damagemayoccur.Thebypassvalvesmustbeopen
wheneverthemachineispushedortowed.
1.Raisetheseat.Thebypassvalvesarelocatedbelowthe
frontofthefueltank(Figure33).
2.Rotateeachvalve3turnscounter-clockwisetoopen
andallowoiltobypassinternally.Donotopen
morethan3turns.Becauseuidisbypassed,the
machinecanbeslowlymovedwithoutdamagingthe
transmission.
3.Closethebypassvalvesbeforestartingtheengine.
Torqueto70N-m(52ft-lb)toclosethevalve.
Figure33
1.Bypassvalve(2)
Important:Ifthemachinemusttobepushedor
towedinreverse,thecheckvalveinthefour-wheel
drivemanifoldmustalsobebypassed.Tobypass
thecheckvalve,connectahoseassembly(Hose
PartNo.95-8843,CouplerFittingNo.95-0985
[Qty.2],andHydraulicFittingNo.340-77[Qty.
2])tothereversetractionpressuretestport,
locatedonthehydrostat,andontheportlocated
in-betweenportsM8andP2onthereartraction
manifoldwhichislocatedbehindthefronttire.
JackingPoints
Therearejackingpointslocatedatthefrontandrearofthe
machine.
Ontheframeattheinsideofeachfrontdrivetire
Atthecenteroftherearaxle
TieDowns
Therearetiedownslocatedatthefront,rearandsidesof
themachine.
Twoonthefrontoftheoperator'splatform
Therearbumper
OperatingCharacteristics
Practicedrivingthemachinebecauseithasahydrostatic
transmissionanditscharacteristicsaredifferentthanmany
turfmaintenancemachines.Somepointstoconsiderwhen
operatingthetractionunit,cuttingunit,orotherimplements
arethetransmission,enginespeed,loadonthecuttingblades
orotherimplementcomponents,andtheimportanceofthe
brakes.
WithToroSmartPower™,theoperatordoesnothave
tolistentotheenginespeedinheavyconditions.Smart
34
