automaticallymovetoHighorLowidle,dependingonwhich
oftheswitchisdepressed.
PTOSwitch
ThePTOswitch(Figure4)hastwopositions:Out(start)
andIn(stop).PullthePTObuttonouttoengagethecutting
unitblades.Pushinthebuttontodisengagethecuttingunit
blades.
Hi-LoSpeedControl
Theswitch(Figure4)allowsthespeedrangetoincreasefor
transportofthemachine.Cuttingdeckswillnotoperate
inhighrange.ToswitchbetweentheHighandLorange,
thedecksmustberaised,PTOdisengaged,cruisecontrol
disengaged,tractionpedalinneutralpositionandthemachine
mustbemovingataslowspeed.
LiftSwitches
Theliftswitches(Figure4)raiseandlowerthecutting
units.Presstheswitchesforwardtolowerthecuttingunits
andbackwardtoraisethecuttingunits.Whenstartingthe
machine,withthecuttingunitsinthedownposition,pressthe
liftswitchdowntoallowthecuttingunitstooatandmow.
Note:ThedeckswillnotlowerwhileintheHIspeedrange
andtheywillnotraiseorloweriftheoperatorisoutofthe
seatwhentheengineisrunning.Also,thedeckswilllower
withthekeyintheOnpositionandtheoperatorintheseat.
CruiseControlSwitch
Thecruisecontrolswitch(Figure4)locksinthepedal
positiontomaintainthedesiredgroundspeed.Pressingthe
rearoftheswitchturnsoffthecruisecontrol,themiddle
positionoftheswitchenablesthecruisecontrolfunctionand
thefrontoftheswitchsetsthedesiredgroundspeed.
Note:Pressingeitherbrakepedalormovingthetraction
pedalintothereverseposition,foronesecond,willalso
disengagethepedalposition.
PowerPoint

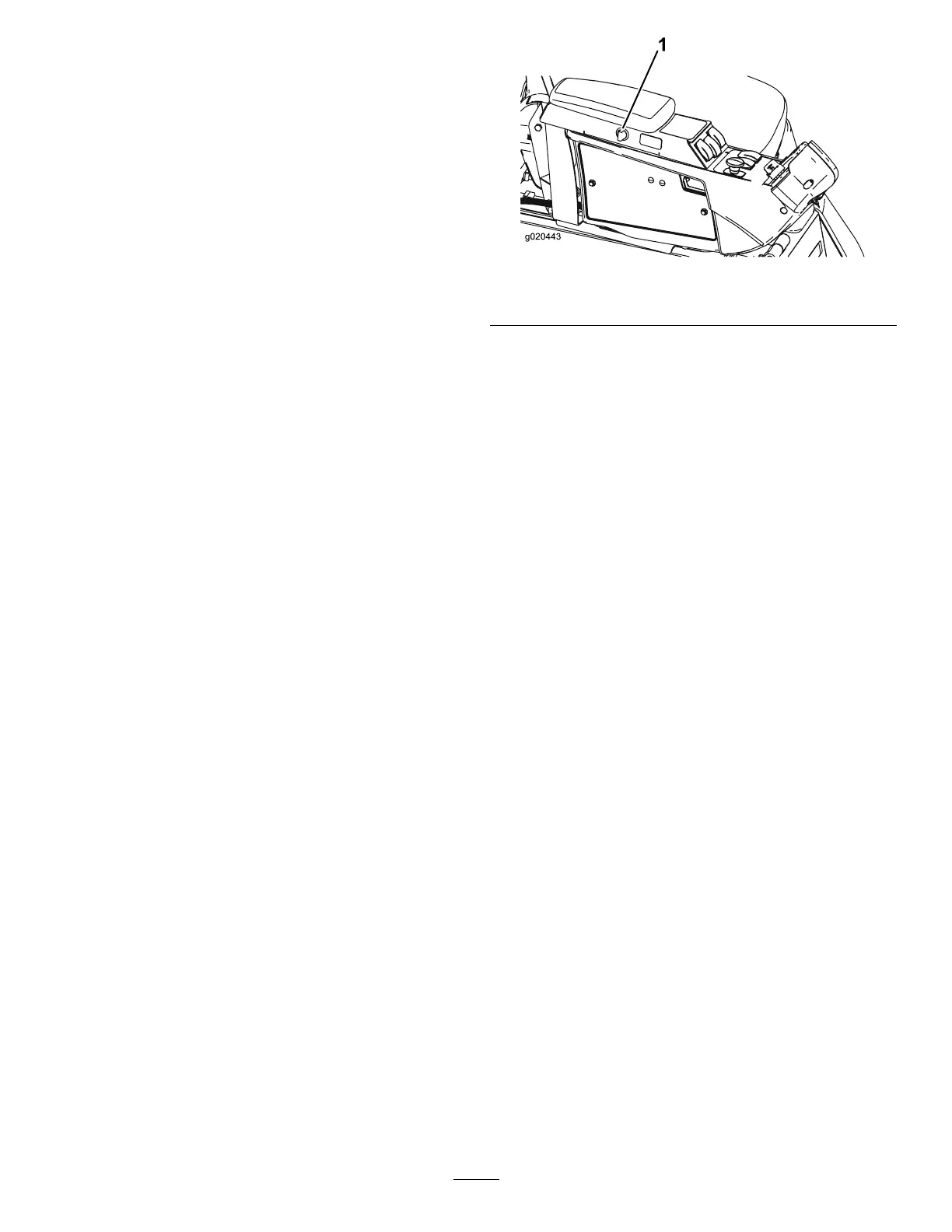

Thepowerpoint(Figure5)isusedtopoweroptional
electricalaccessories.
Figure5
1.Powerpoint
SeatAdjustments
ForeandAftAdjustingLever
Pulloutonthelevertoslidetheseatforeoraft(Figure6).
SeatArmRestAdjustingKnob
Rotatetheknobtoadjusttheseatarmrestangle(Figure6).
SeatBackAdjustingLever
Movethelevertoadjusttheseatbackangle(Figure6).
Weightgauge
Indicateswhentheseatisadjustedtotheweightofthe
operator(Figure6).Heightadjustmentismadebypositioning
thesuspensionwithintherangeofthegreenregion.
17
