Toro Groundsmaster 4010-D - Lubrication; Greasing the Bearings and Bushings; Traction Unit; Front Cutting Unit

Lubrication
GreasingtheBearingsand
Bushings
Themachinehasgreasettingsthatmustbelubricated
regularlywithNo.2GeneralPurposeLithiumBaseGrease.
Ifthemachineisoperatedundernormalconditions,lubricate
allbearingsandbushingsafterevery50hoursofoperationor
immediatelyaftereverywashing.
Thegreasettinglocationsandquantitiesare:
TractionUnit
ServiceInterval:Every50hours

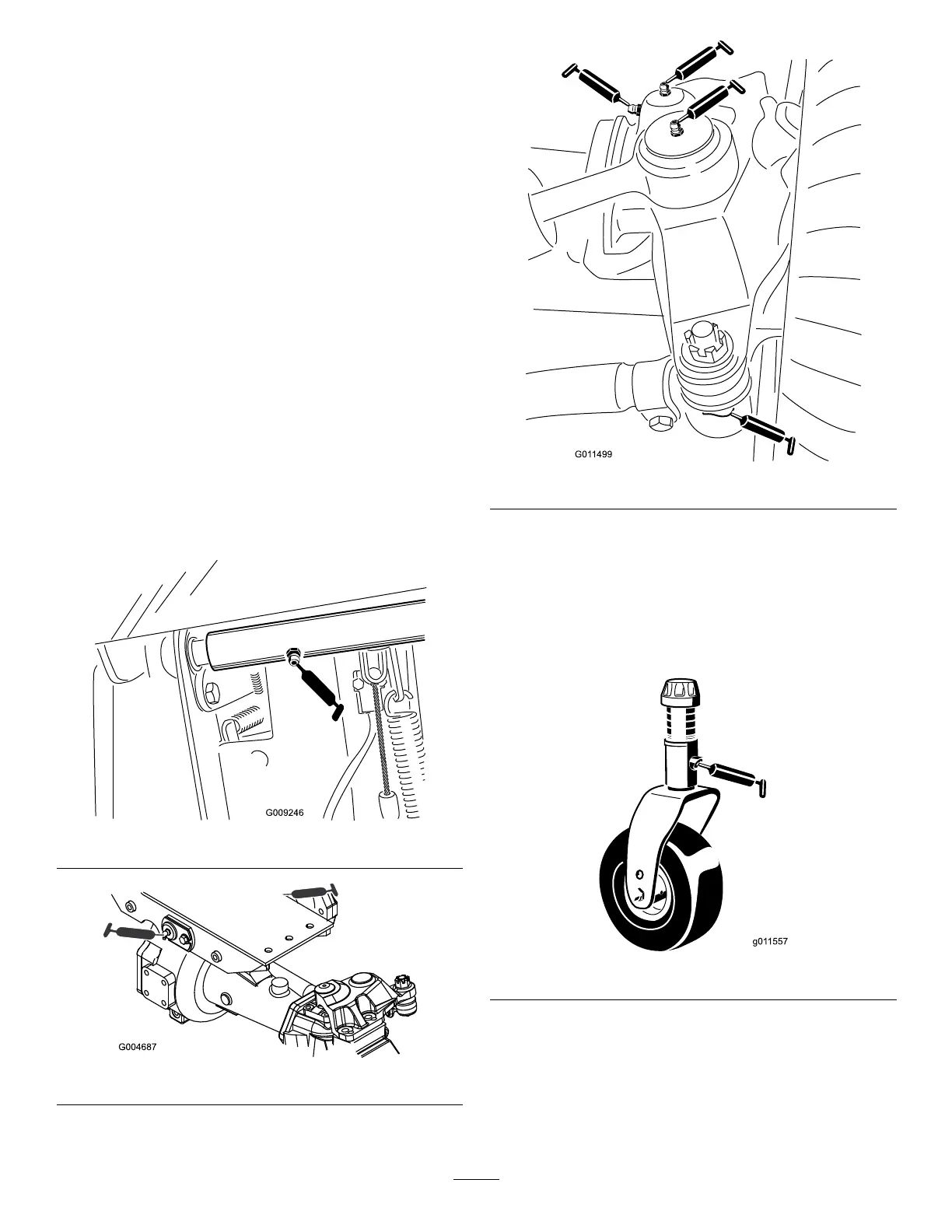

•Brakepedalpivotshaftbearings(2)(Figure36)
•Frontandrearaxlepivotbushings(2)(
Figure37)
•Steeringcylinderballjoints(2)(Figure38)
•Tierodballjoints(2)(Figure38)
•Kingpinbushings(2)(Figure38).
Thetopttingonthekingpinshouldonlybe
lubricatedannually(2pumps).
Figure36
Figure37
Figure38
FrontCuttingUnit
•Castorforkshaftbushings(2)(Figure39)
•Spindleshaftbearings(3)(locatedunderthepulley)
(Figure40)
•Idlerarmpivotbushings(2)(Figure40)
Figure39
38
