jelly,orlightgreasetopreventcorrosion.Slidethe
rubberbootoverthepositiveterminal.
4.Closethebatterycover.
Fuses

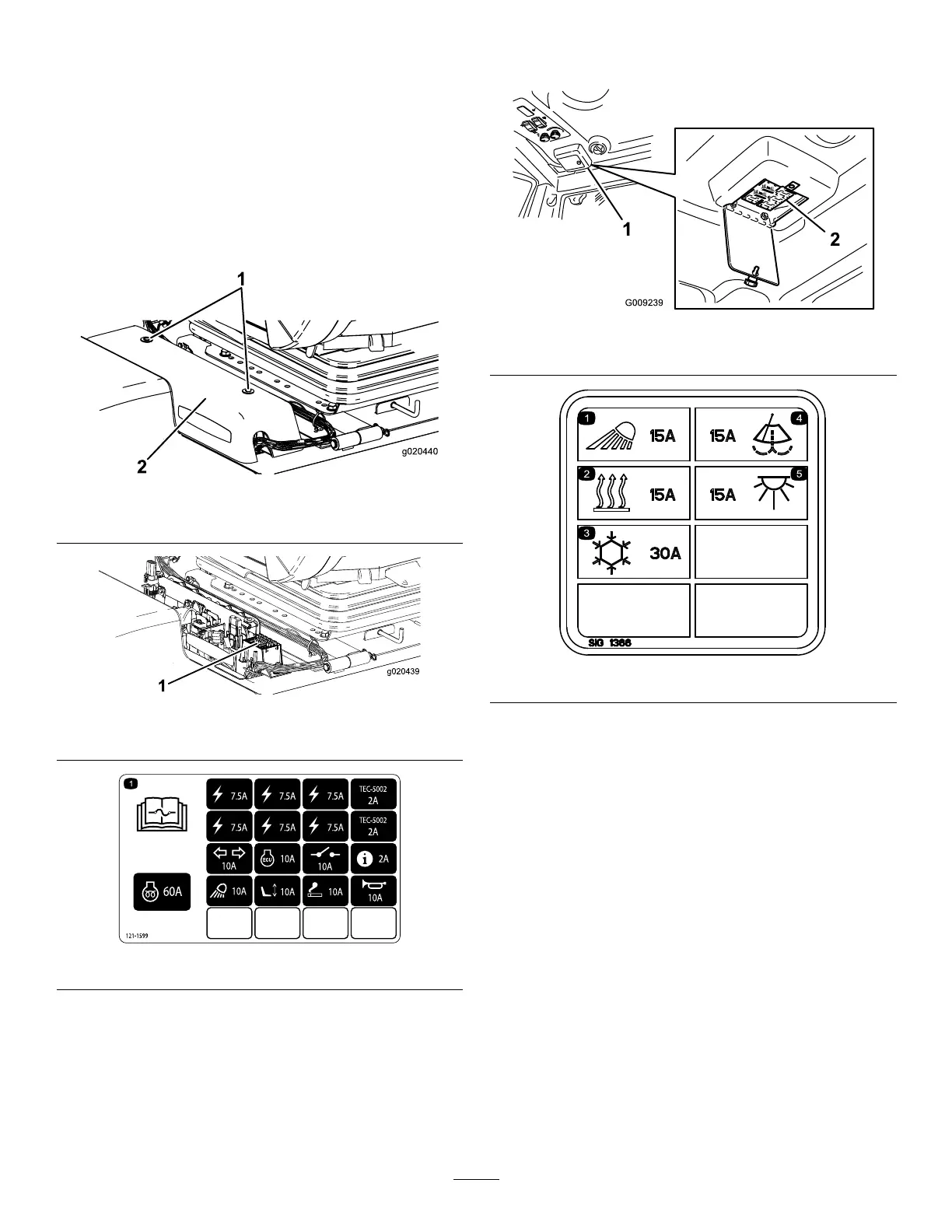

Thetractionunitfuses(Figure57thruFigure59)arelocated
underthepowercentercover.
RemovethetwoAllenheadscrewssecuringthepowercenter
covertotheframeandremovethecover(
Figure57).
Figure57
1.Powercentercover
2.Allenheadscrews(2)
Figure58
1.Fuses
Figure59
Thecabfuses(Figure60&Figure61)arelocatedinthefuse
boxinthecabheadliner(Cabmodelonly).
Figure60
1.Cabfusebox
2.Fuses
Figure61
45
