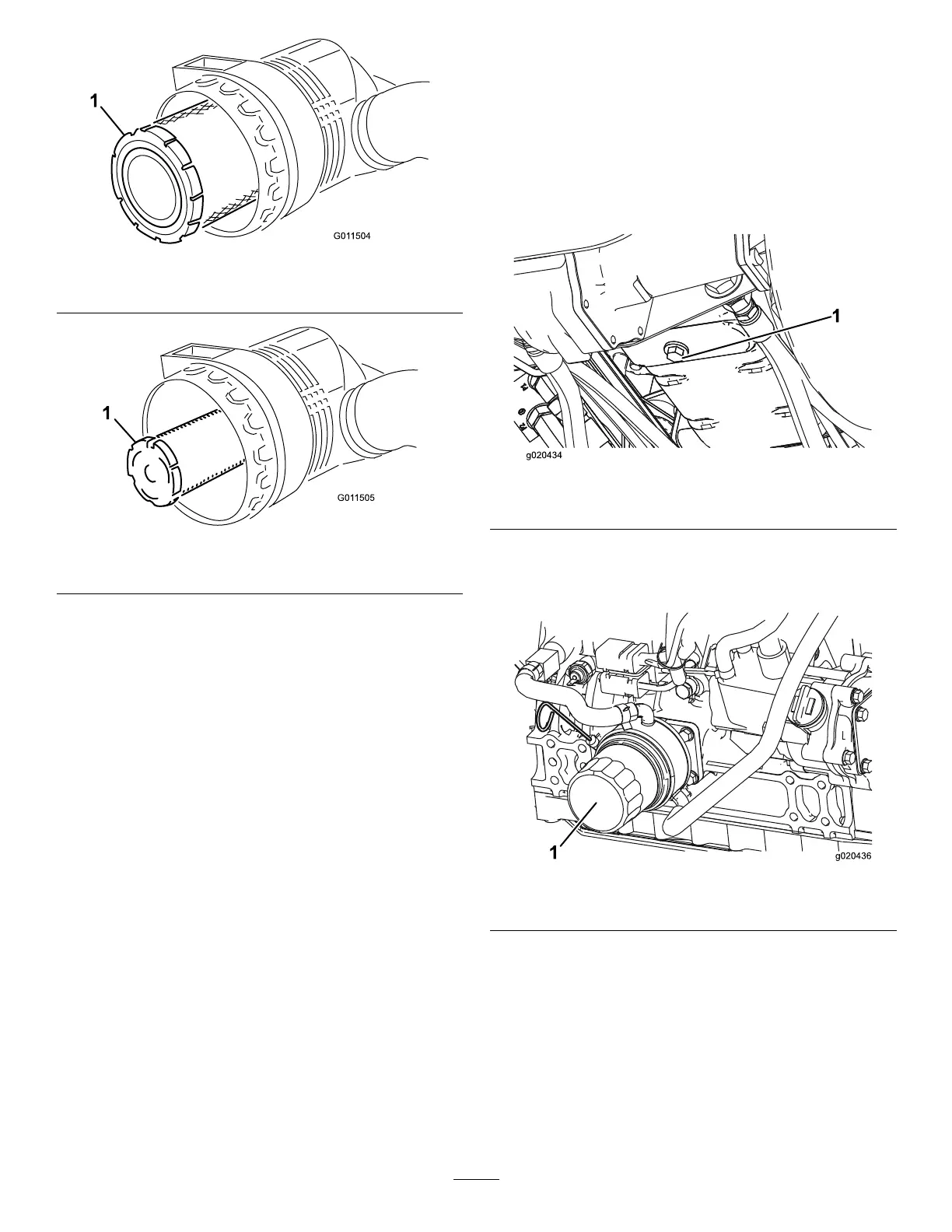

Figure49
1.Aircleanerprimarylter
Figure50
1.Aircleanersafetylter
Important:Neverattempttocleanthesafetylter
(Figure50).Replacethesafetylterwithanew
oneaftereverythreeprimarylterservices.
4.Replacetheprimarylter(Figure49).
5.Insertthenewlterbyapplyingpressuretotheouter
rimoftheelementtoseatitinthecanister.Donot
applypressuretotheexiblecenterofthelter.
6.Cleanthedirtejectionportlocatedintheremovable
cover.Removetherubberoutletvalvefromthecover,
cleanthecavityandreplacetheoutletvalve.
7.Installthecoverorientingtherubberoutletvalve
(
Figure48)inadownwardposition-between
approximately5:00to7:00whenviewedfromtheend.
Securethelatch.
ServicingtheEngineOiland
Filter
ServiceInterval:Every250hours
Changetheoilandlterevery250hours.
1.Removethedrainplug(Figure51)andlettheoilow
intoadrainpan.Whenalltheoilisdrained,install
thedrainplug.
Figure51
1.Engineoildrainplug
2.Removetheoillter(Figure52).Applyalightcoatof
cleanoiltothenewltersealbeforescrewingiton.
Donotovertighten.
Figure52
1.Engineoillter
3.Addoiltothecrankcase;refertoCheckingtheEngine
Oil.
41
