Toro Groundsmaster 4010-D - Engine Maintenance; Air Cleaner Maintenance; Servicing the Air Cleaner

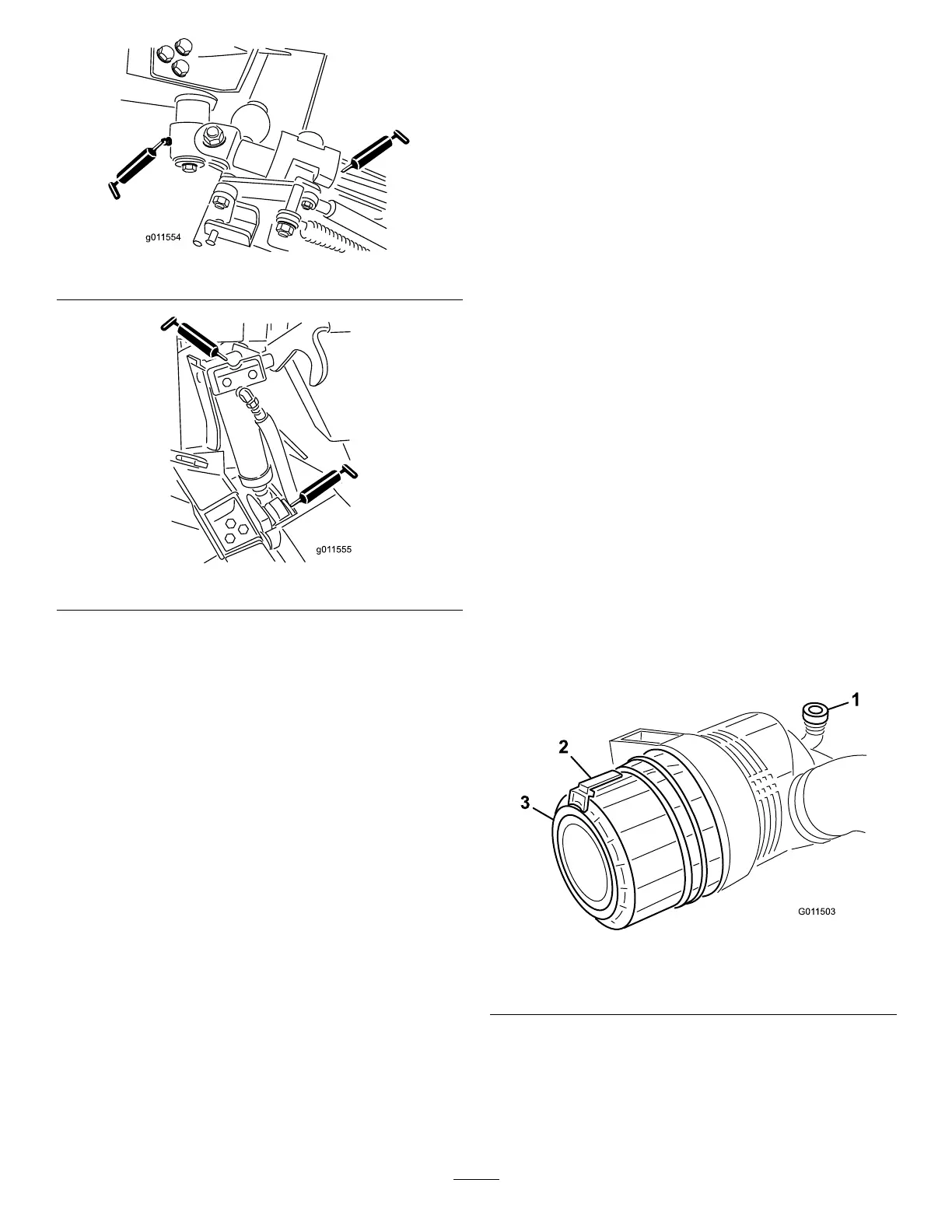

Figure46
Figure47
EngineMaintenance
AirCleanerMaintenance
•Checktheaircleanerbodyfordamagewhichcouldcause
anairleak.Replaceifdamaged.Checkthewholeintake
systemforleaks,damageorloosehoseclamps.
•Servicetheaircleanerlteronlywhentheservice
indicatorrequiresitorevery400hours(morefrequently
inextremelydustyordirtyconditions).Changingtheair
lterbeforeitisnecessaryonlyincreasesthechanceof
dirtenteringtheenginewhenthelterisremoved.
•Besurethecoverisseatedcorrectlyandsealswiththe
aircleanerbody.
ServicingtheAirCleaner
ServiceInterval:Beforeeachuseordaily
Every50hours
Every400hours
1.Pullthelatchoutwardandrotatetheaircleanercover
counterclockwise(
Figure48).
2.Removethecoverfromtheaircleanerbody.Before
removingthelter,uselowpressureair(40psi,clean
anddry)tohelpremovelargeaccumulationsofdebris
packedbetweenoutsideofprimarylterandthe
canister.Avoidusinghighpressureairwhichcould
forcedirtthroughthelterintotheintakearea.This
cleaningprocesspreventsdebrisfrommigratinginto
theintakewhentheprimarylterisremoved.
Figure48
1.Aircleanerindicator3.Aircleanercover
2.Aircleanerlatch
3.Removetheprimarylter(Figure49).Cleaningofthe
usedelementisnotrecommendedduetothepossibility
ofdamagetotheltermedia.Inspectthenewlterfor
shippingdamage,checkingthesealingendofthelter
andthebody.Donotuseadamagedelement.Donot
removethesafetylter(
Figure50).
40
