g017810

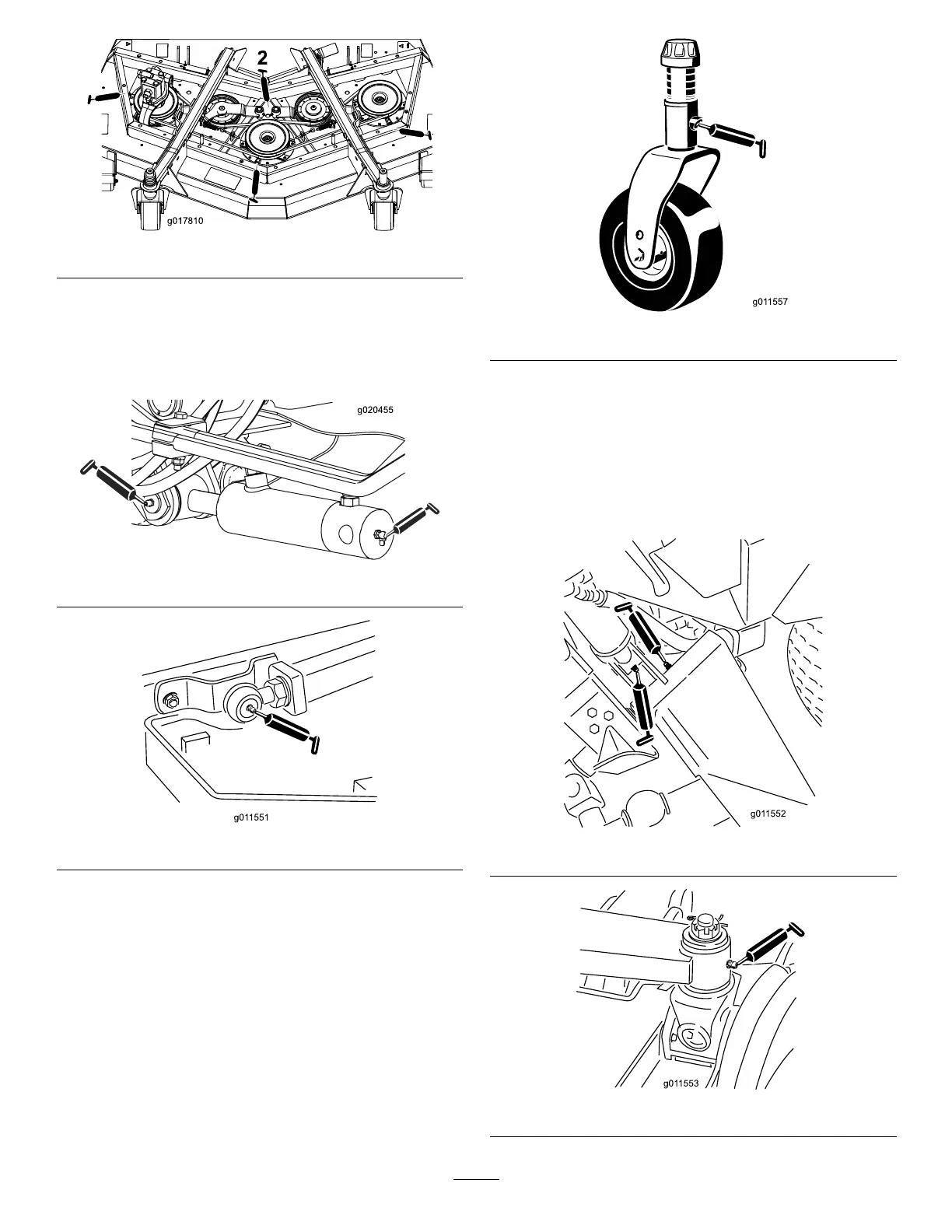

Figure40
FrontLiftAssemblies
•Liftarmcylinderbushings(2each)(Figure41)
•Liftarmballjoints(2)(Figure42)
Figure41
Figure42
SideCuttingUnits
•Castorforkshaftbushing(1)(Figure43)
•Spindleshaftbearings(2each)(locatedunderthepulley)
•Idlerarmpivotbushings(1)(locatedontheidlerarm)
Figure43
SideLiftAssemblies
•Mainliftarmbushings(6)(Figure44andFigure45)
•Bellcrankpivotbushings(2)(Figure46)
•Reararmbushings(4)(
Figure46)
•Liftcylinderbushings(4)(Figure47)
Figure44
Figure45
39
