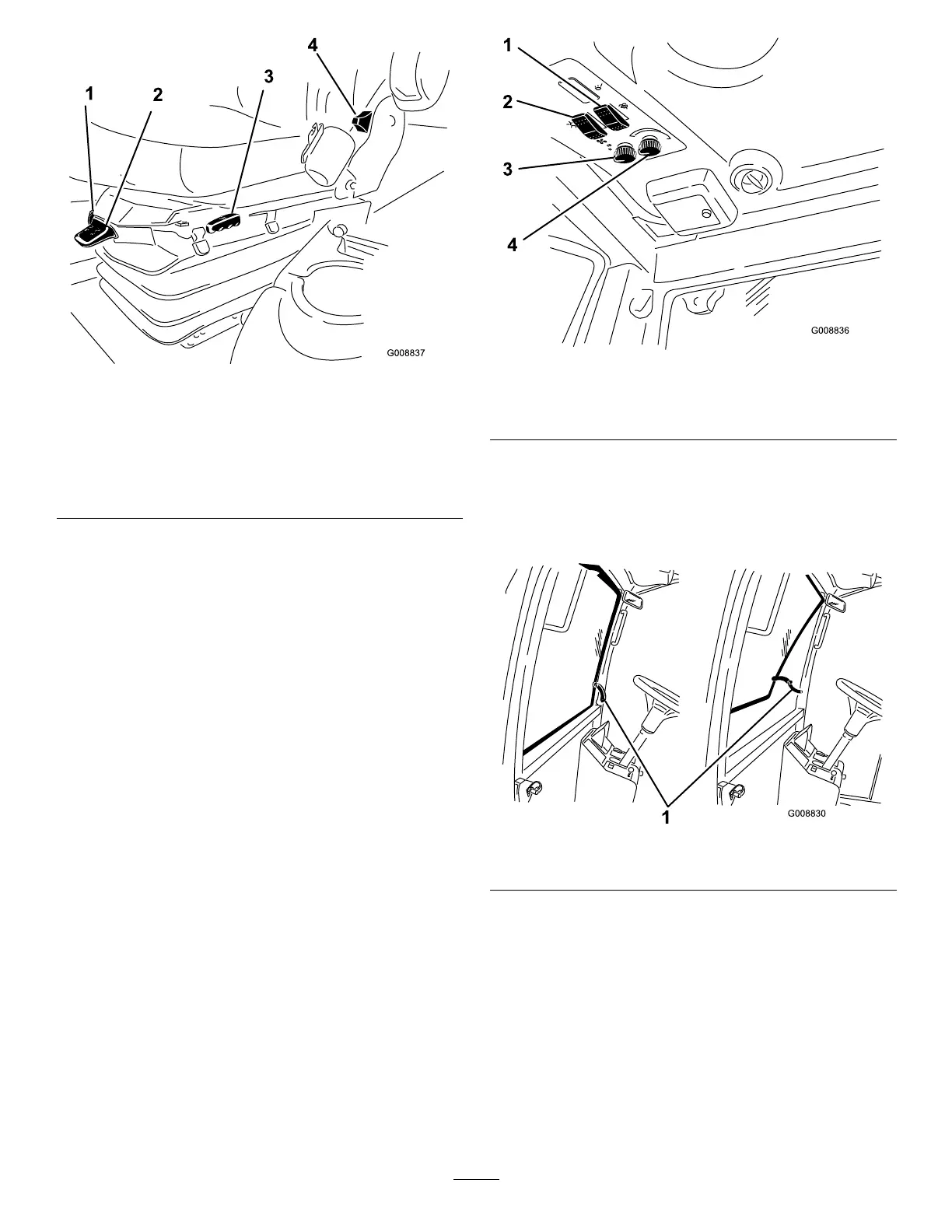

Figure6
1.Weightgauge
4.Seatbackadjustinglever
2.Weightadjustinglever5.Armrestadjustingknob
(notshown-locatedunder
armrest)
3.ForeandAftadjusting
lever
WeightAdjustingLever
Adjustforoperatorweight(Figure6).Pullupontheleverto
increasetheairpressureandpushdowntodecreasetheair
pressure.Theproperadjustmentisattainedwhentheweight
gaugeisinthegreenregion.
CabControls
Cabmodelonly
WindShieldWiperSwitch
Pressfrontofswitchtoactivatethewindshieldwipers
(Figure7)andrearofswitchtoturnoffthewipers.
AirConditioningSwitch
Pressfrontofswitchtoactivatetheairconditioning(Figure
7)andrearofswitchtoturnofftheairconditioning.
FanControl
Rotatethefancontrolknobtoregulatethespeedofthefan
(Figure7).
TemperatureControl
Rotatethetemperaturecontrolknobtoregulatetheair
temperatureinthecab(
Figure7).
Figure7
1.Windshieldwiperswitch3.Fancontrol
2.Airconditioningswitch4.Temperaturecontrol
WindShieldLatch
Liftuponlatchestoopenthewindshield(Figure8).Press
inonlatchtolockwindshieldinopenposition.Pulloutand
downonlatchtocloseandsecurewindshield.
Figure8
1.Windshieldlatch
RearWindowLatch
Liftuponlatchestoopentherearwindow.Pressinonlatch
tolockwindowinopenposition.Pulloutanddownonlatch
tocloseandsecurewindow(Figure8).
Important:Therearwindowmustbeclosedbefore
openingthehoodordamagemayoccur.
