ENGINE
4-9GT Series Tractors Service Manual
4
Fig 417 PICT-7417
Fig 418 PICT-7245
Fig 416 PICT-7423

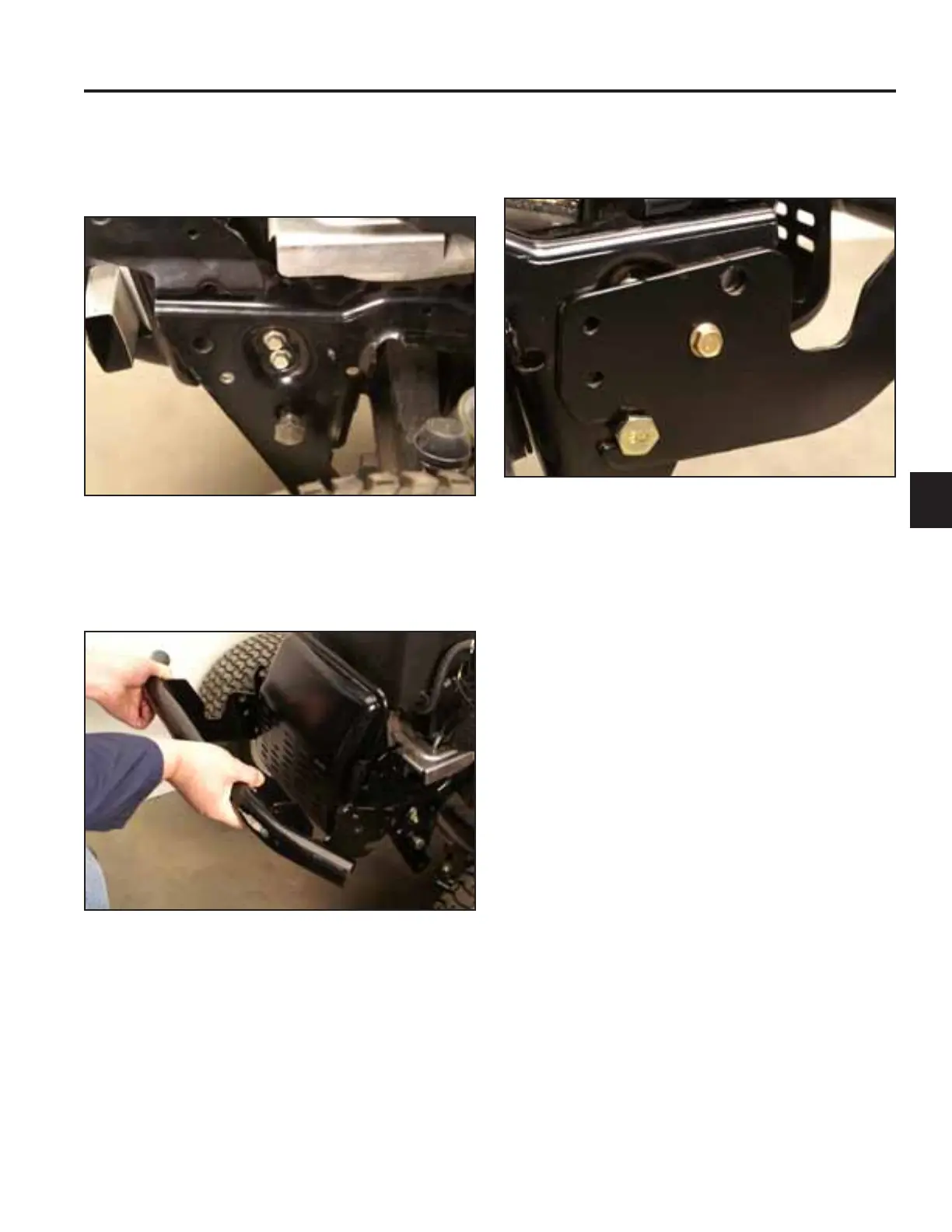

19. Position the bumper to the frame (Fig. 417).
20. Install 2 screws securing the bumper to the frame (1
bolt on the left and 1 on the right) (Fig. 418).
18. Install 4 screws securing the left and right side bum-
per brackets to the frame (2 on the left and 2 on the
right) (Fig. 416).
21. Install the hood Refer to “Hood Installation” on page
3-34.
22. Operate the tractor to ensure all controls operate
properly.
