MOWER DECK
7-46 GT Series Tractors Service Manual
7

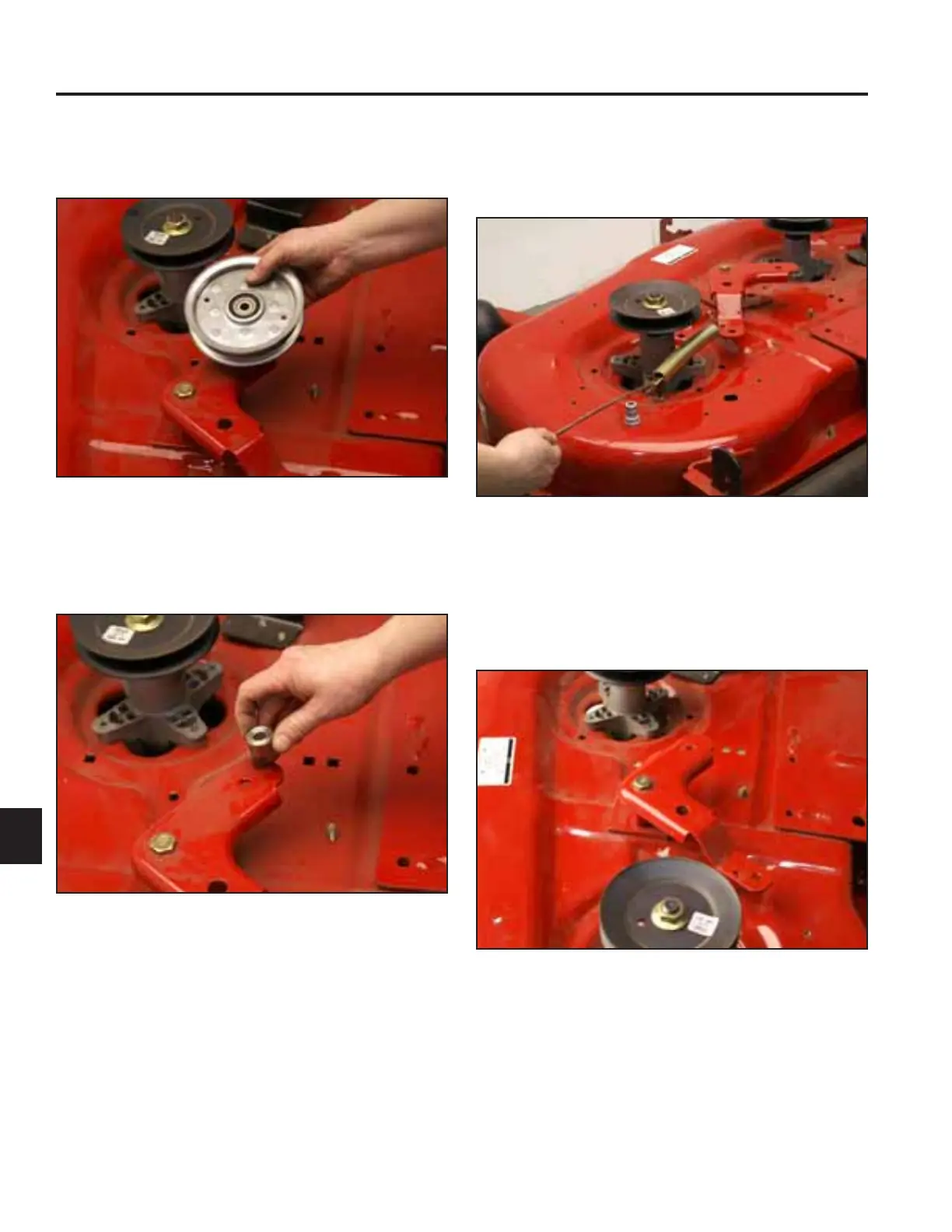

4. Remove the idler pulley from the idler bracket (Fig.
898).
Fig 898 PICT-7854
5. Remove the spacer from the idler bracket (Fig. 899).
Fig 899 PICT-7856
6. Using a spring removal tool (Toro part no. 92-5771),
remove the idler spring from the idler bracket and
mower deck (Fig. 900).
Fig 900 PICT-7859
7. Remove the nut and lock washer from the shoulder
bolt securing the idler bracket to the mower deck
(Fig. 901).
Fig 901 PICT-7863
