QUICKSTICK®Disassembly(continued)

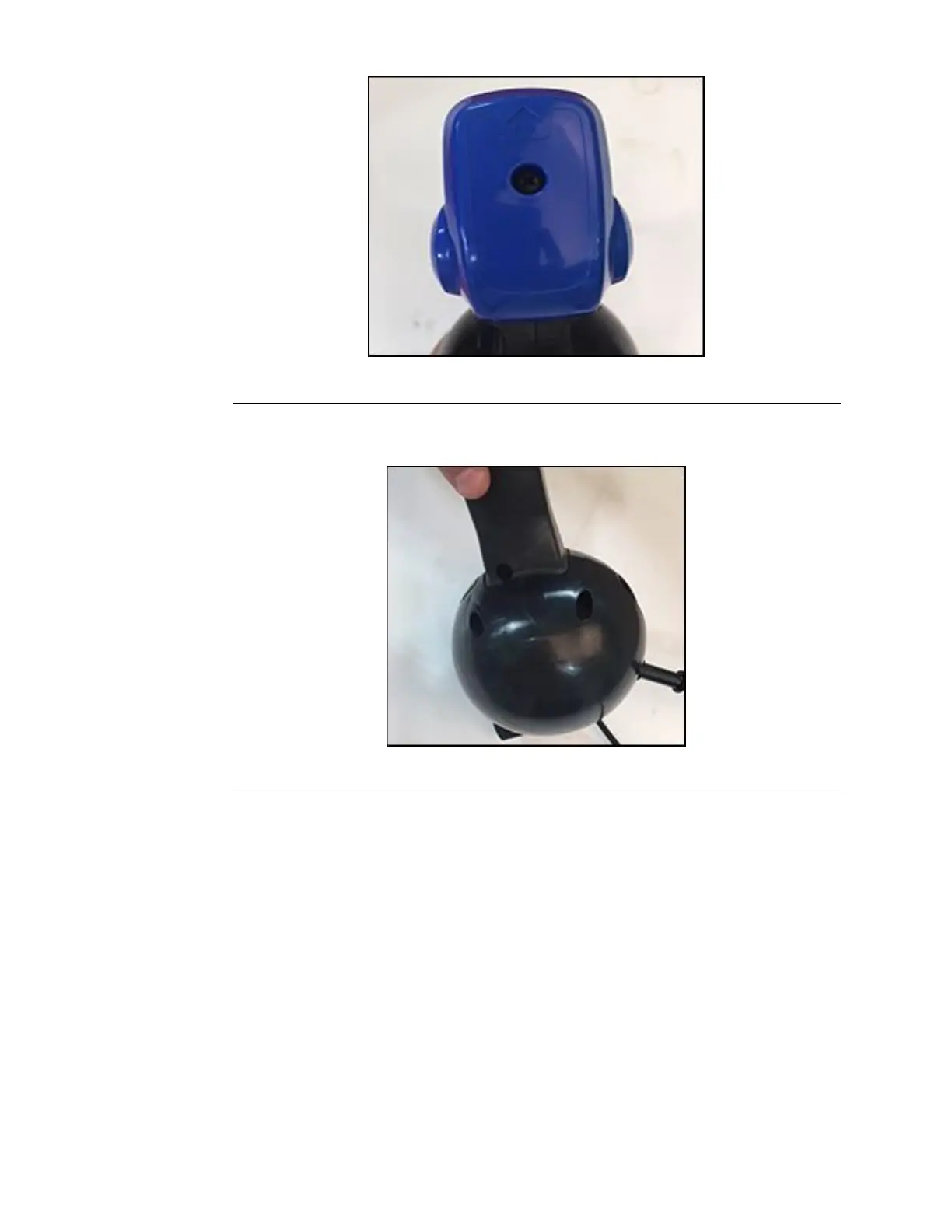

Figure15
2.Removethe2screwsontheRHoftheQuickStickglobe(thepartthatlooks
likeaball).Removebothhalvesandsetaside.
Figure16
3.Removethelocknutfromtheshoulderbolt.Slidethechutecontrolrodoff
andremovethefrictionwasher.
4.HoldtheQuickSticksothatthe5screwsholdingthehandlehalvesare
facingup.Removethe5screwsandliftoffthetophandlehalf.
Controls:ServiceandRepairs
Page5–8
POWERMAX®HDServiceManual
3424-820RevA
