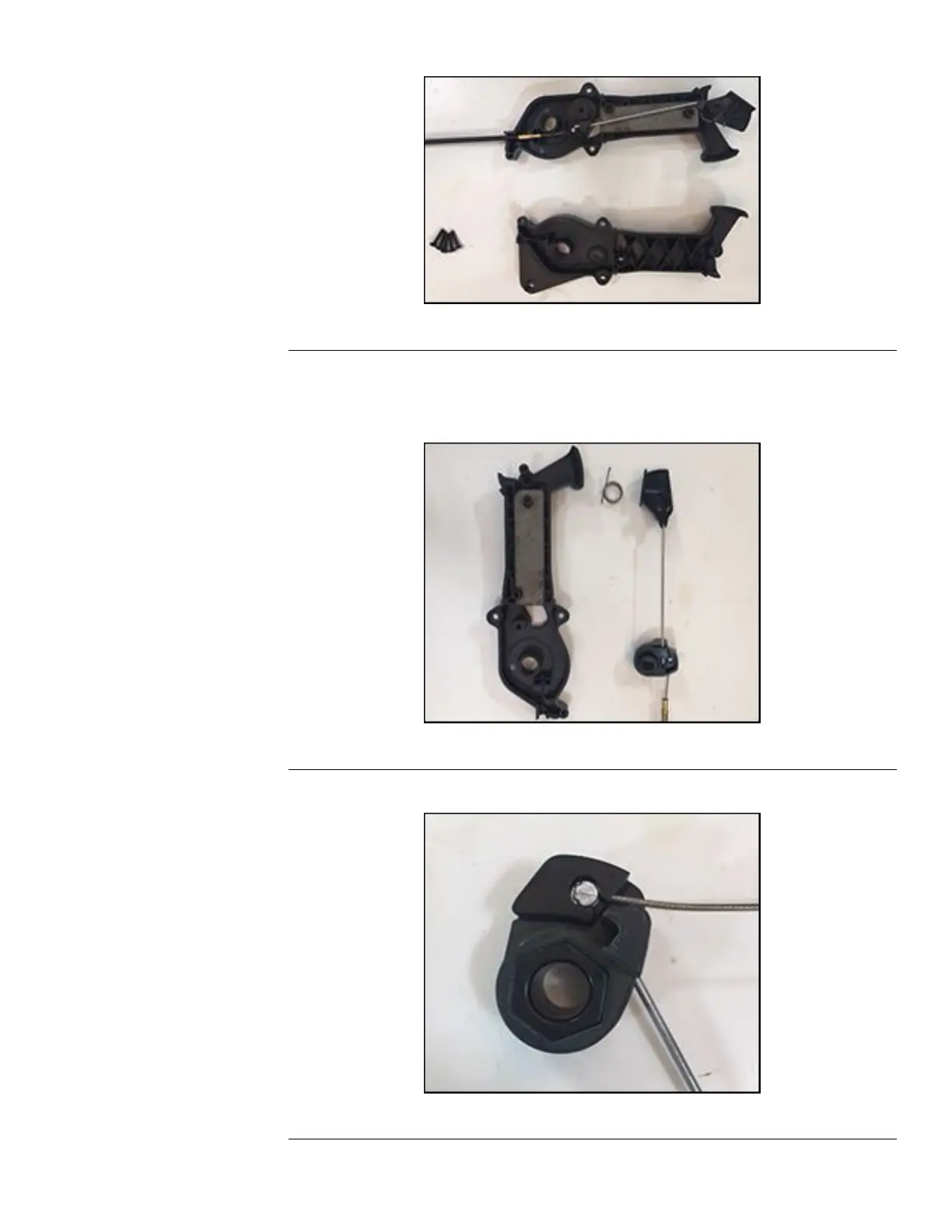

QUICKSTICK®Disassembly(continued)

Figure17

5.Liftthemetallatchpawloffthehexonthecablelever.Removethelatch

triggerandspring.

Note:Noticetheorientationofthepawltotheleverforreassembly.

Figure18

6.Rotatethecableuntilthebarrelttingslidesoffthecablelever.

Figure19

POWERMAX®HDServiceManual

Page5–9

Controls:ServiceandRepairs

3424-820RevA
