TractionDriveSystemRemoval(WheelClutchModels)(continued)

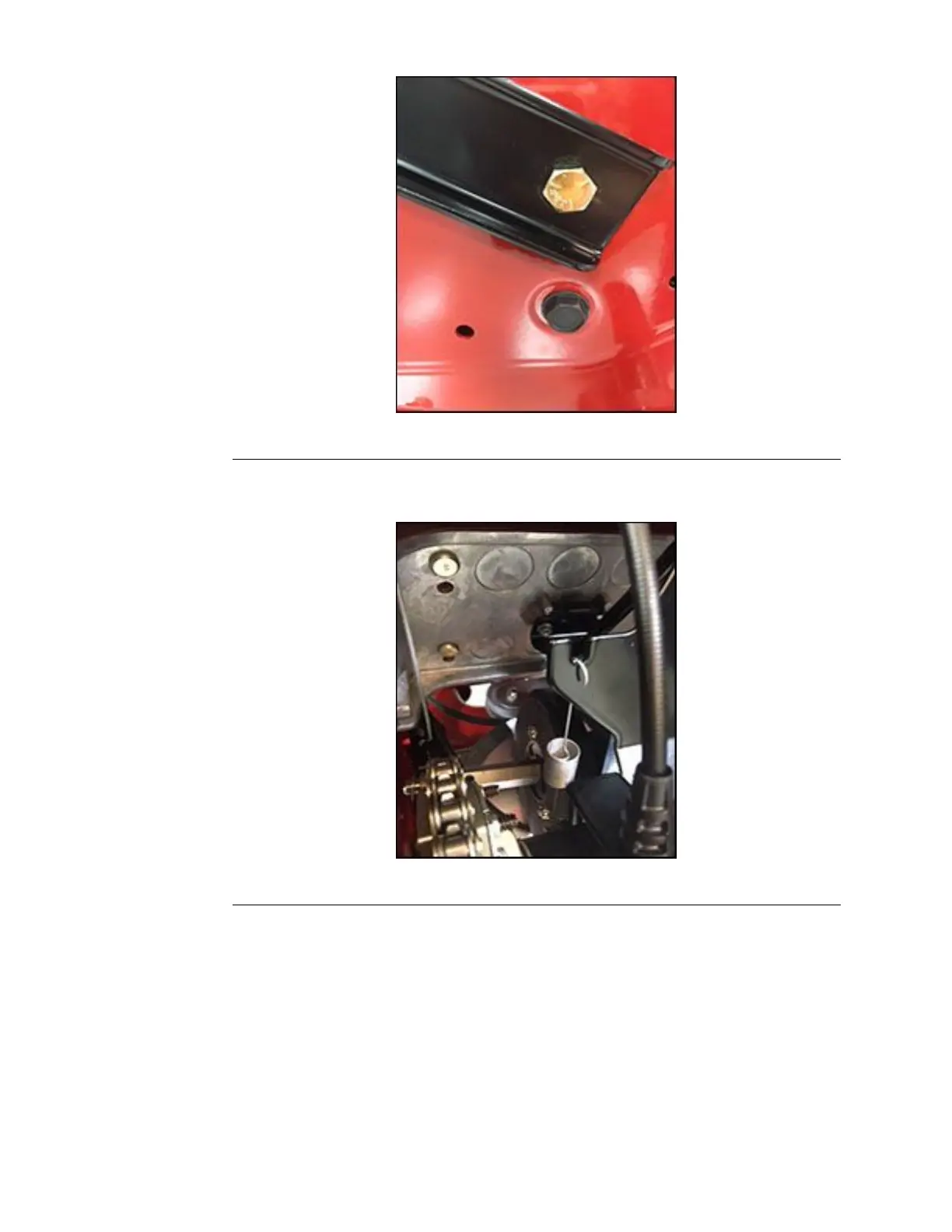

Figure53

7.Removethe2extensionspringsbyunhookingthespringsfromthelower

clutchcollarandhousing.

Figure54

8.Removetheclutchcablesbyrotatingtheshiftcollaruptoreleasetension.

ManeuvertheZ-bendofthecableendoutoftheupperclutchcollar.

WheelClutchTractionDriveSystem:ServiceandRepairs

Page9–6

POWERMAX®HDServiceManual

3424-820RevA
