TractionDriveSystemRemoval(WheelClutchModels)(continued)

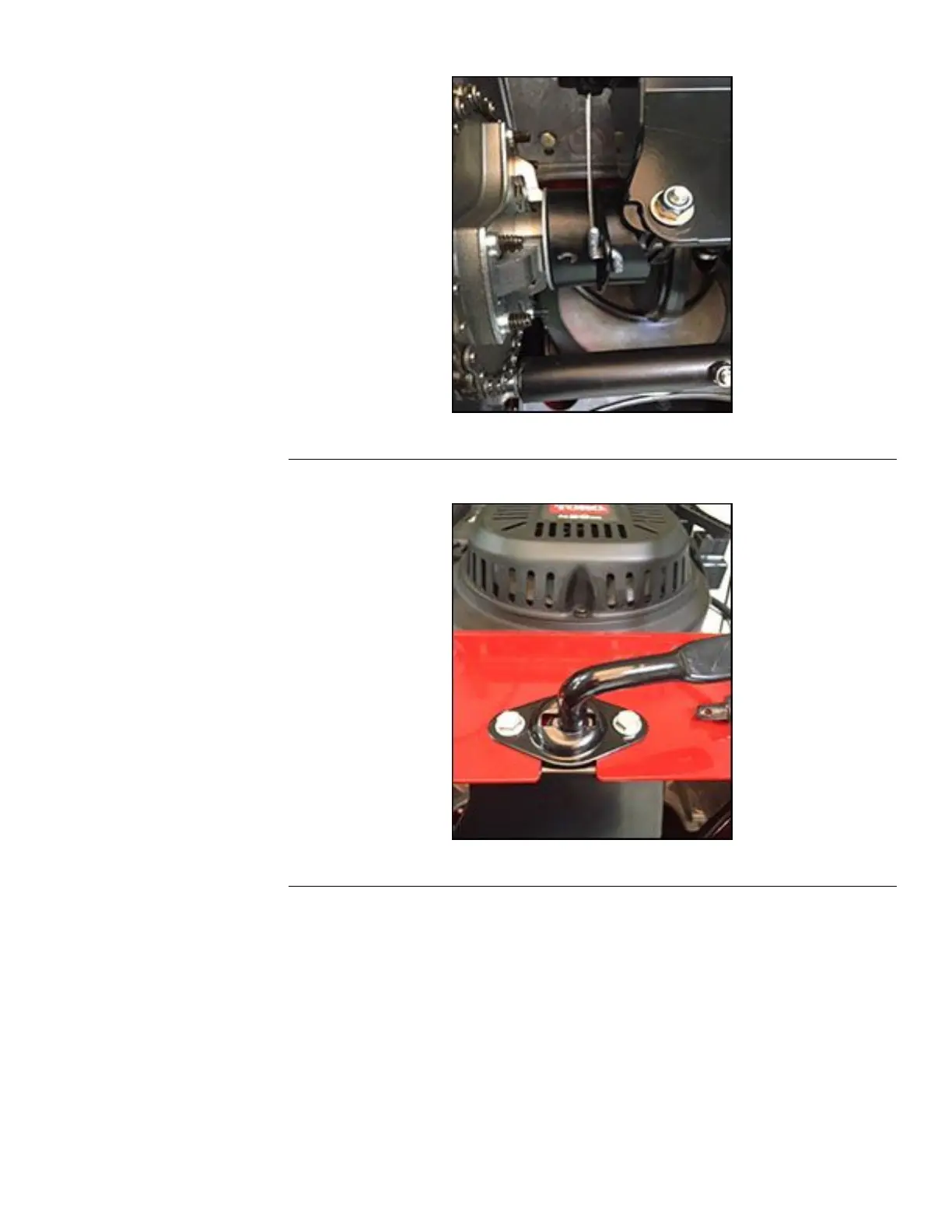

Figure55

9.Removethe2boltsontheendoftheshiftbracefromthehousing.

Figure56

10.Removebothrollerchainsfromthe32–toothgears.Liftthewheelclutch

assemblyfromthetractionunit.

POWERMAX®HDServiceManual

Page9–7

WheelClutchTractionDriveSystem:ServiceandRepairs

3424-820RevA
