TractionDriveSystemRemoval(WheelClutchModels)(continued)

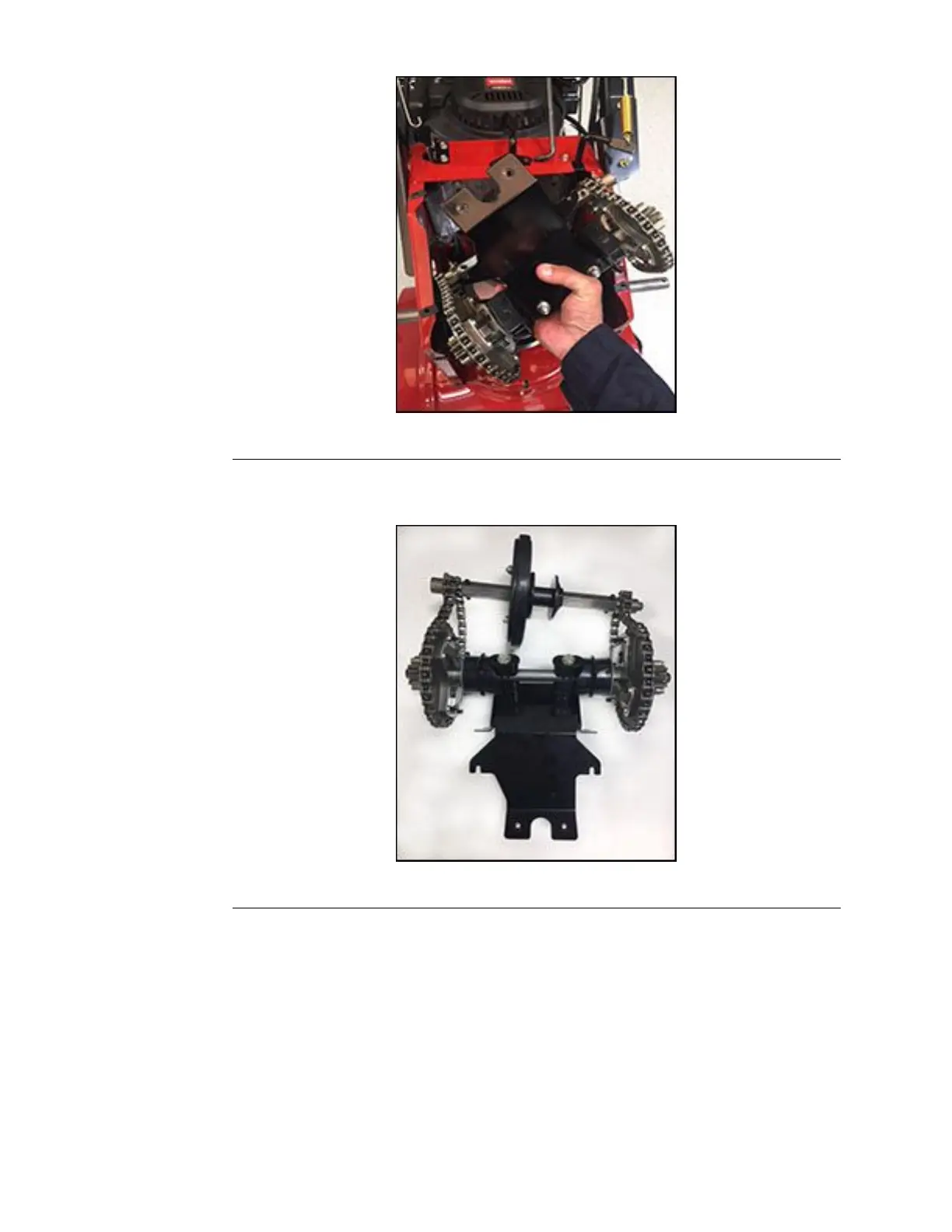

Figure57
Note:Installascrewandwasherontoeachendoftheshafttokeepthe
partsfromslidingoff.
Figure58
11.Removebothboltsoneithersideoftheaxlefromthe44–toothgear.
WheelClutchTractionDriveSystem:ServiceandRepairs
Page9–8
POWERMAX®HDServiceManual
3424-820RevA
