WheelClutchDisassembly(continued)

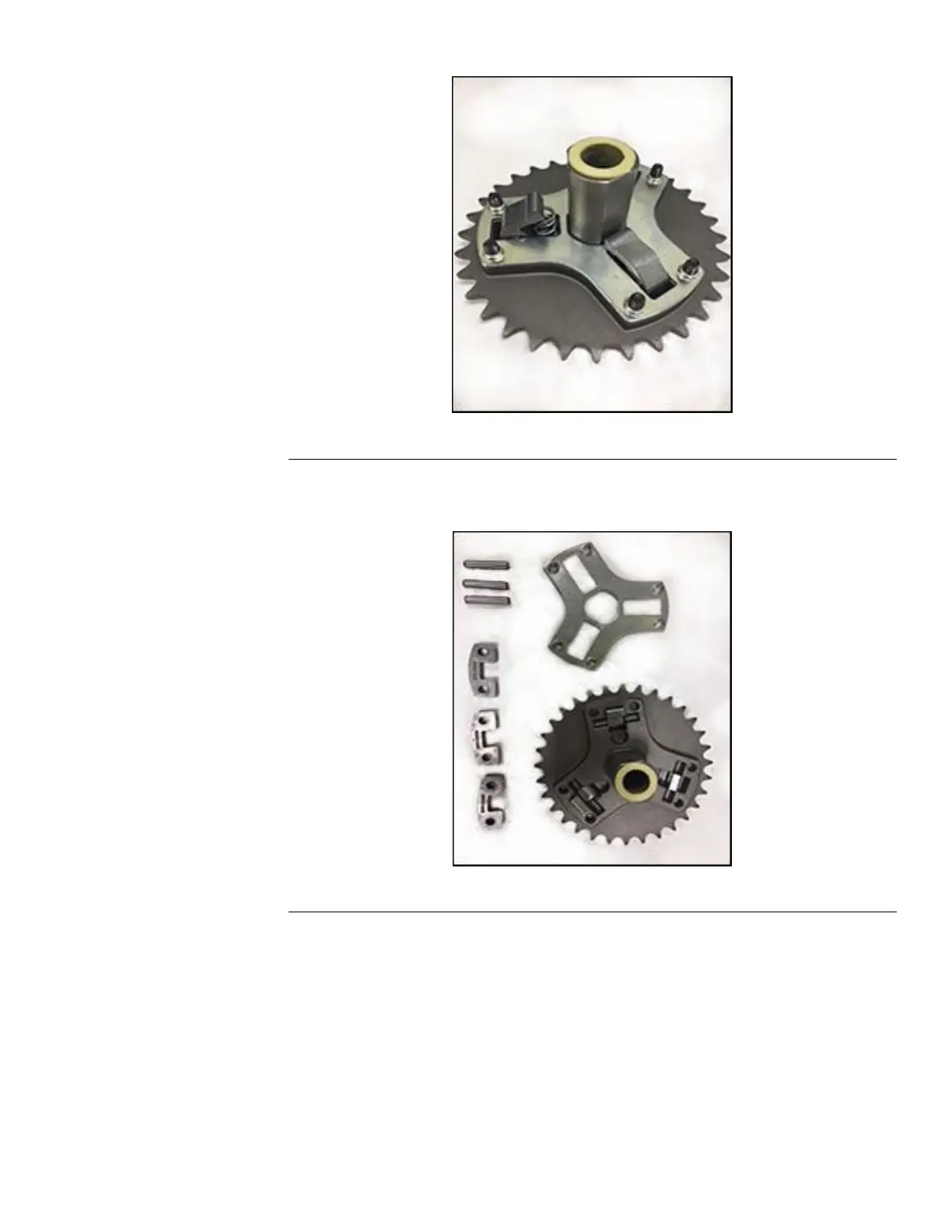

Figure73
8.Removethe6(perside)T-27torxscrewsthatsecurethepawlretainerplate.
9.Removetheretainerplateoffofthesprockethub.
Figure74
10.Removethepawlpinsandpawlsfromthe32–toothsprocket.
11.Repairorreplacedefectivecomponents.
WheelClutchReassembly
Note:ApplyalightcoatofSAE30Woiltointermediateshaftbeforeassembly.
1.Setthe32–toothsprocketonaatsurfaceandinstallthepawls.
2.Withthepawlsfacingupandawayfromthehub,slidetheretainerplate
ontothehub.Makesurethepinsareseatedushandtheretainerplate
sitsushontothegear.
