Toro Ultra Buggy 2500-TS User Manual
4
of 1
of 1 rating
64 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

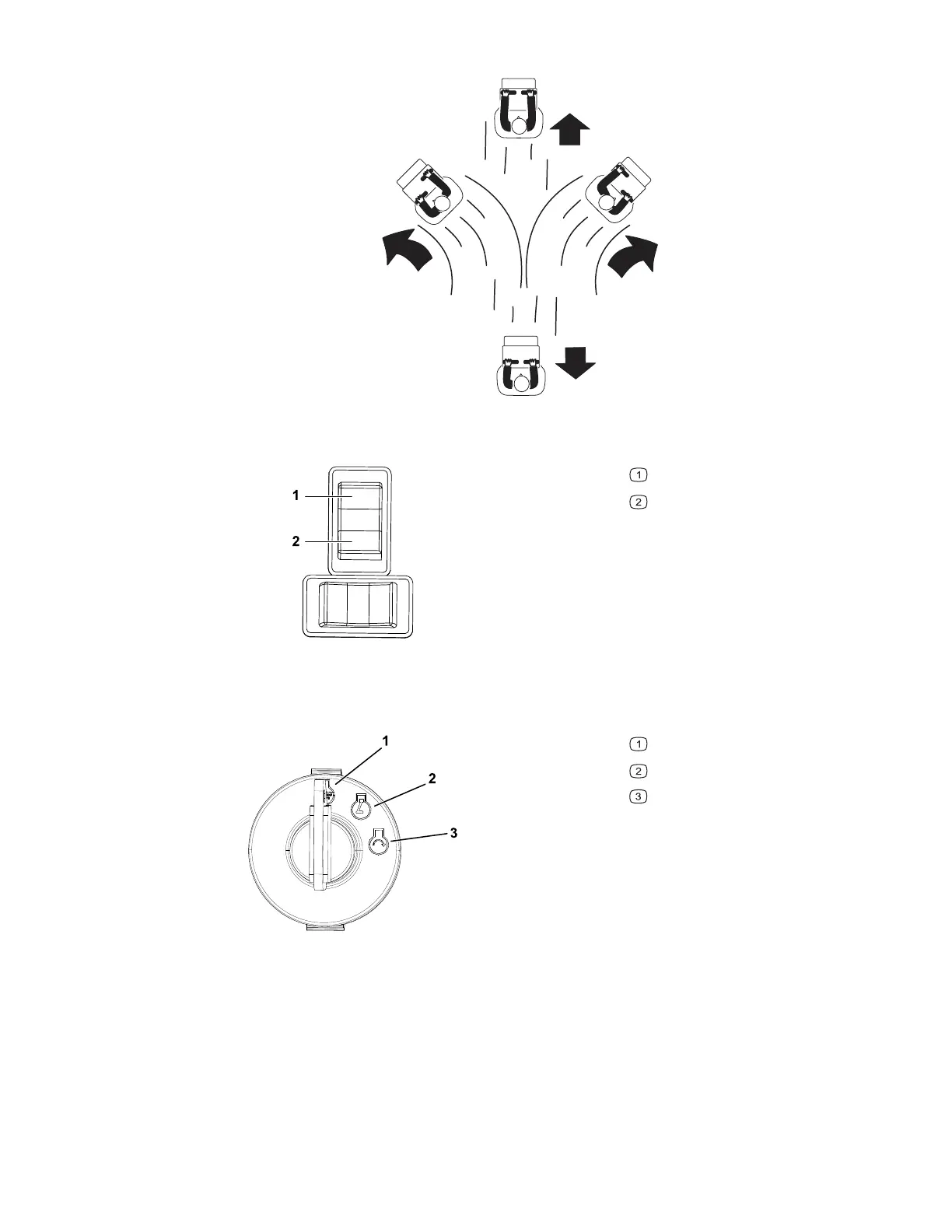

Drive
Controls
G375673
Dump
Controls
G375675
Dump
hopper
Lower
hopper
Key
Switch
G375755
Stop
engine
Run
engine
Start
engine
3462-915A
Page
3–2
Product
Overview:
Controls
12
14
Table of Contents
default chapter
2
Table of Contents
2
Disclaimers and Regulatory Information
3
Chapter 1: Introduction
5
Intended Use
5
Getting Help
5
Manual Conventions
6
Safety Alert Classifications
6
Chapter 2: Safety
7
General Safety
7
Safety and Instructional Decals
7
Chapter 3: Product Overview
12
Controls
12
Choke Control
12
Drive Controls
13
Dump Controls
13
Key Switch
13
Parking Brake
14
Throttle Control
14
Swivel Switch
14
Specifications
14
Attachments/Accessories
15
Chapter 4: Operation
16
Before Operation
16
Before Operation Safety
16
Fuel
17
Performing Daily Maintenance
18
During Operation
18
During Operation Safety
18
Starting the Engine
20
Shutting off the Engine
21
Operator Platform
21
Operating the Hopper
22
After Operation
23
After Operation Safety
23
Removing Debris from the Machine
23
Lowering the Hopper Without Power
24
Raising the Hopper Without Power
26
Haul the Machine
27
Chapter 5: Maintenance
30
Maintenance Safety
30
Recommended Maintenance Schedule
31
Pre-Maintenance Procedures
32
Moving a Non-Functional Machine
32
Lifting the Machine
33
Releasing the Cushion for Rear Access
33
Using the Cylinder Lock
33
Lubrication
35
Greasing the Machine
35
Engine Maintenance
36
Servicing the Air Cleaner
36
Engine Oil Service
37
Replacing the Spark Plug
39
Cleaning the Blower Housing
39
Fuel System Maintenance
40
Replacing the Fuel Filter
40
Draining the Fuel Tank
40
Removing the Fuel Tank
41
Electrical System Maintenance
41
Electrical System Safety
41
Battery Service
41
Replacing a Fuse
44
Drive System Maintenance
44
Track Service
44
Drive Belt
48
Controls Maintenance
50
Adjusting the Motion-Control Levers
50
Brake Maintenance
51
Checking the Parking Brake
51
Adjusting the Parking Brake
51
Hydraulic System Maintenance
52
Hydraulic Drive System
52
Hydraulic Lift and Slew System
55
Checking the Hydraulic Lines
58
Cleaning
59
Removing Debris
59
Chapter 6: Storage
60
Storage Safety
60
Preparing the Machine for Storage over 30 Days
60
Chapter 7: Troubleshooting
62
California Proposition 65 Warning Information
64
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Toro Ultra Buggy 2500-TS and is the answer not in the manual?
Ask a question
