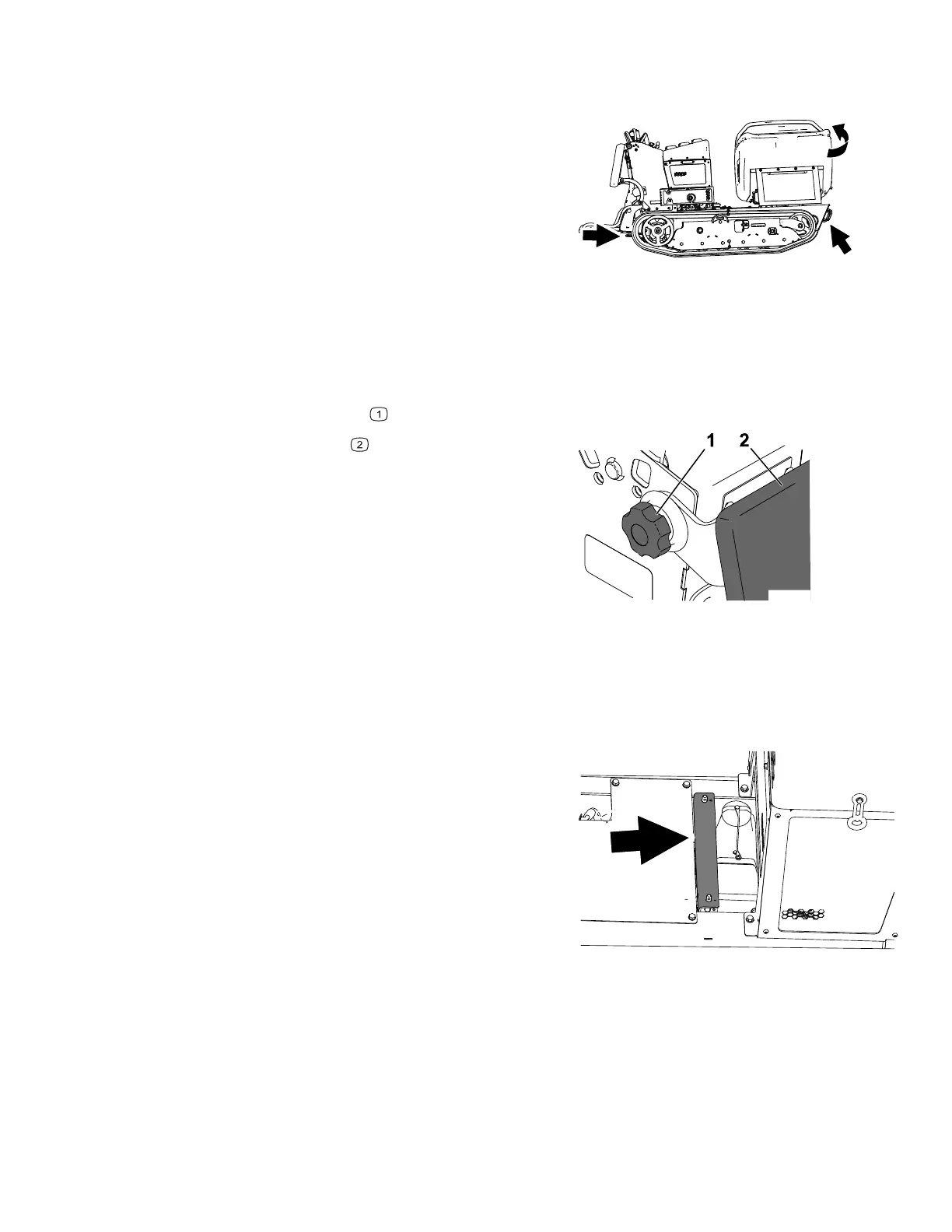

Lifting the Machine
Ensure that the hopper is empty before lifting the machine.
G324717
1. Place the platform in the raised position.
2. Rotate the hopper and hoist the machine using
the lifting points.
Note: Take up the slack in the chain or straps
to properly balance the unit.
Releasing the Cushion for Rear Access
1. Lower the platform.
2. Loosen the twist knobs
on each side of the machine.
g032556
3. Remove the cushion and lower it to the
platform.
4. Perform any maintenance or adjustment on
the machine.
5. Raise the cushion, and slide it onto the pins on
both sides of the machine.
6. Tighten the twist knobs.
Using the Cylinder Lock
Installing the Cylinder Lock
G324733
1. Park the machine on a level surface, move the
motion-control levers to the N
EUTRAL-LOCK
position, engage the parking brake, and fully
raise the hopper.
2. Remove the 2 cotterless pins securing the
cylinder lock to the machine.
3462-915A Page 5–4 Maintenance: Pre-Maintenance Procedures
