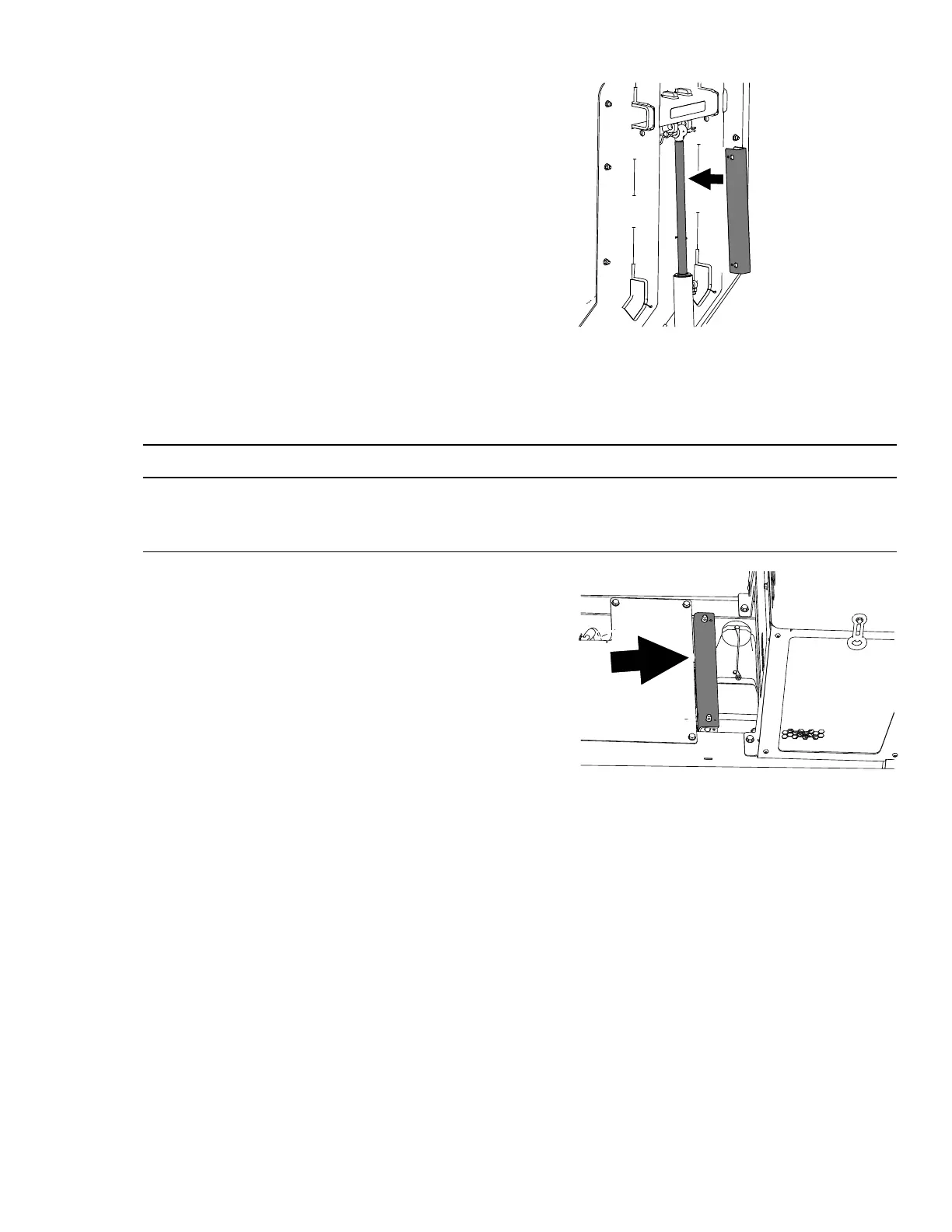

Using the Cylinder Lock (continued)
G324856
3. Slide the cylinder lock over the lift-cylinder rod
and secure with the cotterless pins.
Removing and Storing the Cylinder Lock
IMPORTANT
Remove the cylinder lock from the lift-cylinder rod and fully secure it in the storage
position before operating the machine.
G324733
1. Start the machine.
2. Fully raise the hopper.
3. Shut off the engine.
4. Remove the cotterless pins securing the
cylinder lock.
5. Place the cylinder lock on the posts inside the
machine frame and secure with the cotterless
pins.
6. Lower the hopper.
Maintenance: Pre-Maintenance Procedures Page 5–5 3462-915 A
