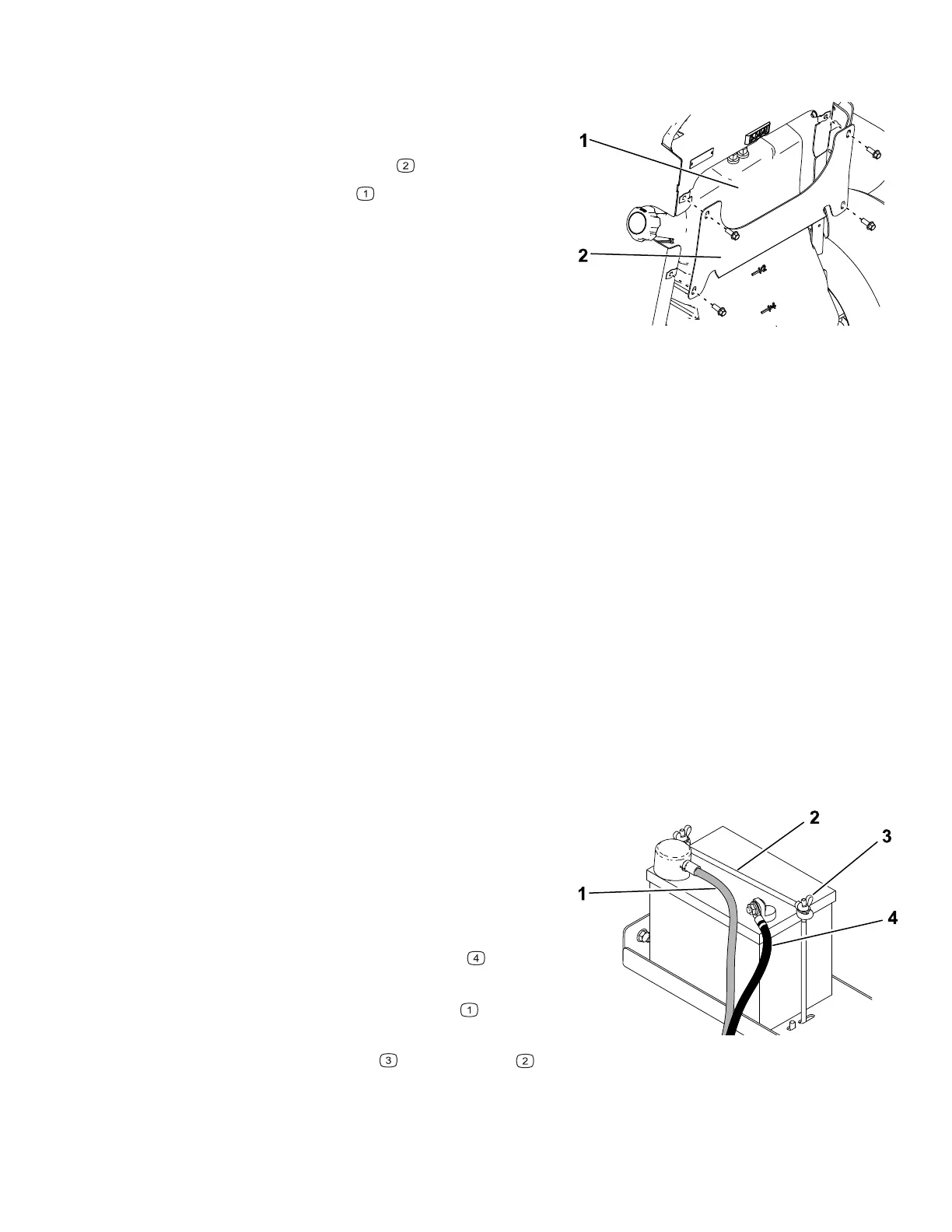

Removing the Fuel Tank
G186223
1. Lower the platform.
2. Release the cushion.
3. Remove the cross bracket
.
4. Remove the fuel tank
and set it on the
operator platform.
Note: Remove the fuel and vent lines from the
top of the tank to move the fuel tank further
from the machine.
Electrical System Maintenance
Electrical System Safety
• Disconnect the battery before repairing the machine. Disconnect the negative terminal
first and the positive last. Connect the positive terminal first and the negative last.
• Charge the battery in an open, well-ventilated area, away from sparks and flames.
Unplug the charger before connecting or disconnecting the battery. Wear protective
clothing and use insulated tools.
• Battery acid is poisonous and can cause burns. Avoid contact with skin, eyes, and
clothing. Protect your face, eyes, and clothing when working with a battery.
• Battery gases can explode. Keep cigarettes, sparks, and flames away from the battery.
Battery Service
Removing the Battery
g185906
1. Park the machine on a level surface, move the
motion-control levers to the N
EUTRAL-LOCK
position, engage the parking brake, and lower
the hopper.
2. Shut off the engine, and remove the key. Allow
the engine to cool.
3. Remove the negative battery cable
from the
battery.
4. Remove the positive battery cable
from the
battery.
5. Remove the 2 wing nuts
, securing rod ,
and the battery.
3462-915A Page 5–12 Maintenance: Fuel System Maintenance
