Hydraulic Lift and Slew System (continued)
G186042
1. Park the machine on a level surface, move the
motion-control levers to the N
EUTRAL-LOCK
position, engage the parking brake, raise the
hopper, and install the cylinder lock.
2. Shut off the engine, and remove the key. Allow
the engine to cool.

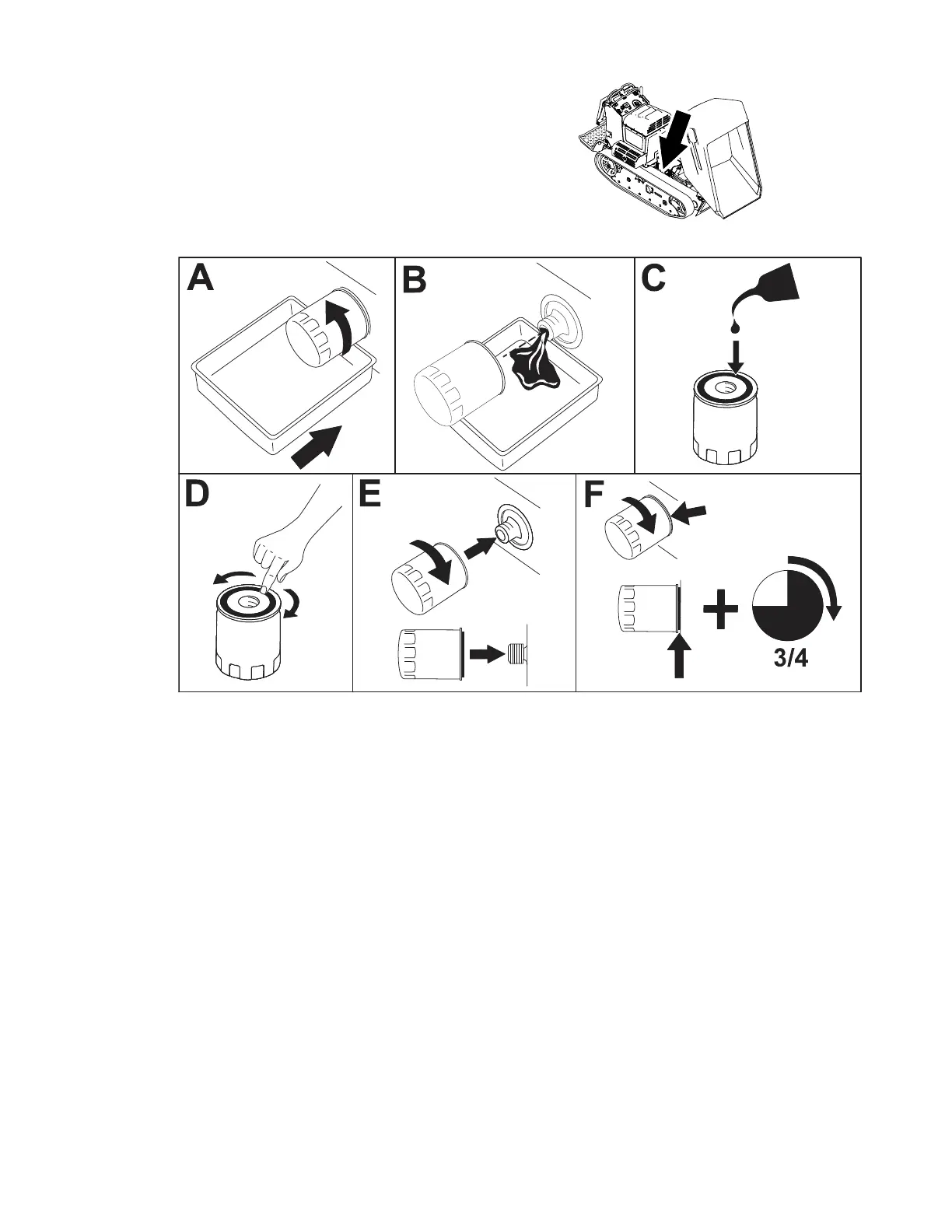

3. Replace the filter.
G376169
4. Start the engine and let it run for about 2 minutes to purge air from the system.
5. Shut off the engine and check for leaks.
6. Check the fluid level in the reservoir tank.
Note: Do not overfill the reservoir tank.
7. Remove the cylinder lock and lower the hopper.
Checking the Hydraulic Lines
Check the hydraulic lines for leaks, loose fittings, kinked lines, loose mounting supports,
wear, and deterioration. Make necessary repairs before operating.
Maintenance: Hydraulic System Maintenance Page 5–29 3462-915 A
