Workman GTX Electric Lithium
Page 3B -- 52
Electrical System

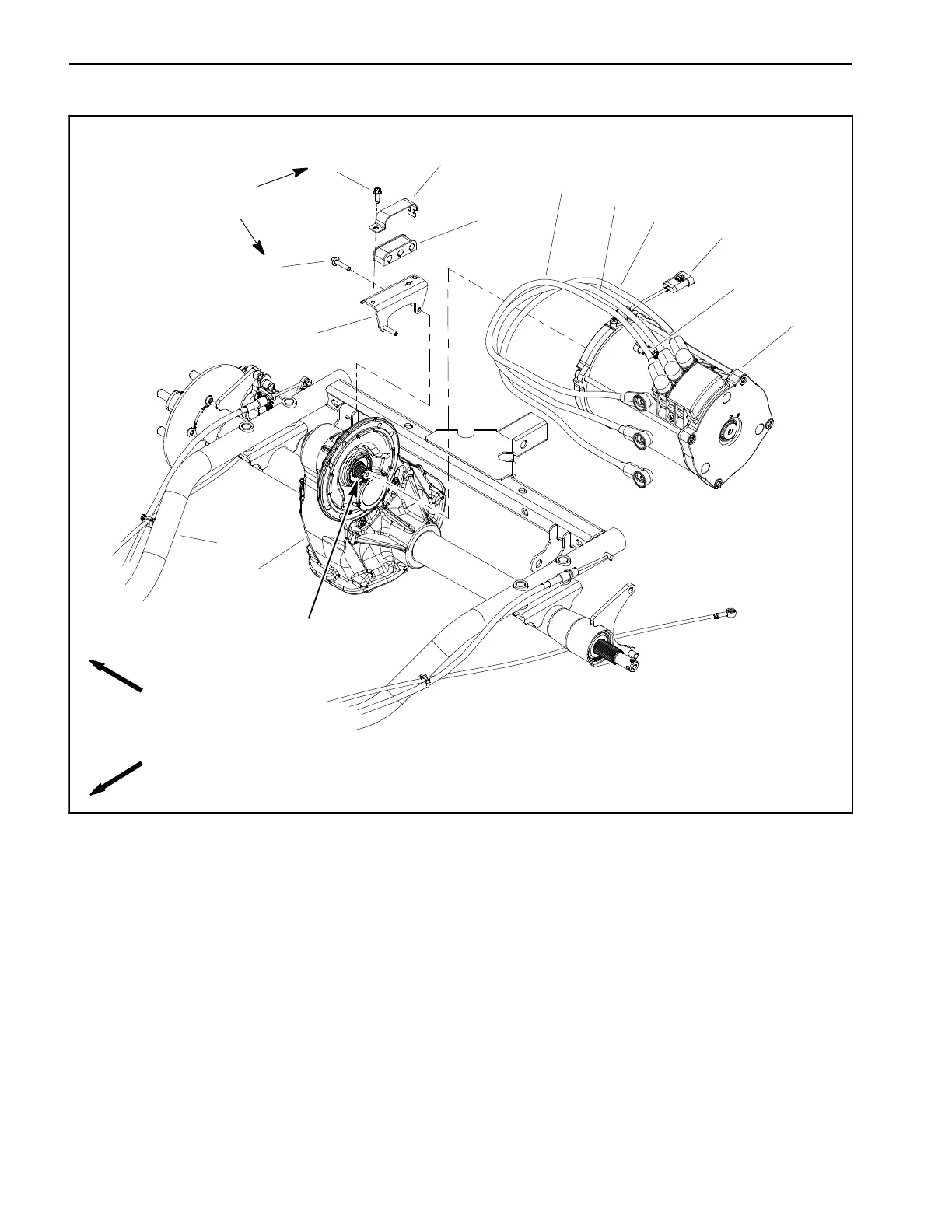

Traction Motor
1. Swing arm
2. Transaxle assembly
3. Traction motor
4. Motor thermistor connector
5. Motor encoder connector
6. Cable (motor W to controller M1)
7. Cable (motor V to controller M2)
8. Cable (motor U to controller M3)
9. Flange head screw (6 used)
10. Cable bracket
11. Washer head screw
12. Isolator retainer
13. Isolator
Figure 55
FRONT
RIGHT
2
3
6
8
9
10
1
5
7
4
12
13
11
90 to 110 in--lb
(10.2 to 12.4 N--m)
Antiseize
Lubricant
