Workman GTX Electric
Page 3A -- 20
Electrical System
USB Charge Port
TheUSBchargeportcanbeusedtochargeorpower
electrical devices that use a USB port. The charge port
has a 5 VDC output and is mounted to the dash (Fig. 27).
Ifthevehiclewireharnessistobedisconnectedfromthe
charge port, note the wire harness connections at the
charge port for assembly purposes. T he white wire har-
ness lead should be connected to the positive (+) termi-
nal on the charge port and the black wire harness lead
should be connected to the negative (--) terminal on the
charge port (Fig. 28).

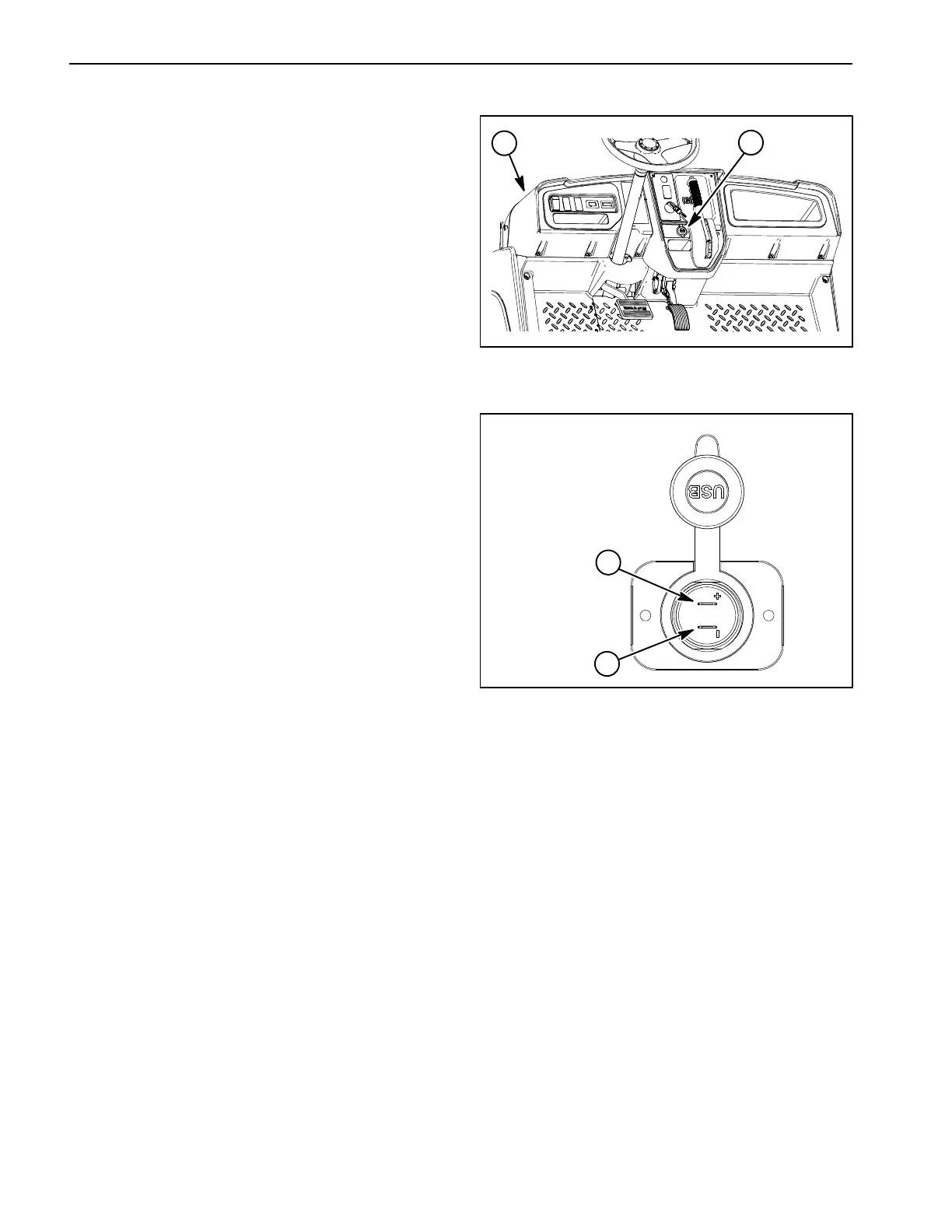

Figure 27
2
1
1. Dash panel 2. USB charge port
1. Positive (+) terminal 2. Negative (--) terminal
Figure 28
2
1
WIRE HARNESS
USB CHARGE PORT
CONNECTIONS
